Detailed Information - Order Form
 HeatSync® NAS-8x 2.5 Series Order Form
Faceplate Color

Black case with Black faceplate

Black case with Silver faceplate
The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Black case with Black faceplate
Black case with Silver faceplate
Rack Mount

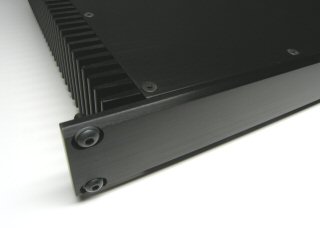

2U Rack Mount Faceplate

(1U case shown)
The one-piece rack mount faceplate incorporates rack mounting into the faceplate for a seamless look. The overall width of faceplate is 19". Oval mounting holes are centered at 18.312". Faceplate height is 3.50" (2U).
No rack mounting
With one-piece rack mount faceplate - add $75
Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet


Enhance the appearance of your case with these machined billet aluminum case feet.



With Standard Rubber feet

With Black Aluminum Case Feet - add $30
With Silver Aluminum Case Feet - add $30

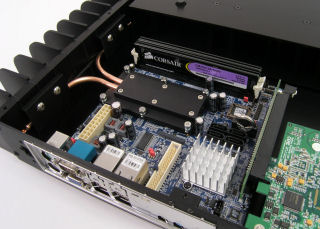

HeatSync® Cooling System

HeatSync® Cooling System
This HeatSync® Cooling system is required with the mini-ITX board. With the HeatSync® Cooling system installed, heat from the processor is transferred into the heatsink case for dissipation to the outside air. System for the SN18000G includes mounting base for the processor and chipset.

Note: We recommend the SN1800G because it only consumes 28 watts and the HeatSync Cooling System cools both the main processor and chipset.

Includes:

  • Copper mounting base for processor
  • Two pre-bent heat pipes
  • Two aluminum clamping plates for heatsink
  • Required installation hardware



No HeatSync® Cooling System

With HeatSync® Cooling System for VIA EPIA SN1800G motherboard- add $120

With HeatSync® Cooling System for VIA EPIA EX1500G motherboard- add $120



Shipping and Ordering Information

Please read:

Atech Fabrication Warranty, Terms of Sale, and Refund Policy



When will the case ship?

These cases are normally in stock and will ship with in 1-2 weeks depending on other options and color choice. If we are out of stock, the typical lead time is 4-6 weeks.



Quantity Discounts?

Discounts are available on orders of five or more cases. Contact Atech Fabrication for more information.



HeatSync® NAS-8x 2.5 Series Case ... $569 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.





Case Accessories
120 Watt DC-DC Power Supply



120 Watt DC-DC Power Supply




The picoPSU-120 is the smallest snap-in 12V ATX dc-dc power supply. Plugs directly into a 20-pin ATX MB connector. 120 watts maximum output. 95% efficiency. To operate, an external AC power adapter is required, see below.

Note: Power input cable is modified for a 6-pin connector to use with our heavy-duty AC power adapter below.

  • 12 volts input
  • 6-pin power input connector
  • 120 watts output
  • 7A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V

$54.95 each
12 Volt AC Power Adapter

High Performance AC power adapter. Totally fanless with no overload fan or vent slots, completely sealed housing. High efficiency design allows adapter to remain cool under load. 15 Amp peak load rating starts up power hungry hard drives.
  • 90 to 264 VAC input
  • 12 Volts Output
  • 120 Watts (rated)
  • 9 Amps Continuous, 15 Amp Peak
  • 6-pin Connector

$105.00 each

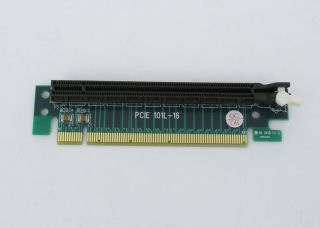

PCI Express Riser Card
Use this angled riser to install a PCI Express x16, x8, x4, or x1 card into the PCIe slot on motherboard. Height is 1.05".



$13.50

Serial ATA Power Adapter Cable
Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives. Four power adapter cables are required to run eight drives in the NAS-8x Case.



$4.50 each  (four required)



IDE Power Cable Splitter

Single IDE power cable to dual IDE power cable splitter. Three IDE splitters are required to run eight drives in the NAS-8x Case.



$3.00 each  (three required)
