A-Tech 4000 EX Order Form
Detailed Information - Order Form
Standard features:
  • 6061-T6 heat-treated aircraft grade aluminum chassis and faceplate
  • Faceplate machined for either slot or tray load DVD drive
  • Machined aluminum power button with switch and wiring
  • Machined aluminum eject button
  • Power status LED with wiring
  • Mounting bracket for up to four hard drives
  • DVD drive mounting brackets with cable routing guides
  • Fits full-size ATX power supply, compatible with fanless PS
  • 92mm fan grill with screws (fan not included)
  • Removable Cable Breakout Panel
  • Stainless steel stand-offs to fit full-size and extended ATX motherboards
  • Plated I/O slot cover plates
  • Low-profile rubber feet, optional billet aluminum feet
  • Hardware kit with all screws needed for installation
  • Complete set of hex keys to work on your case
  • Fine hand-sanded finish
  • Standard black anodized finish on case and brackets
  • Faceplate, buttons and feet can be either black or silver anodized finish
  • Width= 17.50", Depth= 13.63", Height= 6.25"  (less feet)

Basic Case Faceplate Styles
Full-size slot-load

Full-size slot-load


Faceplate is machined to fit a full-size slot-load DVD drive. This drive takes up more space inside the case than a slim-line drive below. Eject button is located in the lower right.

Compatible drives:

  • Pioneer 120S
  • Plextor PX-716AL
Slim-line slot-load

Slim-line slot-load


Faceplate is machined to fit a slim-line slot-load DVD drive. This type of drive takes up less space inside the case and allows for larger CPU heatsinks and fans. Eject button is located in the lower left. Includes the special drive mounting brackets and hardware.

Compatible Slim-line DVD/Blu-ray drives:

  • Panasonic Blu-ray UJ-225
  • Panasonic UJ-875
  • Panasonic UJ-85J
  • Panasonic UJ-850
  • Panasonic UJ-845-B
  • Panasonic UJ-825-B
  • Panasonic CW-8123
  • Panasonic CW-8124-B
  • Panasonic SR-8178
  • Pioneer DVR-K06
  • Pioneer DVR-K05
  • Pioneer DVR-K04L

Note: Newer models not listed from the same manufacturer should also fit the same.
Tray-load faceplate
Faceplate is machined to match the opening required for a tray-load DVD drive. Included is a matching aluminum DVD tray cover plate to attach to the front of your drive tray. The tray cover plate is finished to match the rest of case for a seamless appearance. Maximum tray door size is .875" x 5.438".

Select Faceplate Style:

Full-size Slot-load

Slim-line Slot-load - add $25

Tray Load - add $25

Case Finish
Faceplate Color

Black case with black faceplate

(3000 case shown)

Black case with silver faceplate

(6000 case shown)
The aluminum case and all aluminum brackets are treated by a anodizing process for corrosion protection and a long lasting uniform finish.

The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.








Black case with Black faceplate
Black case with Silver faceplate
Laser Etched Logo Graphics


Faceplate is laser etched with custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results.  Approximate pricing:
  • Clear lettering on black case ($150)
  • Colored lettering on silver or black case ($175)

Contact A-Tech for price quote. Normally you can run several faceplates for the same minimum charge or a small nominal fee per plate. Different types of cases can be combined on order to reduce total cost.

No Logo
With custom laser etched logo graphics

Face Plate Options
Touch Screen Mounting

Touch Screen Faceplate

(HeatSync 6000 case shown)



Important Notes:

  • A slot-load slim-line DVD drive must be used with touch screen option. Because the drive is repositioned to the right, a full-size DVD drive will interfere with power supply.

  • Hard drive capacity is reduced to 3 drives.

  • Because of the display depth, an extended dual processor motherboard can not be installed.
Faceplate is machined with a cutout to fit a Xenarc 700TS LCD Touch Screen. The display can be used for operator input, previewing movies, or as a windows desktop. Push button controls turn display on/off and for control brightness, contrast and display position settings. Touch screen display not included.

Display Details



  • Touch Screen style faceplate
  • Right-side power button and LED
  • Machined push button monitor controls
  • Monitor LED pin hole
  • Mounting hardware



note: VFD Display and DVD Control Buttons cannot be combined with the Touch Screen option
No Display Mounting
With Touch Screen Mounting - add $75
Xenarc Touch Screen Display

Xenarc Touch Screen Display

A-Tech Fabrication is now authorized by Xenarc to install their touch screen displays into our cases. The display will still have the full warranty from Xenarc. It will also include a special power cable to allow you to connect it to the power supply inside the case. The case will be shipped with the display installed into the faceplate. You must also purchase the touch screen mounting option above.

Includes:

  • 700TSV Display
  • VGA/composite video cable
  • USB input cable
  • AC power adapter
  • 12v power supply adapter cable
No Xenarc Display
With Xenarc Display - add $400
VFD or LCD Mounting

VFD with blue filter and blue power LED
Faceplate is machined with a cutout to fit a Matrix Orbital 4x20 display. Can be used with or without tinted filters. Includes mounting hardware and spacers. Display not included.

Supported models:

  • VK204-25 (serial)
  • VK204-24-USB
  • LK204-25 (GW, WB, IY)
With VFD/LCD Mounting - add $35

note: VFD/LCD display mounting cannot be combined Touch Screen display option.
IR Receiver Mounting

UIRT receiver installed
Faceplate is machined with a cutout to fit a IRman,  USB-UIRT or Microsoft infrared receiver. Includes mounting shelf, hardware, and adhesive strip. IR receiver not included.

No IR receiver mounting
With IRman mounting - add $25
With USB-UIRT mounting - add $25

With Microsoft IR mounting - add $25
USB Port

USB Port
Face plate is machined with cutout to fit a USB 2.0 port adapter. Internal cable plugs into the USB header on your motherboard. Standard port location is in the lower right corner. We can also add more ports if needed, please contact us for more information.

NOTE: When combined with the PowerMate option, the location of the USB port will be in the space between the reset button and the DVD control buttons.
No USB Port
With USB Port - add $25

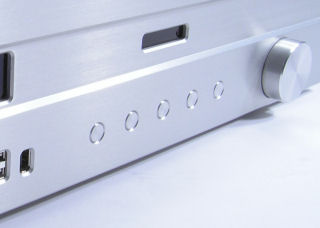

DVD Push Button Controls

Inside of case shows PowerMate, UIRT,  DVD buttons, and VFD display.

Face plate is machined with cutouts to fit five custom machined push buttons. These buttons can be programmed to control software such as a DVD player. Button assembly comes pre-wired with header connector. This connector plugs into to the keypad connector on the Matrix Orbital displays such as the VK204-25 or similar displays with a keypad input connector. Includes five (5) machined aluminum buttons, five (5) momentary switches, wire harness, mounting rail and hardware.

note: DVD Push Button Controls cannot be combined Touch Screen option
No DVD Push Button Controls
With DVD Push Button Controls - add $75
PowerMate Control Knob Mounting

PowerMate Control Knob


Face plate is machined with a special cutout and mount to fit a  Griffin Technology PowerMate controller and input device (not included). This knob can be programmed for a number of tasks such as volume control and scrolling through menus. PowerMate knob not included. The PowerMate from Griffin is available in black or silver to match the case.

Note: Griffin is not currently selling the knob in black. See the case accessories section below for our re-finishing service for black PowerMate knobs.
No PowerMate Mounting
With PowerMate Mounting - add $45
Reset Button

Reset Button


Face plate is machined with a cutout to fit a machined aluminum reset button. Includes machined aluminum button, momentary switch and wire harness.
No Reset Button
With Reset Button - add $25
Power LED
Standard case comes with a basic green power LED. A optional blue LED is available for a different look.
With Green LED
With Blue LED - add $5
Machined Billet Aluminum Case Feet
Enhance the appearance of your case with these machined billet aluminum case feet. The standard rubber feet fit inside these aluminum feet and can be upgraded later.



With Standard Rubber feet

With Black Aluminum Case Feet - add $30
With Silver Aluminum Case Feet - add $30

Shipping and Ordering Information

These cases are custom made to your order. You may add additional options after work on your case has begun, however some changes may affect shipping time. If there is a custom option you would like to have that is not listed above, please contact us for a special quote. Options can also be added to your case at a later date, you only pay for the option plus a small refinishing fee.

Please read:

Atech Fabrication Warranty, Terms of Sale, and Refund Policy



When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.



Quantity Discounts?

Discounts are available on orders of five or more cases. Contact Atech Fabrication for more information.



A-Tech 4000 EX Heatsink Case .... $535 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

A-Tech 4000 EX Accessories

PowerMate Knob Re-Finishing

Years ago, the Griffin Technology PowerMate was only available in silver. At that time we offered re-finishing of the knobs in black. Then Griffin started selling them in black. As of 2008, they are only available in silver and we our offering our re-finishing service again.

Service includes:

  • Remove plastic insert
  • Strip clear anodize
  • Re-polish outside surfaces
  • Anodize black
  • Bond plastic insert

Please ship your knob to address shown here
$20.00
Slim-line DVD Power Extension Cable
Due to the design of the door mounted DVD drive, a longer power cable is needed. Cable is 14" long and has a 4-pin 5.25" power supply connector on one end and a floppy drive connector on the other. The floppy drive connector is used on most slim-line IDE adapters.

$7.50
Slim-line Drive IDE/Power Adapter
This adapter allows a standard 40-pin IDE data cable to connect from the motherboard to a slim-line DVD drive. The back of the adapter also has a connector for a floppy power and CD-out. Includes mounting screws.

$8.50
Black Anodized Aluminum Slot Covers
These custom made black aluminum slot covers will dress up your HTPC case. Blends in perfectly with our black cases. Each cover is precision laser-cut, formed, and anodized.
$7.50 set of four (4)
DVD Power Extension Cable
Due to the design of the door mounted DVD drive, a longer power cable is needed. This cable is 14" and has a 4-pin 5.25" power supply connector on each end. For use with a full-size DVD drive.

$4.00
Ultra-Slim IDE Data Cable for DVD drive
A longer IDE data cable may be needed to reach the door mounted DVD drive. This ultra-slim cable is very compact and easy to bend and route though the case.
  • Ultra-Slim to save space and promote airflow
  • Extra flexible for easy bending & twisting
  • 23" length single device cable
  • Ultra DMA (ATA 133/100)
  • High quality cable and connectors
  • Black nylon mesh sleeve
$18.00
USB to MB Header Adapter
This adapter allows you to connect internal USB devices (VFD, IR, PowerMate, Touch-Screen) directly to a USB header on the motherboard. Eliminates the need to route these cables externally. Each adapter has two ports.
$15.00 each
