HeatSync 6000 standard features:
  • Aircraft grade 6061-T6 heat-treated aluminum chassis and faceplate
  • Faceplate machined for either slot or tray load full-size DVD drive
  • Optional slim-line slot-load DVD drive mounting
  • Mounting for full-size ATX motherboard
  • Fits full-size ATX power supply, compatible with fanless PS
  • Mounting bracket for one 3.5" hard drive
  • Optional 2nd 3.5" hard drive mount (slim-line DVD only)
  • Power button with switch and wiring harness
  • Power status LED with wiring harness
  • Eject button for DVD drive
  • Removable accessory break-out panel (cables, switches, etc.)
  • 92mm fan grill with screws (fan not included)
  • Hardware kit with all screws needed for assembly
  • Set of hex keys to work on your case
  • Black anodized case with either silver or black faceplate
  • Width= 17.50", Depth= 11.50", Height= 6.25"  (less feet)

Basic Case Faceplate Styles
Full-size slot-load

Full-size slot-load (3000 shown)


Faceplate is machined to fit a full-size slot-load DVD drive. This drive takes up more space inside the case than a slim-line drive below. Eject button is located in the lower right.

Compatible drives:

  • Pioneer 120S
  • Plextor PX-716AL
Slim-line slot-load

Slim-line slot-load
Faceplate is machined to fit a slim-line slot-load DVD drive. This type of drive takes up less space inside the case and allows for better airflow through top cover. Eject button is located in the lower left. Includes drive adapter, mounting brackets, and hardware.

Compatible Slim-line DVD/Blu-ray drives:

  • Panasonic Blu-ray UJ-225
  • Panasonic UJ-875
  • Panasonic UJ-85J
  • Panasonic UJ-850
  • Panasonic UJ-845-B
  • Panasonic UJ-825-B
  • Panasonic CW-8123
  • Panasonic CW-8124-B
  • Panasonic SR-8178
  • Pioneer DVR-K06
  • Pioneer DVR-K05
  • Pioneer DVR-K04L

Note: Newer models not listed from the same manufacturer should also fit the same.
Tray-load faceplate

 Tray-load (3000 shown)
Faceplate is machined to match the opening required for a tray-load DVD drive. Included is a matching aluminum DVD tray cover plate to attach to the front of your drive tray. The tray cover plate is finished to match the rest of case for a seamless appearance. Maximum tray door size is .875" x 5.438".

Select Faceplate Style:

Full-size Slot-load

Slim-line Slot-load - add $25

Tray Load - add $25

Case Finish
Faceplate Color

Silver faceplate with black case



Black Faceplate with black case
Aluminum case and all aluminum brackets are treated by a anodizing process for corrosion protection and long lasting uniform finish. The rear chassis and internal  parts have a black finish, the faceplate can be either black or silver.
Black case with Black faceplate
Black case with Silver faceplate
Laser Etched Logo Graphics


Faceplate is laser etched with custom graphics and lettering during the anodizing process. Graphics can include company logo, symbols, port labels, button labels, system specs, etc. Artwork provided should be in a vector format for best results.  We can create simple artwork for you or send us your custom designs. Approximate pricing for up to ten cases with same artwork:
  • Clear lettering on black case ($175)
  • Colored lettering on silver or black case ($200)

Pricing: Up to ten cases can be run for the same minimum charge or a small nominal fee per plate. Contact A-Tech for price quote.


No graphics or lettering
With custom graphics and lettering

Add-on Options
Rack Mounting
Case can be provided with a one-piece 19" faceplate for rack mounting. This plate is 6.25" high by 19" wide. An optional 2.50" filler panel must be used for a full 5U (8.75") combined height installation. This faceplate can be used without a filler panel in a open rack. The screw holes are located to place case at the bottom of a 4U (7.00") space. A minimum of 2.5" space above the case is required for cooling airflow, additional space is suggested for hotter running systems.



No Rack Mounting

With 19" Rack Mount Faceplate - add $80
Filler Panel
Use this 2.50" high by 19" wide filler panel to increase the combined height of rack mounted case to 5U (8.75"). Filler panel is made from 1/8" thick 6061-T6 aluminum. Panel is surface finished and anodized to match the faceplate.



No Filler Panel

With 2.5" Filler Panel - add $40
Secondary Hard Drive Mount
This option is only available when a slim-line DVD drive is selected. Adds a second hard drive mounted below the DVD drive. Uses EAR isolation dampers to reduce vibration noise. Includes mounting brackets and hardware.



No Secondary Hard Drive Mount

With Secondary Hard Drive Mount - add $25
Machined Billet Aluminum Case Feet
Enhance the appearance of your case with these machined billet aluminum case feet. The standard rubber feet fit inside these aluminum feet and can be upgraded later.



With Standard Rubber feet

With Black Aluminum Case Feet - add $30
With Silver Aluminum Case Feet - add $30

Face Plate Options
Touch Screen Mounting

Touch Screen Mounting



Important Notes:

  • A slot-load slim-line DVD drive must be used with touch screen option. Because the drive is repositioned to the right, a full-size DVD drive will interfere with power supply.

Faceplate is machined with a cutout to fit a Xenarc 700TS LCD Touch Screen. The display can be used for operator input, previewing movies, or as a windows desktop. Push button controls turn display on/off and for control brightness, contrast and display position settings. Touch screen display not included.

Display Details

  • Touch Screen style faceplate
  • Right-side power button and LED
  • Machined push button monitor controls
  • Monitor LED pin hole
  • Mounting hardware

note: VFD Display and DVD Control Buttons cannot be combined with the Touch Screen option
No Touch Screen Mounting
With Touch Screen Mounting - add $75
Xenarc Touch Screen Display

Xenarc Touch Screen Display

A-Tech Fabrication is now authorized by Xenarc to install their touch screen displays into our cases. The display will still have the full warranty from Xenarc. It will also include a special power cable to allow you to connect it to the power supply inside the case. The case will be shipped with the display installed into the faceplate. You must also purchase the touch screen mounting option above.

Includes:

  • 700TSV Display
  • VGA/composite video cable
  • USB input cable
  • 12v power supply adapter cable
No Xenarc Display
With Xenarc Display - add $400
VFD or LCD Mounting

VFD with blue filter and blue power LED
Faceplate is machined with a cutout to fit a Matrix Orbital 4x20 display. Can be used with or without tinted filters. Includes mounting hardware and spacers. Display not included.

Supported models:

  • VK204-25 (serial)
  • VK204-24-USB
  • LK204-25 (GW, WB, IY)
With VFD/LCD Mounting - add $35

note: VFD/LCD display mounting cannot be combined with Touch Screen display option.
IR Receiver Mounting

UIRT receiver cut-out shown
Faceplate is machined with a cutout to fit a Infrared receiver for remotely operating the system. The internal mounting shelf will fit a IRman,  USB-UIRT, Asus DH Remote, or Microsoft infrared receiver. Includes tinted lens,  mounting shelf, hardware, and adhesive strip. IR receiver and software not included.

No IR receiver mounting
With IRman mounting - add $30
With USB-UIRT mounting - add $30

With Microsoft IR mounting - add $30

With Asus DH Remote mounting - add $30
USB Port

USB Port
Face plate is machined with cutout to fit a USB 2.0 port adapter. Internal cable plugs into the USB header on your motherboard. Standard port location is in the lower right corner. We can also add more ports if needed, please contact us for more information.

NOTE: When combined with the PowerMate option, the location of the USB port will be in the space between the reset button and the DVD control buttons.
No USB Port
With USB Port - add $25
DVD Push Button Controls

Inside of case shows PowerMate, UIRT,  DVD buttons, and VFD display.

Face plate is machined with cutouts to fit five custom machined push buttons. These buttons can be programmed to control software such as a DVD player. Button assembly comes pre-wired with header connector. This connector plugs into to the keypad connector on the Matrix Orbital displays such as the VK204-25 or similar displays with a keypad input connector. Includes five (5) machined aluminum buttons, five (5) momentary switches, wire harness, mounting rail and hardware.

note: DVD Push Button Controls cannot be combined Touch Screen option
No DVD Push Button Controls
With DVD Push Button Controls - add $75
PowerMate Control Knob Mounting

PowerMate Control Knob


Face plate is machined with a special cutout and mount to fit a  Griffin Technology PowerMate controller and input device (not included). This knob can be programmed for a number of tasks such as volume control and scrolling through menus. PowerMate knob not included. The PowerMate from Griffin is available in black or silver to match the case.

Note: Griffin is not currently selling the knob in black. See the case accessories section below for our re-finishing service for black PowerMate knobs.
No PowerMate Mounting
With PowerMate Mounting - add $45
Reset Button

Reset Button


Face plate is machined with a cutout to fit a machined aluminum reset button. Includes machined aluminum button, momentary switch and wire harness.
No Reset Button
With Reset Button - add $25
Power LED
Standard case comes with a basic green power LED. A optional blue LED is available for a different look.
With Green LED
With Blue LED - add $5
CPU HeatSync® System

CPU HeatSyncTM System

System (6) shown

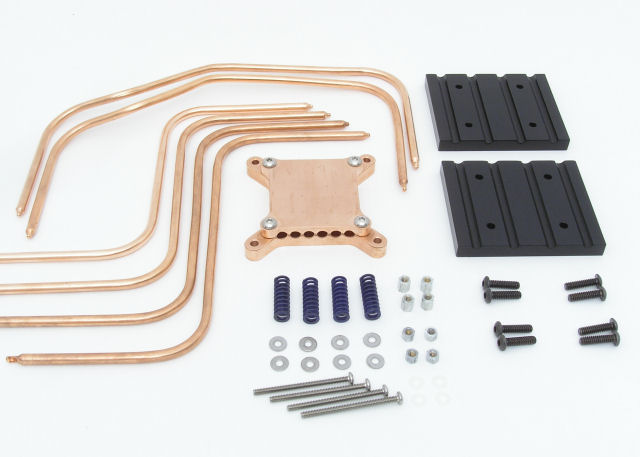

Silent, solid-state cooling system for processor. No moving parts to maintain or fail ensures reliable operation for years. Precision CPU block is machined from solid copper for optimum heat transfer. Heatpipes are custom formed to match your processor, motherboard, and video card combination. Wide thermal clamping plates for conducting heat into case.

Includes:

  • Copper CPU heatpipe block
  • Precision spring retention system
  • Custom formed heatpipes
  • Thermal clamping plates w/ hardware

System (4)

System (6)

System (7)

No CPU HeatSync® System
With CPU HeatSync® System (4) - add $160

With CPU HeatSync® System (6) - add $180

With CPU HeatSync® System (7) - add $180


Note: this option can be added to your case later.
Video Card HeatSync® System

Video Card HeatSyncTM System

System (B) shown

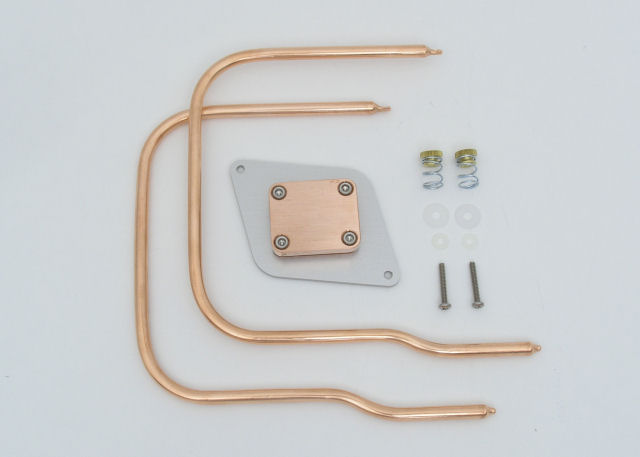

Silent, solid-state cooling system for video card processor. No moving parts to maintain or fail ensures reliable system operation for years. Precision GPU block is machined from solid copper for optimum heat transfer. Heatpipes are custom formed to match your motherboard and video card combination.

Includes:

  • Copper GPU heatpipe block
  • Precision spring retention system
  • Custom formed heatpipes

System (A)

  • Two heatpipes
  • ATI Radeon X1600 and similar models
  • Two-hole 2.14" diagonal spacing

System (B)

  • Two heatpipes
  • NVIDIA 6600, 6800
  • Two-hole 3.12" diagonal spacing

System (C)

  • Two heatpipes
  • NVIDIA 6800, 7600, 7800*
  • ATI 3850, 3870*
  • Four-hole 2.97" diagonal spacing

System (D)

  • Two heatpipes
  • ATI 2600 and similar
  • Four-hole 2.40" diagonal spacing

*Some cards may require installing aftermarket heatsinks on the memory chips.

No Video HeatSync® System

With Video HeatSync® System (A) - add $80

With Video HeatSync® System (B) - add $80

With Video HeatSync® System (C) - add $80

With Video HeatSync® System (D) - add $80



Note: this option can be added to your case later.

Shipping and Ordering Information

These cases are custom made to your order. You may add additional options after work on your case has begun, however some changes may affect shipping time. If there is a custom option you would like to have that is not listed above, please contact us for a special quote. Options can also be added to your case at a later date, you only pay for the option plus refinishing fee.

A deposit is required for each case ordered - Please read:

Atech Fabrication Warranty, Terms of Sale, and Refund Policy



When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.



Quantity Discounts?

Discounts are available on orders of five or more cases. Contact Atech Fabrication for more information.



A-Tech 6000 HeatSync® Case .... $699 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

A-Tech 6000 HeatSync® Case Accessories
PowerMate Knob Re-Finishing

Years ago, the Griffin Technology PowerMate was only available in silver. At that time we offered re-finishing of the knobs in black. Then Griffin started selling them in black. As of 2008, they are only available in silver and we our offering our re-finishing service again.

Service includes:

  • Remove plastic insert
  • Strip clear anodize
  • Re-polish outside surfaces
  • Anodize black
  • Bond plastic insert

Please ship your knob to address shown here
$20.00
Temperature Switch Kit
Use this kit with case fan for ultra-silent operation. Allows case fan to remain off when system is in low demand. After system has been under load, switch turns the fan on after case temperature reaches 40 deg C. Includes bracket for mounting switch to heatpipe clamping plates on case. This switch requires no electricity to operate increasing reliability. Can be used in conjunction with fan speed controllers for maximum versatility.
  • 40 deg C. Temperature Switch
  • Switch Harness for fan
  • Bracket for HeatSync 6000 case
  • Mounting Hardware

$35.00
92mm Case Fan
DC Brushless Axial Flow Fan made by Nexus. Ultra-Quiet operation. Perfect for use as case fan on 4000 and 6000 series cases.
  • 92mm x 25mm
  • 1500 RPM
  • 19.2 dBA
  • 27 CFM
  • 3-pin connector with RPM sensor
  • 12 volts, 0.25 Amps, 0.96 Watts
  • -10 to +70 deg C.

$17.50
92mm Fan Block-off Plate
Use this plate to seal up the 92mm fan opening. This plate can be used on cooler running systems that don't require a case fan or with systems that use a fan cooled power supply. A case fan should still be used if the power supply does not have a side air inlet.

$10.00
Black Anodized Aluminum Slot Covers
These custom made black aluminum slot covers will dress up your HTPC case. Blends in perfectly with our black cases. Each cover is precision laser-cut, formed, and anodized.
$7.50 set of four (4)
Slim-line Drive IDE/Power Adapter
This adapter allows a standard 40-pin IDE data cable to connect from the motherboard to a slim-line DVD drive. The back of the adapter also has a connector for a floppy power and CD-out. Includes mounting screws.

$8.50
Slim-line DVD Power Extension Cable
Due to the design of the door mounted DVD drive, a longer power cable is needed. Cable is 14" long and has a 4-pin 5.25" power supply connector on one end and a floppy drive connector on the other. The floppy drive connector is used on most slim-line IDE adapters.

$7.50
DVD Power Extension Cable
Due to the design of the door mounted DVD drive, a longer power cable is needed. This cable is 14" and has a 4-pin 5.25" power supply connector on each end. For use with a full-size DVD drive.

$4.00
Ultra-Slim IDE Data Cable for DVD drive
A longer IDE data cable may be needed to reach the door mounted DVD drive. This ultra-slim cable is very compact and easy to bend and route though the case.
  • Ultra-Slim to save space and promote airflow
  • Extra flexible for easy bending & twisting
  • 23" length single device cable
  • Ultra DMA (ATA 133/100)
  • High quality cable and connectors
  • Black nylon mesh sleeve
$18.00
USB to MB Header Adapter
This adapter allows you to connect internal USB devices (VFD, IR, PowerMate, Touch-Screen) directly to a USB header on the motherboard. Eliminates the need to route these cables externally. Each adapter has two ports.
$15.00 each
