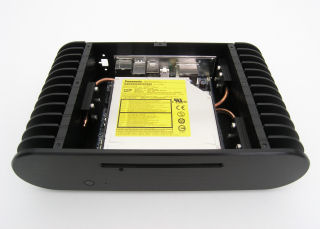

HeatSync 300 Micro-Client - Complete System

A-Tech Fabrication is a leader in designing state-of-the-art computer systems for the home theater. Now you can purchase a complete system assembled and tested by the experienced team at A-Tech Fabrication and know you are getting the best. Every component in the system is individually selected and tested for compatibility and performance. Each system is hand assembled with care to ensure the highest in quality and reliability. The completed system is stress-tested for 24 hours to ensure all components are functioning properly.

Standard System Features:

  • HeatSync 300 Micro-Client Case
  • HeatSync® CPU cooling system
  • Choice of Motherboard and CPU
  • Choice of Hard Drive or Solid State Drive
  • Choice of DVD or Blu-ray optical drive
  • 150W DC-DC Power Converter with P4 Cable
  • 12 Volt, 150 Watt AC-DC Power Adapter
  • Microsoft Windows 7 Home Premium 32-bit operating system
  • Software drivers for optional system components

Optional Features:

  • 2U 19" Rack mount faceplate
  • IR receiver and remote
  • Billet Aluminum Case Feet
  • Microsoft Windows 7 Ultimate 32-bit operating system

Note: Also available as a just the bare case, see Case Order Form for details.

HeatSync 300 Micro-Client - Complete System Order Form

Optical Drive

Slim-line, Slot-loading drive

Panasonic UJ-235-A Blu-ray reader/writer


Choose between a DVD reader/writer or a Blu-ray reader/writer drive. Both models are slim-line slot-loading with SATA interface.
Panasonic UJ-875-A DVD reader/writer:

Media
 Write Read
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 6X 8X
DVD-RW 6X 8X
DVD+R 8X 8X
DVD+R DL (Double Layer) 6X 8X
DVD+RW 8X 8X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 8X
CD-R 24X 24X
CD-RW 24X 24X
CD-ROM - 24X

Panasonic UJ-135-A Blu-ray reader/DVD writer:



Media
 Write Read
BD-ROM (Single Layer/Dual Layer) - 4X
BD-RE Single Layer - 2X
BD-RE Dual Layer - 2X
BD-R Single Layer - 4X
BD-R Dual Layer Dual Layer - 2X
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 4X 4X
DVD-RW 4X 6X
DVD+R 8X 8X
DVD+R DL (Double Layer) 6X 6X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 6X
CD-R 24X 24X
CD-RW 16X 24X
CD-ROM - 24X
Panasonic UJ-235-A Blu-ray reader/writer:

Media
 Write Read
BD-ROM (Single Layer/Dual Layer) - 4X
BD-RE Single Layer 2X 2X
BD-RE Dual Layer 2X 2X
BD-R Single Layer 4X 4X
BD-R Dual Layer Dual Layer 2X 2X
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 4X 4X
DVD-RW 6X 6X
DVD+R 8X 8X
DVD+R DL (Double Layer) 4X 4X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 8X
CD-R 24X 24X
CD-RW 16X 24X
CD-ROM - 24X

Select Optical Drive:

With Panasonic UJ-875-A DVD reader/writer

With Panasonic UJ-135-A Blu-ray reader/writer - add $120

With Panasonic UJ-235-A Blu-ray reader/writer - add $299


Faceplate Color

Black case with Black faceplate

Black case with Silver faceplate
The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Black case with Black faceplate
Black case with Silver faceplate
Rack Mount

Rack Mount Faceplate

(HS-360 case shown for example)


The one-piece rack mount faceplate incorporates rack mounting into the faceplate for a seamless look. The overall width of the faceplate is 19". Oval mounting holes are centered at 18.312". Faceplate height is 3.50" (2U).
No rack mounting
With one-piece rack mount faceplate - add $75
IR Receiver

IR Receiver and Remote

(BD-2000 case shown)


Faceplate is machined with a cutout to fit a infrared receiver. Includes IR receiver, internal USB cable, and Media Center remote control. Receiver is pre-installed into case. IR receiver works with Windows Vista and Windows 7 Home Premium and Ultimate versions -does not require drivers.

No IR receiver
With IR receiver and remote - add $60
Machined Billet Aluminum Case Feet

Billet Aluminum Case Feet


Enhance the appearance of your case with these beautifully machined billet aluminum case feet.







With Standard Rubber feet

With Black Aluminum Case Feet - add $25
With Silver Aluminum Case Feet - add $25

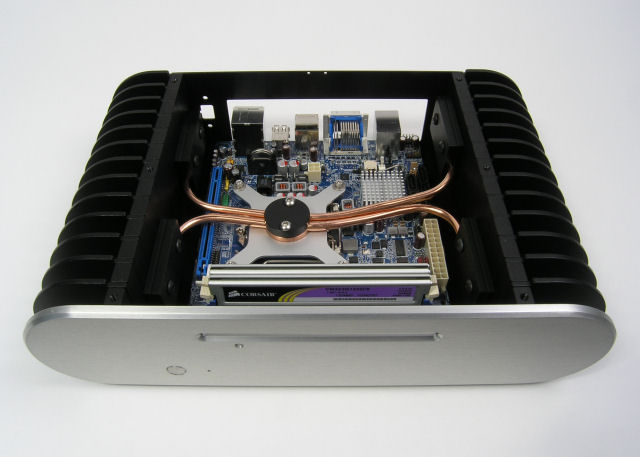

Intel DH57JG Motherboard

Processor: Intel® Core™ i5-650 3.2Ghz

Memory: 240-pin DDR3 1333 MHz

Chipset: Intel® H57 Express
Audio: Intel® High Definition Audio
Video Output: Integrated HDMI + DVI-I ports
LAN: Gigabit (10/100/1000 Mbits/sec)
USB: USB 2.0 (6 back panel ports + 6 internal)
SATA: 4 Internal Serial ATA 3.0 Gb/s ports
eSATA: 1 eSATA back panel port

Expansion: PCI Express 2.0 x 16 bus connector



There's no need to sacrifice performance with a small system. The tiny Intel® Desktop Board DH57JG fits into the space-saving Mini-ITX chassis, allowing you to experience great computing with many of the latest Intel® Core™ processors as well as Intel® Pentium® processors.

The Intel Desktop Board DH57JG also provides an unprecedented low-noise, low-heat home entertainment experience. This compact design has an integrated HDMI port for 1080p output support and ten-channel Intel® High Definition Audio with Dolby Home Theater.
Intel DG45FC Motherboard

Processor: Intel® Core2 Duo E8400 3.0Ghz

Chipset: Intel® G45 Express
Audio: Intel® High Definition Audio
Video: Intel® Graphics Media Accelerator X4500HD
Video Output: Integrated HDMI + DVI-I ports
LAN: Gigabit (10/100/1000 Mbits/sec)
USB: USB 2.0 (6 back panel ports + 4 internal)
SATA: 4 Internal Serial ATA 3.0 Gb/s ports
eSATA: 1 eSATA back panel port
RAID: RAID 0, 1, 5, 10 support

The Intel® G45 Express Chipset, with the next-generation Intel® Graphics Media Accelerator X4500HD (Intel® GMA X4500HD), includes built-in support for full 1080p high-definition video playback, including Blu-ray* disc movies. This powerful video engine provides users with a rich, new media experience to deliver smooth HD playback without the need for add-in video cards or decoders. Intel® GMA X4500HD comes with Intel® Clear Video Technology, a combination of video processing hardware and software technologies designed to enhance the visual experience.

Intel HD Audio delivers significant improvements over previous generation integrated audio and sound cards. Intel HD Audio hardware is capable of delivering the support and sound quality for up to eight channels at 192 kHz/32-bit quality, while the AC‘97 specification can only support six channels at 48 kHz/20-bit. In addition, Intel HD Audio is architected to prevent the occasional glitches or pops that other audio solutions can have by providing dedicated system bandwidth for critical audio functions.
ZOTAC GeForce 9300-ITX WiFi Motherboard

Processor: Intel® Core2 Duo E8400 3.0Ghz

Chipset: GeForce 9300
Audio: Realtek ALC662
Video: NVIDIA’s GeForce 9300
Video Output: VGA, HDMI, DVI
LAN: Gigabit (10/100/1000 Mbits/sec)
USB: USB 2.0 (6 back panel ports + 6 internal)
SATA: 2 Internal Serial ATA 3.0 Gb/s ports
eSATA: 1 eSATA back panel port
RAID: RAID 0, 1 support


Experience the perfect digital home experience with the ZOTAC GeForce 9300-ITX WiFi. Harnessing the power of NVIDIA’s GeForce 9300 graphics processor, the ZOTAC GeForce 9300-ITX WiFi delivers NVIDIA PureVideo HD technology for flawless high-definition Blu-ray playback and superior scaling of standard-definition videos, and NVIDIA CUDA technology for accelerated video processing capabilities.

The ZOTAC GeForce 9300-ITX WiFi pairs the GeForce 9300 graphics processor with Intel socket LGA775 processors for a high-performance platform that’s ready to take on high-definition video playback. Hybrid SLI, PCI Express 2.0 x16, DDR2, high-definition audio and SATA 3.0Gbps technologies enable the ZOTAC GeForce 9300-ITX WiFi to have expansion potential worthy of a home theater PC.
ZOTAC ION N330 1.6GHz Dual-Core 441 NVIDIA Motherboard

Chipset: Atom N330 1.6GHz Dual-Core

Chipset: NVIDIA ION
Audio: 6 Channels
Video: NVIDIA’s GeForce 9400M
Video Output: VGA, HDMI, DVI
LAN: Gigabit (10/100/1000 Mbits/sec)

Wireless LAN: WiFi IEEE 802.11 n
USB: USB 2.0 (6 back panel ports, 4 internal)
SATA: 3 x SATA 3.0Gb/s
eSATA: 1 eSATA II back panel port
RAID: RAID 0, 1, 0+1 support

Power Supply: This MB is supplied with it's own built-in power supply including AC adapter


Experience fluid and vivid high-definition video playback with the ultra-compact ZOTAC ION platform. The mini-ITX form factor ZOTAC ION combines a high-performance NVIDIA ION graphics processor with a power-efficient

NVIDIA PureVideo HD technology harnesses the power of the ZOTAC ION's 16 high-speed stream processors for high-definition Blu-ray playback capabilities. PureVideo HD technology decodes HD video formats and enhances standard-definition videos with the ION GPU for flawless HD and superior SD video playback.

NVIDIA PureVideo technology enables smooth DVD video playback with vivid colors and superior picture quality. With PureVideo technology, movies are displayed with stunning quality while keeping CPU utilization to a minimum.


Select Motherboard:

With Intel DH57JG Motherboard - add $100

  • Intel Core i5-650, 3.2 GHz processor,

  • Corsair XMS3, 4 GB matched pair, DDR3, 1333 MHz memory

With Intel DH57JG Motherboard - add $40

  • Intel Core i3-530, 2.93 GHz processor,

  • Corsair XMS3, 4 GB matched pair, DDR3, 1333 MHz memory

With Intel DG45FC Motherboard

  • Intel Core2 Duo, E8400, 3.0 GHz processor

  • Corsair XMS2, 4 GB matched pair, DDR2, 800 MHz memory

With ZOTAC GeForce 9300-ITX  - add $25

  • Intel Core2 Duo, E8400, 3.0 GHz processor

  • Corsair XMS2, 4 GB matched pair, DDR2, 800 MHz memory

With ZOTAC ION N330, 441 NVIDIA - deduct $200

  • 1.6 GHz Dual-Core processor is built into MB

  • Corsair XMS2, 4 GB matched pair, DDR2, 800 MHz memory


Hard Drive

WD Scorpio Blue 2.5" HDD





Intel X25-M 2.5" SSD



The standard hard drive installed is the Seagate Momentus 7200 RPM 2.5" drive. We also have the Seagate 5400 RPM drive and the new WD Scorpio Blue 5200 RPM drive with a 750GB capacity. These optional low RPM 2.5" drives run very quietly.

For total silence and extreme speed, a solid state drive (SSD) is the way to go. SSD prices have come way down lately making them a viable choice for your system. System boot-up time is typically 15 seconds and programs launch in the blink of an eye. The most noticeable performance increase for the cost.

Select Dual drives for additional storage. With dual drives, we install the operating system and programs on the SSD and set-up the second HDD for data and media storage.

Seagate Momentus 7200 RPM

  • SATA 3.0Gb/s
  • Cache 16MB
  • Latency 4.17ms

Seagate Momentus 5400 RPM

  • SATA 3.0Gb/s
  • Cache 8MB
  • Latency 5.6ms

Western Digital Scorpio Blue  5200 RPM

  • SATA 3.0Gb/s
  • Cache 8MB
  • Latency 12ms

Intel X25-M 2.5" 80/160GB SSD

  • 250MB/s Read
  • 70/100MB/s Write



Primary Drive - Operating System and Programs

250GB Seagate Momentus 2.5" 7200 RPM

500GB Seagate Momentus 2.5" 5400 RPM - add $20

750GB WD Scorpio Blue  2.5" 5200 RPM - add $80

80GB Intel X25-M 2.5" SSD - add $165  <-Recommended

160GB Intel X25-M 2.5" SSD - add $435



Secondary Drive - Data and Media Storage

No Secondary Drive

250GB Seagate Momentus 2.5" 7200 RPM - add $65

500GB Seagate Momentus 2.5" 5400 RPM - add $80

750GB WD Scorpio Blue  2.5" 5200 RPM - add $145  <-Recommended

80GB Intel X25-M 2.5" SSD - add $235

160GB Intel X25-M 2.5" SSD - add $500


Operating System
Our complete systems come pre-installed with the latest operating systems from Microsoft. Now enjoy the benefits of the long awaited Windows 7. Choose between the Home Premium or the Ultimate version. Both versions have built-in Media Center capabilities for watching movies, playing music, and more. Windows 7 now includes integrated video and Dolby audio codec's to simplify set-up.

Compare Windows 7 versions

Please note: Only select the 64-bit version if you know all your software and hardware will operate on 64-bit

Microsoft Windows 7 Home Premium 32-bit operating system
Microsoft Windows 7 Home Premium 64-bit operating system

Microsoft Windows 7 Ultimate 32-bit operating system - add $90

Microsoft Windows 7 Ultimate 64-bit operating system - add $90



Shipping and Ordering Information

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.



HeatSync 300 Micro-Client System ... $1599 + options

Note: To purchase the bare case separately, see Case Order Form
