HeatSync 7000 Case Order Form

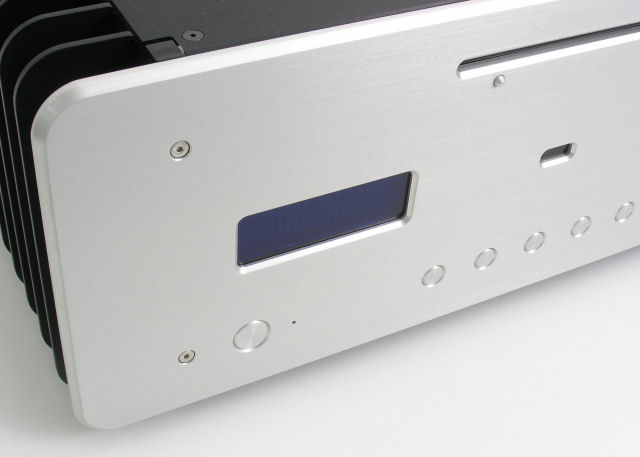

Slim-line Slot-load

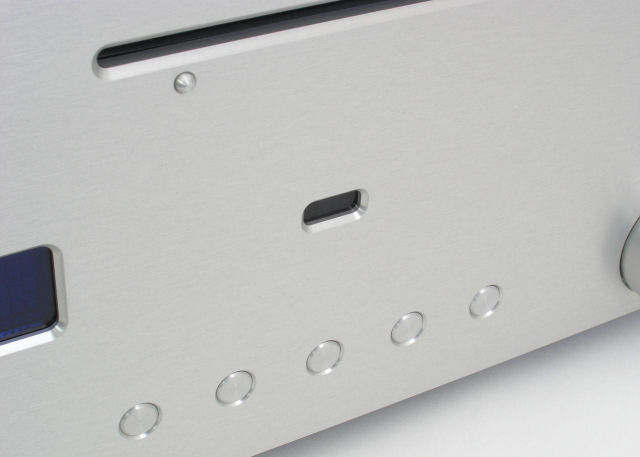

Slim-line, Slot-loading drive slot

Faceplate is machined to fit a slim-line slot-load DVD drive. This type of drive takes up less space inside the case and allows for larger CPU coolers. Includes drive mounting brackets and hardware.

Compatible Slot-Load Blu-ray drives:

  • Panasonic Blu-ray UJ-135-A

  • Panasonic Blu-ray UJ-235-A

  • Sony NEC Optiarc BC-5600S

Compatible Slot-Load DVD drives:

  • Panasonic UJ-875-A
  • Panasonic UJ-875-B
  • Panasonic CW-8123
  • Panasonic CW-8124-B
  • Sony NEC Optiarc AD-7670S
  • Sony NEC Optiarc AD-7630A
  • Pioneer DVR-K06
  • Pioneer DVR-K05
  • Pioneer DVR-K04L

Note: Newer models not listed from the same manufacturers should also fit.

Select Faceplate Style:

No Optical Drive slot or mounting - deduct $20

With Slim-line Slot-load Optical Drive mounting



Power Supply Selection Note:  Drive selection affects the length of the power supply that can be installed. The new SATA drives have a simple cable interface without the need for adapters that take up space. Older ATAPI drives require a shorter power supply, for those we suggest the CORSAIR VX series 450-550w (140mm L) Seasonic S12II series (140mm L).

The SATA drives below will allow a power supply up to 170mm in length. We suggest the CORSAIR HX series 450-650 (150mm L) and Seasonic M12II and M12D series (160mm L).

SATA optical drives:

  • Sony NEC Optiarc BC-5600S
  • Panasonic Blu-ray UJ-135-A
  • Panasonic Blu-ray UJ-235-A
  • Sony NEC Optiarc AD-7630A
  • Panasonic UJ-880-A
  • Panasonic UJ-875-A



Faceplate Color

Black case with silver faceplate

The aluminum case and all aluminum brackets are treated by an anodizing process for corrosion protection and a long lasting uniform finish. The rear portion of chassis is black anodized. The faceplate and buttons can be either black or silver.
Black case with Black faceplate
Black case with Silver faceplate
Laser Etched Logo Graphics
Faceplate is laser etched with custom graphics and lettering during the anodizing process. Graphics can include company logo, button labels, system specs, and warning labels. Artwork to be provided by customer. Artwork should be in a vector format for best results. Preferred file format is PDF or Adobe Illustrator.

Approximate minimum pricing per job:

  • Clear lettering on black case ($175)

  • Black lettering on silver case ($200)

Contact A-Tech for price quote. Normally you can run several faceplates for the same minimum charge or a small nominal fee per plate. Different types of cases can be combined on order to reduce total cost.

No Logo
With custom laser etched logo graphics

Rack Mounting

Rackmount Faceplate

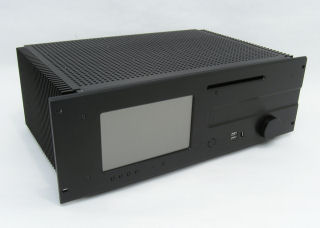

Case can be provided with a one-piece 19" faceplate for rack mounting. This plate is 7.0" tall (4U) and 19" wide. The 7.0" faceplate extends above and below the 6.50" chassis by 0.25". Slotted and recessed holes are machined to accommodate rack mounting screws.



No Rack Mounting

With 19" Rack Mount Faceplate - add $80

Touch Screen Mounting

Touch Screen Mounting

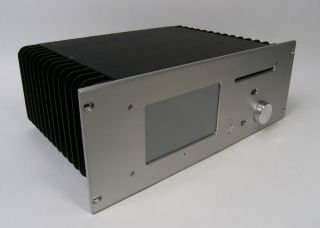

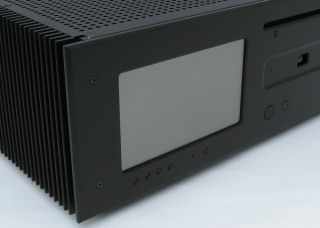

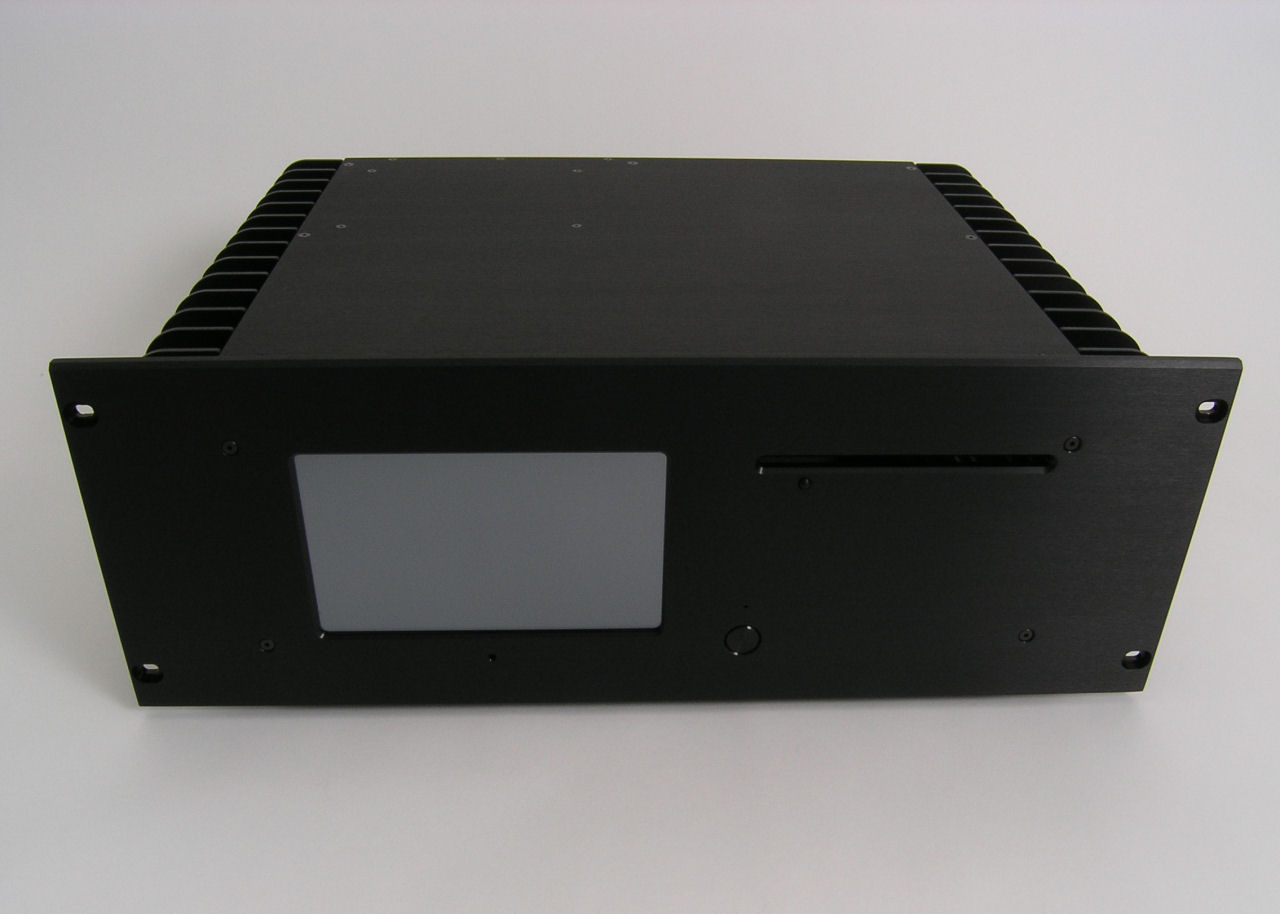

Faceplate is machined with a cutout to fit a Xenarc 700TS LCD Touch Screen. The display can be used for operator input, previewing movies, or as a windows desktop. An infrared remote is included to turn the display on/off and control brightness, contrast, and display position settings. Touch screen display not included, purchase separately below.
  • Touch Screen style faceplate
  • Infrared remote control
  • Internal 12 volt power cable
No Display Mounting
With Touch Screen Mounting - add $85
Xenarc Touch Screen Display

Xenarc Touch Screen Display

A-Tech Fabrication is now authorized by Xenarc to install their touch screen displays into our cases. The display will have the full warranty from Xenarc. It will also include a special power cable to allow you to connect it to the power supply inside the case. The case will be shipped with the display installed into the faceplate. You must also purchase the touch screen mounting option above.

  • Xenarc 700TSV Display
  • VGA/composite video cable
  • USB TS input cable
  • Infrared remote control
No Xenarc Display
With Xenarc Display - add $400
VFD or LCD Mounting

VFD or LCD Mounting

Faceplate is machined with a cutout to fit a Matrix Orbital 4x20 display. Can be used with or without tinted filters. The blue filter looks nice with our blue LED option. Includes mounting hardware and spacers. Display and filter not included.

Supported models:

  • VK204-25-USB (most popular VFD)
  • VK204-25 (older serial VFD)
  • LK204-25 GW-WB-IY (low cost LCD)
With VFD/LCD Mounting - add $35
IR Receiver

IR Receiver



Faceplate is machined with a cutout to fit a infrared receiver. Includes IR receiver, internal USB cable, and remote control. IR receiver works with Windows Vista and Windows 7 Home Premium and Ultimate versions -does not require drivers.

Note: USB-UIRT option does not include receiver or remote.

No IR receiver mounting
With IR receiver and remote - add $60

With USB-UIRT mounting - add $30

USB Port

USB 2.0 Port

Face plate is machined with cutout to fit a USB 2.0 port adapter. Internal cable plugs into the USB header on your motherboard. Standard port location is in the lower right corner. We can also add more ports if needed, please contact us for more information.

NOTE: When combined with the PowerMate option, the location of the USB port will be in the space between the reset button and the DVD control buttons.

No USB Port
With USB Port - add $25
DVD Push Button Controls

DVD Push Button Controls

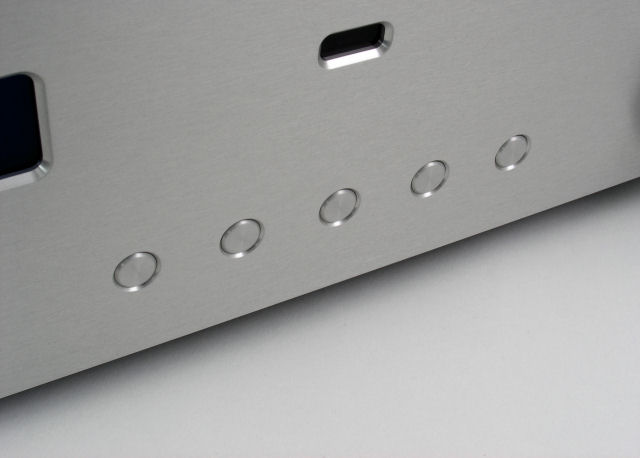

Face plate is machined with cutouts to fit five custom machined push buttons. These buttons can be programmed to control software such as a DVD player. Button assembly comes pre-wired with header connector. This connector plugs into the keypad input connector on a Matrix Orbital VFD display (order separately above). Includes five (5) machined aluminum buttons, five (5) momentary switches, wire harness, and hardware.

Note: DVD Push Button Controls cannot be combined Touch Screen option

No DVD Push Button Controls
With DVD Push Button Controls - add $75
PowerMate Control Knob Mounting

PowerMate Control Knob Mounting

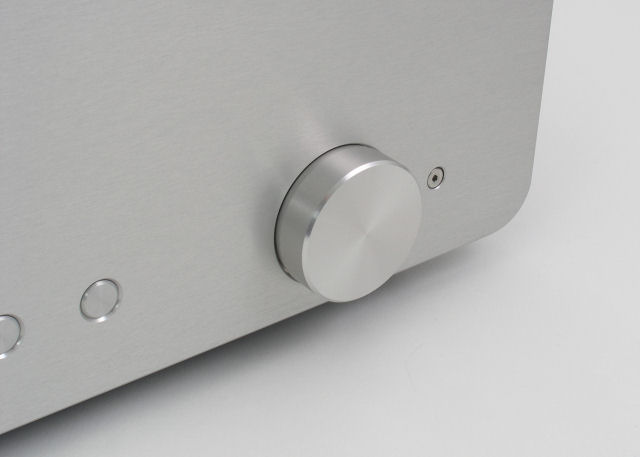

Face plate is machined with a special cutout and mount to fit a  Griffin Technology PowerMate controller and input device. This knob can be programmed for a number of tasks such as volume control and scrolling through menus. PowerMate knob not included.

Note: Griffin is not currently selling the knob in black. See the case accessories section below for our re-finishing service for black PowerMate knobs.

No PowerMate Mounting
With PowerMate Mounting - add $45
Power LED

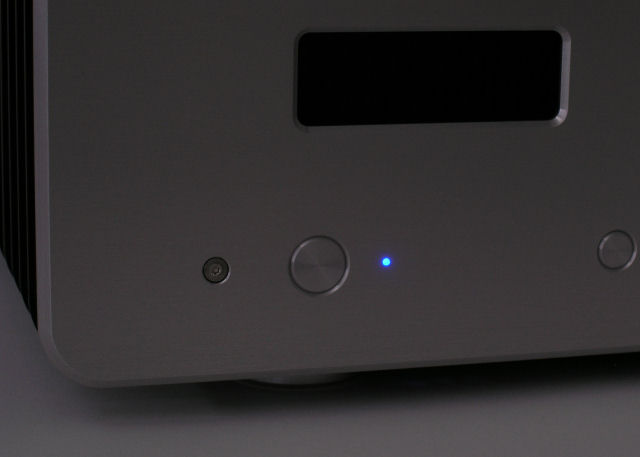

The case comes fitted with a power LED. The LED color can either be basic green or blue for a different look.
With Green LED
With Blue LED

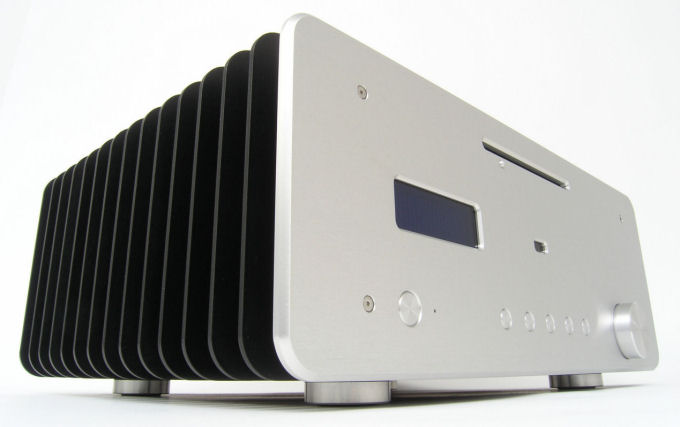

Machined Billet Aluminum Case Feet

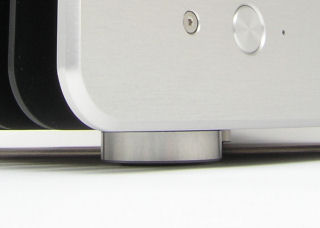

Enhance the appearance of your case with these precision machined, billet aluminum, anodized case feet.



With Standard Rubber feet

With Black Aluminum Case Feet - add $25
With Silver Aluminum Case Feet - add $25

Secondary Hard Drive Mount  Picture Coming Soon
Adds a second 3.5" hard drive mounted in front of power supply. Uses EAR isolation dampers to reduce vibration noise. Includes mounting brackets and hardware.  Secondary HDD mount cannot be used with touch screen option.

No Secondary Hard Drive Mount

With Secondary Hard Drive Mount - add $35

CPU HeatSync® System

CPU HeatSync® System

System (6) shown

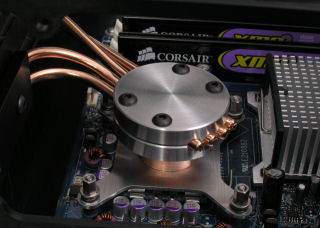

Silent, solid-state cooling system for processor. No moving parts to maintain or fail which ensures reliable operation for years. CPU base is precision machined from solid copper for optimum heat transfer from processor chip. Heat-treated and anodized aluminum clamping plates transfer heat to the heatpipes. Heatpipes are custom formed to match your processor socket and motherboard. Wide thermal clamping plates conduct heat into the case.

Includes:

  • Copper CPU base
  • Precision spring retention system
  • Custom formed heatpipes
  • Thermal clamping plates w/ hardware

System (5)

  • Intel Mobile Socket 479

System (6)

  • Intel Socket LGA775

System (7)

  • AMD Socket 754 and 939

System (8)

  • AMD Socket AM2, AM2+, AM3

System (9)

  • Intel Socket LGA1366

System (10)

  • Intel Socket LGA1156



No CPU HeatSync® System
With CPU HeatSync® System  (5) - add $110

With CPU HeatSync® System  (6) - add $175

With CPU HeatSync® System  (7) - add $175

With CPU HeatSync® System  (8) - add $175

With CPU HeatSync® System  (9) - add $175

With CPU HeatSync® System (10) - add $175



Specify the motherboard being used:

Note: Most all motherboards are supported

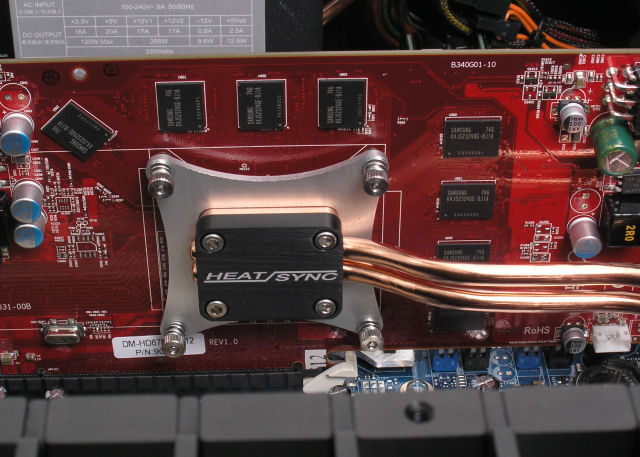

Video Card HeatSync® System

Video Card HeatSync® System

System (C) shown

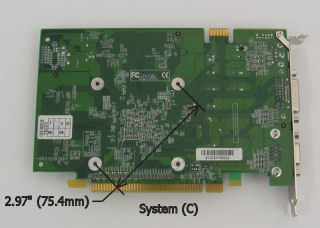

Measure your card on the backside to determine which size mounting plate you will need

Silent, solid-state cooling system for video card processor. No moving parts to maintain or fail ensures reliable system operation for years. GPU base is precision machined from solid copper for optimum heat transfer from processor chip. Heatpipes are custom formed to match your motherboard and video card combination.

Includes:

  • Copper GPU base
  • Aluminum clamping plate
  • Precision spring retention system
  • Custom formed heatpipes

Maximum video card height:

  • 4.375" PCIe

Maximum video card length:

  • 9.50" with IR receiver
  • 10.50" with touch screen or VFD
  • 11.50" with no IR or displays

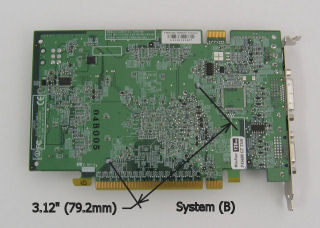

System (B)

  • Two heatpipes
  • older NVIDIA 6600 and 6800
  • Two-hole 3.12" diagonal spacing

System (C)

  • Two heatpipes
  • ATI Radeon 4850
  • NVIDIA 9500, 9600, 9800 series
  • Four-hole 2.97" diagonal spacing

System (D)

  • Two heatpipes
  • ATI Radeon 4670, 5750
  • Four-hole 2.40" diagonal spacing

Note: We suggest the ATI 5750 or NVIDIA 9500 cards as a good match for our coolers. If you are not sure which version to use, email us a link to your card and we can tell you which version cooler to choose. The majority of cards today use the System (C) design.

No Video HeatSync® System

With Video HeatSync® System (B) - add $80

With Video HeatSync® System (C) - add $80

With Video HeatSync® System (D) - add $80

Shipping and Ordering Information

These cases are custom made to your order. You may add additional options after work on your case has begun, however some changes may affect shipping time. If there is a custom option you would like to have that is not listed above, please contact us for a special quote. Options can also be added to your case at a later date, you only pay for the option plus a small refinishing fee.

When will the case ship?

Standard lead time is 2-3 weeks.



Quantity Discounts?

Discounts are available on orders of two or more cases. Contact A-Tech Fabrication for more information.

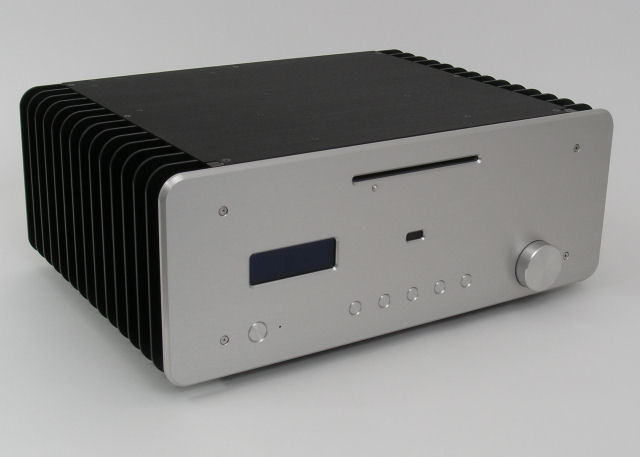

HeatSync 7000 Case .... $749 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

NOTE: The HeatSync® 7000 is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!

Case Accessories


Panasonic UJ-875-A DVD reader/writer:

Panasonic UJ-875-A DVD reader/writer

Slim-line SATA interface

Panasonic UJ-875-A is a slim-line DVD multi-burner for playback and recording of DVD's. The SATA interface requires a special slim-line power/data cable sold below.



Media
Write Read
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 6X 8X
DVD-RW 6X 8X
DVD+R 8X 8X
DVD+R DL (Double Layer) 6X 8X
DVD+RW 8X 8X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 8X
CD-R 24X 24X
CD-RW 24X 24X
CD-ROM - 24X



$99.95 each
Panasonic UJ-135-A Blu-ray reader/DVD writer:

Panasonic UJ-135-A Blu-ray read/DVD write

Slim-line SATA interface

Panasonic UJ-135-A is a slim-line optical drive for Blu-ray/DVD playback and DVD recording. The SATA interface requires a special slim-line power/data cable sold below.



Media
Write Read
BD-ROM (Single Layer/Dual Layer) - 4X
BD-RE Single Layer - 2X
BD-RE Dual Layer - 2X
BD-R Single Layer - 4X
BD-R Dual Layer Dual Layer - 2X
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 4X 4X
DVD-RW 4X 6X
DVD+R 8X 8X
DVD+R DL (Double Layer) 6X 6X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 6X
CD-R 24X 24X
CD-RW 16X 24X
CD-ROM - 24X



$219.95 each
Panasonic UJ-235-A Blu-ray reader/writer:

Panasonic UJ-235-A Blu-ray reader/writer

Slim-line SATA interface

Panasonic UJ-235-A is a slim-line Blu-ray optical drive for playback and recording of Blu-ray discs. The SATA interface requires a special slim-line power/data cable sold below.



Media
Write Read
BD-ROM (Single Layer/Dual Layer) - 4X
BD-RE Single Layer 2X 2X
BD-RE Dual Layer 2X 2X
BD-R Single Layer 4X 4X
BD-R Dual Layer Dual Layer 2X 2X
DVD-RAM 5X 5X
DVD-R 8X 8X
DVD-R DL (Dual Layer) 4X 4X
DVD-RW 6X 6X
DVD+R 8X 8X
DVD+R DL (Double Layer) 4X 4X
DVD-ROM Single Layer - 8X
DVD-ROM Dual Layer - 8X
CD-R 24X 24X
CD-RW 16X 24X
CD-ROM - 24X



$399.95 each
Slim-line SATA Cable - 18"
This cable is used on slim-line SATA DVD and Blu-ray drives. One end has a special connector to fit the drive, the other end has a standard SATA connector and 5 volt 4-pin Molex connector. 18" long.

$12.00

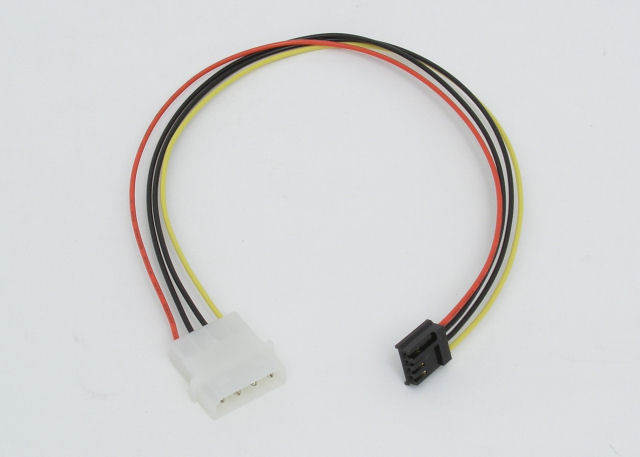

Slim-line DVD Power Extension Cable
Due to the design of the door mounted DVD drive, a longer power cable may be needed. This cable is 14" long and has a 4-pin 5.25" power supply connector on one end and a floppy drive connector on the other. The floppy drive connector is used with most slim-line IDE adapters.

$7.50

Slim-line Drive SATA/Power Adapter
This adapter allows a Serial ATA data cable to connect from the motherboard to a slim-line ATAPI DVD or Blu-ray drive. The back of the adapter also has a connector for a floppy power cable and CD-out. Includes mounting screws.

$25.00

Slim-line Drive IDE/Power Adapter
This adapter allows a standard 40-pin IDE data cable to connect from the motherboard to a slim-line ATAPI DVD drive. The back of the adapter also has a connector for a floppy drive power and CD-out. Includes mounting screws.

$12.00

Ultra-Slim IDE Data Cable for DVD drive
A longer IDE data cable may be needed to reach the door mounted DVD drive. This ultra-slim cable is very compact and easy to bend and route though the case.
  • Ultra-Slim to save space and promote airflow
  • Extra flexible for easy bending & twisting
  • 23" length single device cable
  • Ultra DMA (ATA 133/100)
  • High quality cable and connectors
  • Black nylon mesh sleeve
$18.00
USB to MB Header Adapter
This adapter allows you to connect internal USB devices (VFD, IR, PowerMate, Touch-Screen) directly to a USB header on the motherboard. Eliminates the need to route these cables externally. Each adapter has two ports.
$15.00 each
PowerMate Knob Re-Finishing

Years ago, the Griffin Technology PowerMate was only available in silver. At that time we offered re-finishing of the knobs in black. Then Griffin started selling them in black. As of 2008, they are only available in silver and we our offering our re-finishing service again.

Service includes:

  • Remove plastic insert
  • Strip clear anodize
  • Re-polish outside surfaces
  • Anodize black
  • Bond plastic insert

Please ship your knob to address shown here

$20.00
Black Anodized Aluminum Slot Covers
These custom made black aluminum slot covers will dress up your HTPC case. Blends in perfectly with our black cases. Each cover is precision laser-cut, formed, and anodized.
$7.50 set of four (4)
