Mini-Server 5x Order Form

Each case includes:

Fully assembled aluminum heatsink case
Mounting for ITX motherboard
Drive module plates for five hard drives
One set of drive module isolation pads
Slim-line DVD drive mount
Eject button for DVD drive
Power button with switch and wiring harness
Blue status LED with wiring harness
Hardware kit with all screws needed for assembly
Set of hex keys to work on your case

Compatible Slim-line DVD drives:

Panasonic Blu-ray UJ-225
Panasonic UJ-875
Panasonic UJ-85J
Panasonic UJ-850
Panasonic UJ-845-B
Panasonic UJ-825-B
Panasonic CW-8123
Panasonic CW-8124-B
Panasonic SR-8178
Pioneer DVR-K06
Pioneer DVR-K05
Pioneer DVR-K04L

Faceplate Color

Anodizing samples in clear and black

The aluminum case and all aluminum brackets are treated by a anodizing process for corrosion protection and long lasting uniform finish. The rear chassis and internal parts have a black finish, the faceplate can be either black or silver.

Black Faceplate, Black Chassis
Silver Faceplate, Black Chassis

Laser Etched Graphics

Faceplate is laser etched with custom graphics and lettering during the anodizing process. Graphics can include company logo, symbols, port labels, button labels, system specs, etc. Artwork provided should be in a vector format for best results. We can create simple artwork for you or send us your custom designs. Approximate pricing for up to ten cases with same artwork:

Clear lettering on black case ($175)
Colored lettering on silver or black case ($200)

Pricing: Up to ten cases can be run for the same minimum charge or a small nominal fee per plate. Contact A-Tech for price quote.

No graphics or lettering
With custom graphics and lettering

Rack Mount

3U Rack Mount Faceplate

(1U case shown as example)

The one-piece rack mount faceplate incorporates rack mounting into the faceplate for a seamless look. The overall width of the faceplate is 19". Oval mounting holes are centered at 18.312". Faceplate height is 5.25" (3U). All of the same faceplate features on the standard faceplate are also available with the rack mount faceplate.

No rack mounting
With one-piece rack mount faceplate - add $50

Machined Billet Aluminum Case Feet

Enhance the appearance of your case with these machined billet aluminum case feet.

With Standard Rubber feet

With Black Aluminum Case Feet - add $30
With Silver Aluminum Case Feet - add $30

HeatSync^® Cooling System

HeatSync^® Cooling System on LV-677

Our HeatSync^® Cooling system eliminates the need for fan cooling of the processor. With the HeatSync^® Cooling system installed, heat from the processor is transferred into the heatsink case for dissipation to the outside air. Other MB's will be added to the order form in the future. You can also run most mini-ITX MB's in this case using the stock cooler but the HeatSync^® Cooling system offers the best thermal performance.

Includes:

Copper mounting base for processor
Aluminum mounting base for chipset
Two pre-bent heat pipes
Two aluminum clamping plates for heatsink
Required installation hardware

No HeatSync^® Cooling System

With HeatSync^® Cooling System for Commel LV-677- add $120

With HeatSync^® Cooling System for Commel LV-679- add $100

With HeatSync^® Cooling System for MSI GM965- add $100

With HeatSync^® Cooling System for Aopen i945GMt- add $100

With HeatSync^® Cooling System for VIA 1500- add $120

We can quote the cost for others motherboards, but not every MB is a candidate for this system.

Shipping and Ordering Information

Please read:

Atech Fabrication Warranty, Terms of Sale, and Refund Policy

When will the case ship?

Standard lead time is 2-3 weeks depending on options and color choice.

Quantity Discounts?

Discounts are available on orders of two or more cases. Contact Atech Fabrication for more information.

A-Tech Mini-Server 5x Case ... $549 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.

Mini-Server 5x Case Accessories

200 Watt 6-pin DC-DC Power Converter

Internal DC-DC power converter provides power to the system. Plugs directly into a 20-pin ATX MB connector. To operate, an external AC power adapter is required, see below.

Note: Power input cable is modified for a 6-pin connector to use with our heavy-duty AC power adapter below.

12 volts input
200 watts output
12A @ 12V
6A @ 3.3V
6A @ 5V

$54.95 each

12 Volt AC Power Adapter

High Performance AC power adapter. Totally fanless with no overload fan or vent slots, completely sealed housing. High efficiency design allows adapter to remain cool under load. 15 Amp peak load rating starts up power hungry hard drives.

90 to 264 VAC input
12 Volts Output
120 Watts (rated)
9 Amps Continuous, 15 Amp Peak
6-pin Connector

$95.00 each

80mm x 25mm Axial Fan	80mm x 25mm Axial Fan
DC Brushless Axial Flow Fan made by Nexus. Ultra-Quiet operation. 80mm x 25mm 1500 RPM 17.6 dBA 20 CFM 3-pin connector with RPM sensor 4-pin Molex connector 12 volts, 0.15 Amps -10 to +70 deg C. $13.50

20-pin ATX Power Extension cable

Use this 20-pin ATX Power Extension cable to connect the power converted to your MB. Works with 20 and 24 pin motherboards. 10" long.

$9.00 each

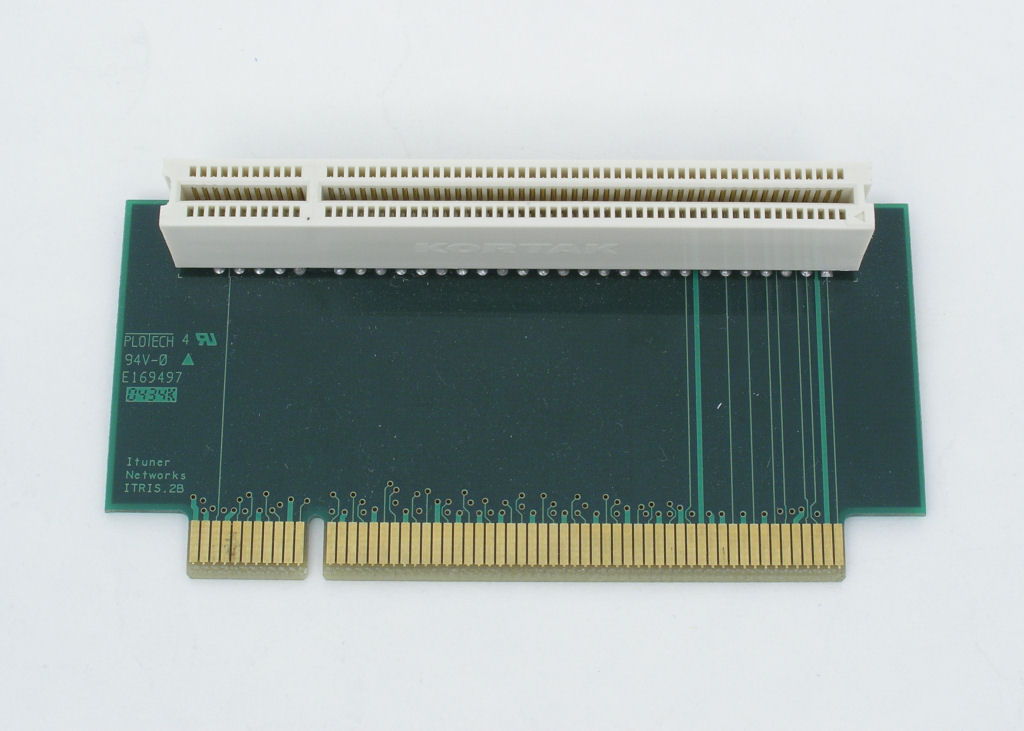

PCI Riser Card

Use this adapter to install a PCI card into the add-on slot above motherboard. This is for PCI cards only, PCIe cards require a flexible riser.

$13.50

Slim-line Drive IDE/Power Adapter
This adapter allows a standard 40-pin IDE data cable to connect from the motherboard to a slim-line DVD drive. The back of the adapter also has a connector for a floppy power and CD-out. Includes mounting screws. $8.50

Serial ATA Data Cable

Serial ATA data cable with straight connectors at each end. The 12" long cable connect each drive to the MB or adapter card. Please note that most MB's and adapter cards may already include cables.

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives.

$4.50 each

IDE Power Cable Splitter

Single IDE power cable to dual IDE power cable splitter.

$3.00 each
