Detailed Information - Order Form

Each case includes:
  • Fully assembled aluminum case
  • Drive module plates for eight hard drives with mounting screws
  • Power button for ATX power supply
  • One set of drive module isolation pads
  • Four low-profile rubber feet
  • Hex driver for fast drive assembly

Faceplate Color

Anodizing samples in clear and black

Aluminum case and all aluminum brackets are treated by a anodizing process for corrosion protection and a long lasting uniform finish. The rear chassis and internal  parts have a black finish, the faceplate can be either black or silver.
Black faceplate
Silver faceplate

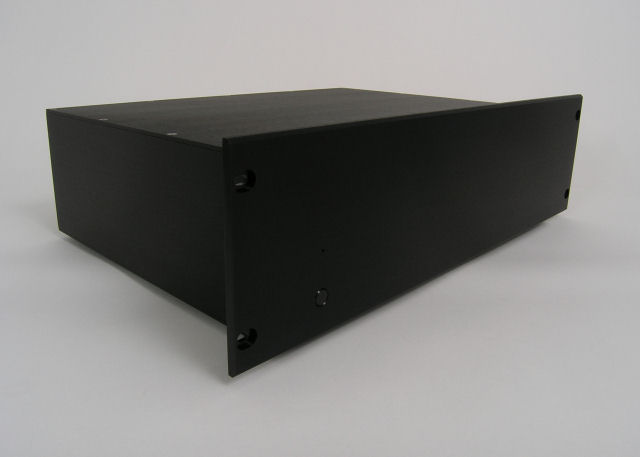

Rack Mount

3U Rack Mount Faceplate

(4X case shown)

The one-piece rack mount faceplate incorporates rack mounting into the faceplate for a seamless look. The overall width of faceplate is 19". Oval mounting holes are centered at 18.312". Faceplate height is 5.25" (3U).
No rack mounting
With one-piece rack mount faceplate - add $50
Machined Billet Aluminum Case Feet
Enhance the appearance of your case with these machined billet aluminum case feet.



With Standard Rubber feet

With Black Aluminum Case Feet - add $30
With Silver Aluminum Case Feet - add $30

Shipping and Ordering Information

Please read:

Atech Fabrication Warranty, Terms of Sale, and Refund Policy



When will the case ship?

These cases are normally in stock and will ship with in 1-2 weeks depending on other options and color choice. If we are out of stock, the typical lead time is 4-6 weeks.



Quantity Discounts?

Discounts are available on orders of five or more cases. Contact Atech Fabrication for more information.



Mass-Storage 8X Case ... $499 + options

Please select options above before adding to cart. Before checking out, be sure to add any additional accessories below so that they can be shipped with your case.



Mass Storage Case Accessories

External Power Supply Adapter Kit

This kit adapts a ATX power supply opening to house a DC-DC converter. A 80mm fan opening provides cooling. Includes mounting plate for a PW-200-V DC-DC converter, 80mm fan grill, power connector cut-out, pressed-in steel inserts, and all mounting screws.

Note: Designed for the 6-pin PS below.

$45.00 each

200 Watt 6-pin DC-DC Power Converter

Internal DC-DC power converter provides power to the system. Plugs directly into a 20-pin ATX MB connector. To operate, an external AC power adapter is required, see below.

Note: Power input cable is modified for a 6-pin connector to use with our heavy-duty AC power adapter below.

  • 12 volts input
  • 200 watts output
  • 12A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V

$54.95 each

12 Volt AC Power Adapter

High Performance AC power adapter. Totally fanless with no overload fan or vent slots, completely sealed housing. High efficiency design allows adapter to remain cool under load. 15 Amp peak load rating starts up power hungry hard drives.
  • 90 to 264 VAC input
  • 12 Volts Output
  • 120 Watts (rated)
  • 9 Amps Continuous, 15 Amp Peak
  • 6-pin Connector

$95.00 each

Multi-Lane to SATA PCI adapter

Multi-Lane adapter with four SATA drive connectors on PCI slot bracket. Use this adapter on your HTPC case when using an external Multi-Lane cable. Connect the four internal SATA connections to either your motherboard or SATA RAID card.
  • Four 7-pin Serial ATA2 Connectors
  • One 4-Channel External Multi-Lane Connector
  • 3Gb/s SATA2 Data Transfer Rate
  • Built-in cross-over for straight through cable

$39.95 each

Multi-Lane to SATA Centronics adapter

Multi-Lane adapter with four SATA drive connectors on custom Centronics type slot bracket. Use this adapter in our storage cases when using an external Multi-Lane cable. Connect the four internal SATA connections to either your motherboard or SATA RAID card. Adapter plate has hole for external power supply connector.
  • Four 7-pin Serial ATA2 Connectors
  • One 4-Channel External Multi-Lane Connector
  • 3Gb/s SATA2 Data Transfer Rate

$39.95 each

Multi-Lane Cable

Multi-Lane cable is used to connect our storage cases to your host PC. Each end has thumb-screws to fit the SATA port adapters above. Cable is wired straight-through.
One (1) meter long $43

Two (2) meter long $59
Serial ATA Data Cable

Serial ATA data cable with straight connectors at each end.



  $3.00      12" Length



  $3.50      20" Length


20" Right-Angle Serial ATA Cable

Use this cable to connect each drive to the port adapter inside the case. This type of right-angle cable is required with the Multi-port adapter. This cable can also be used with a 8-port adapter by connecting the right-angle end to the drive for neater cable routing.. Eight cables are needed for eight drives.



$4.00 each

Serial ATA Power Adapter Cable

Adapts 5.25" IDE power cable to dual SATA HDD power connectors. Use this cable to power two SATA drives.



$4.50 each



IDE Power Cable Splitter

Single IDE power cable to dual IDE power cable splitter.



$3.00 each
