Detailed Information - Performance - Case Order Form - Complete Systems


Detailed Information
  • 100% Made in the USA

  • Low Profile High Performance Computer Case
  • Passively Cooled Design - No Noise!
  • Precision CNC machined from heat-treated aircraft quality billet aluminum
  • Heavy-duty aluminum Heatsink Case absorbs and disperses system heat
  • Modular heatsink system increases performance and functionality

  • Large aluminum fins optimize natural convection cooling
  • 75% increased cooling capacity compared to Mini-Client 2500 case
  • Highly efficient HeatSync CPU cooling system transfers heat directly into chassis
  • Integrated HeatSync GPU video card cooling system (optional)
  • Proprietary High-Mass Drive Isolation System eliminates noise from drive vibrations
  • Fanless External AC power adapter (optional)
  • Fanless internal high efficiency DC-DC converter (optional)
  • Holds up to one 3.5" or four 2.5" HDD's
  • Standard slim-line slot-loading optical drive mounting
  • Designed for mini-ITX motherboards only
  • 1/2 height PCI or PCI-E adapter slot for tuner card or RAID adapter
  • Faceplate available with either black or silver anodized finish

  • Standard black anodized finish on chassis

  • Outstanding workmanship and finish quality

  • Dimensions - 17-1/2" wide x 13" deep x 3" high (+ 3/8" with feet)

Options Include:

  • HeatSync Cooling System for processor
  • HeatSync Cooling System for motherboard chipset
  • HeatSync Cooling System for video card
  • IR receiver and remote

  • USB 2.0 or USB 3.0 front panel port

  • Secondary 2.5" HDD mounting

  • 2U one-piece rack mount faceplate

  • Billet aluminum case feet

 Click each picture for higher resolution!  (turn off image resizing for best quality)

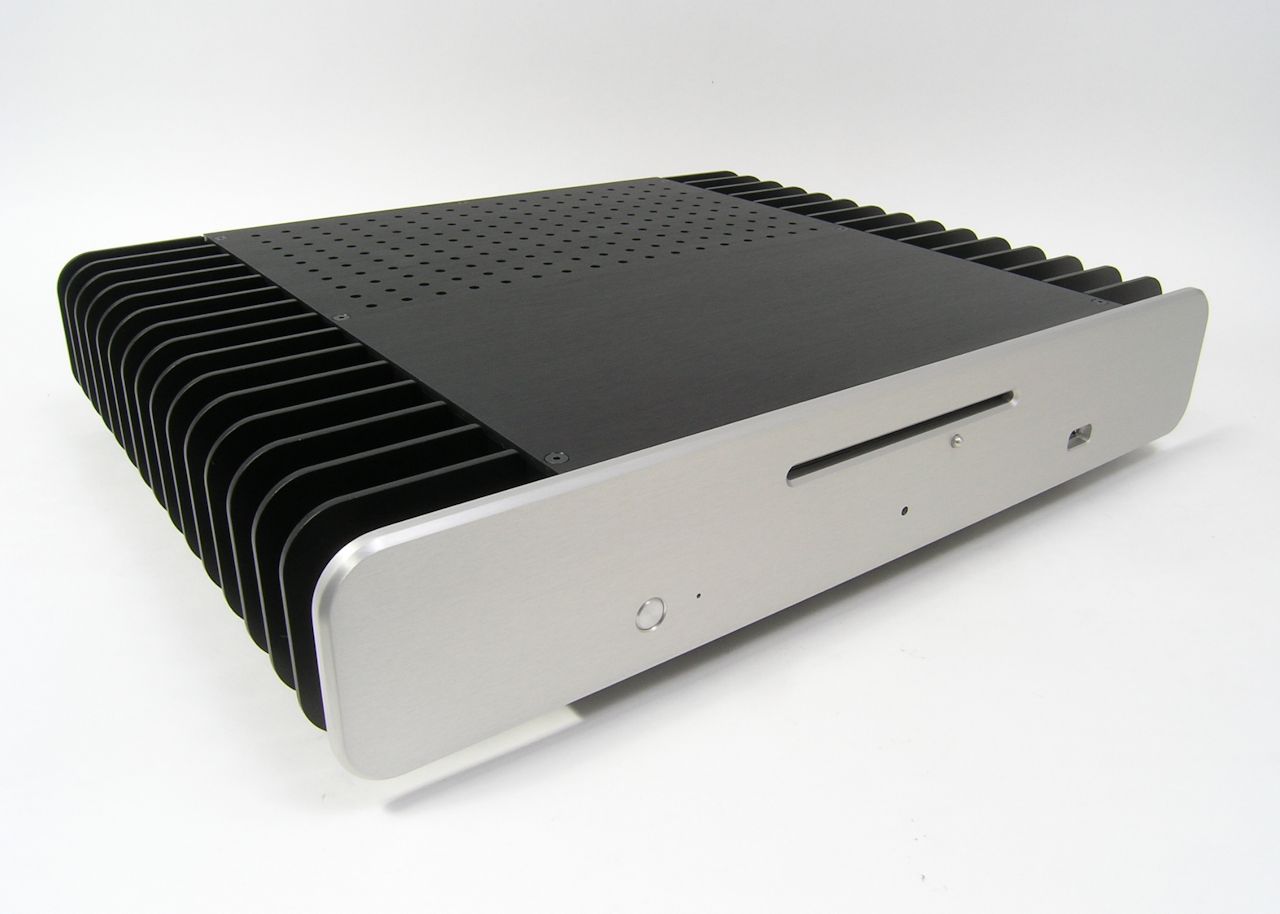

Hand-crafted 100% in the USA from the finest materials and manufacturing processes available. Every part is precision machined from thick aluminum billet for not only outstanding looks, but to increase the cooling capabilities by dispersing heat throughout the entire case.



The new HeatSync 2800HP Mini-Client was designed from the ground up as an extremely efficient, high-performance chassis with integrated solid-state HeatSync cooling system. No compromises were made in regard to performance. This allows you to pack a very powerful system into a small, low-profile package.

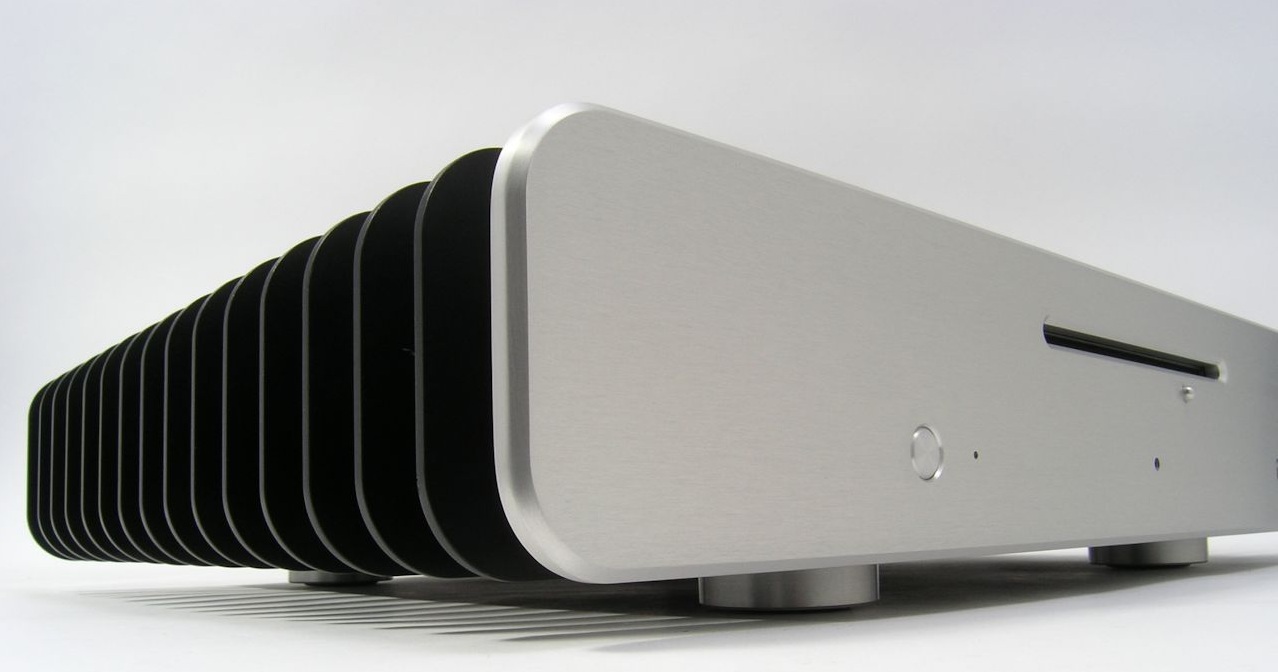

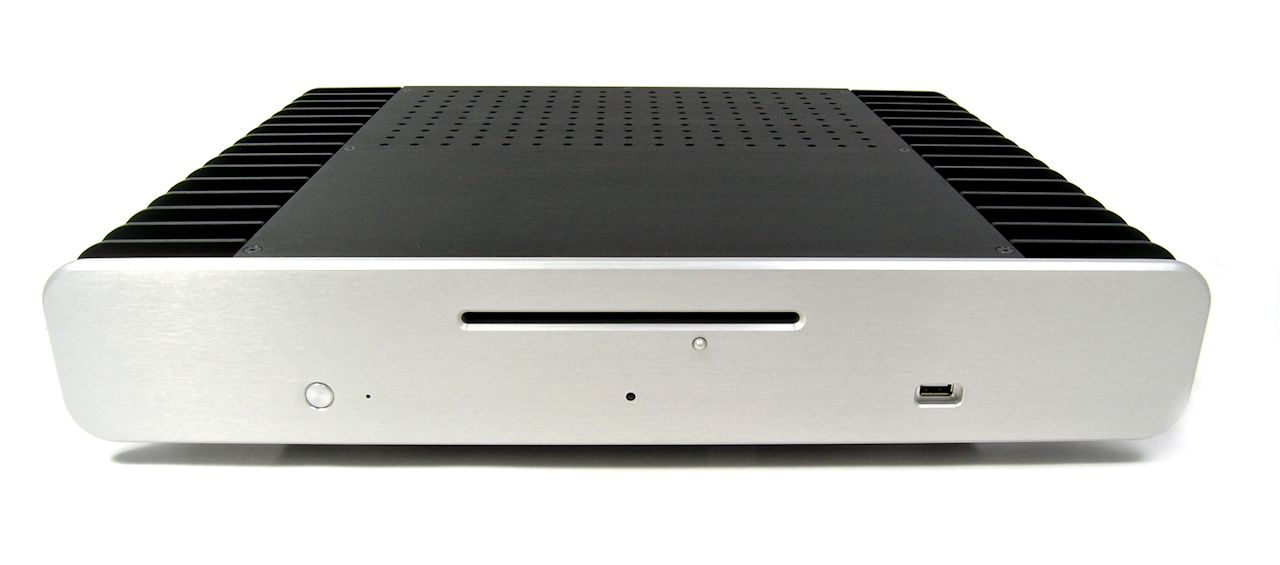

Unsurpassed attention to detail is seen all throughout the case. Each part is carefully designed for form and function, creating a beautiful entertainment PC enclosure that is at home even next to the finest audiophile components.



Completely fanless, the massive heatsinks dissipate system heat and provide a foundation for a truly silent computer system. By utilizing larger cooling fins, the cooling capacity has been increased 75% compared to our 2500 Mini-Client allowing you to run more powerful processors at lower temperatures.



The HeatSync 2800 Mini-Client will fit a number motherboards allowing you to build a system that is just right for your specific needs. Multiple hard drive mounting options are available, including up to four 2.5" HDD/SSD's or one 3.5" HDD. The drive brackets attach to the bottom panel allowing for easy removal.

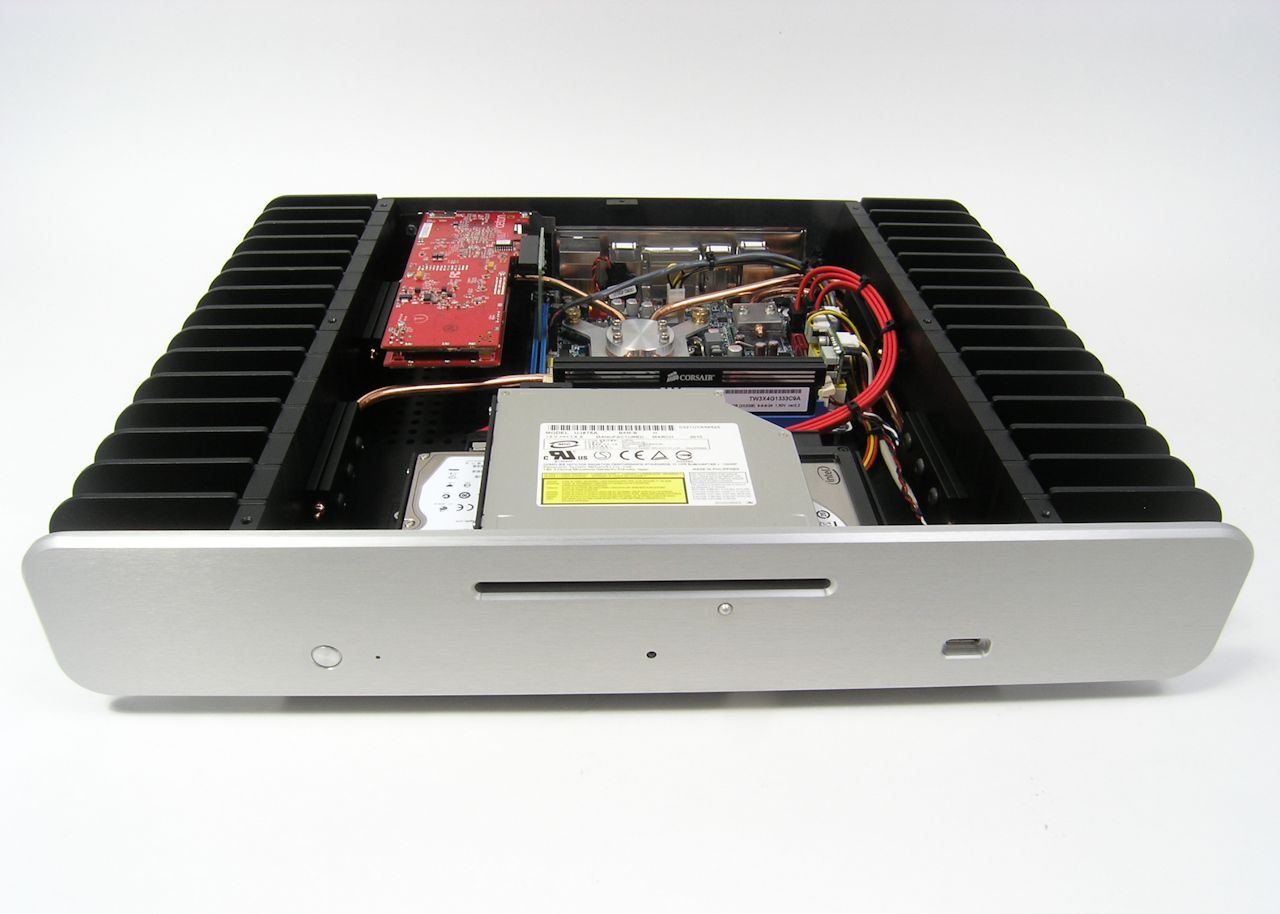

Internally, the computer components are well laid out for equal heat distribution and easy servicing. The simple back panel allows for quick and easy connection to your external components.



A 1/2 height PCIe card slot is provided in the rear panel for adding expansion cards such as a TV tuner, Audio, or RAID card.

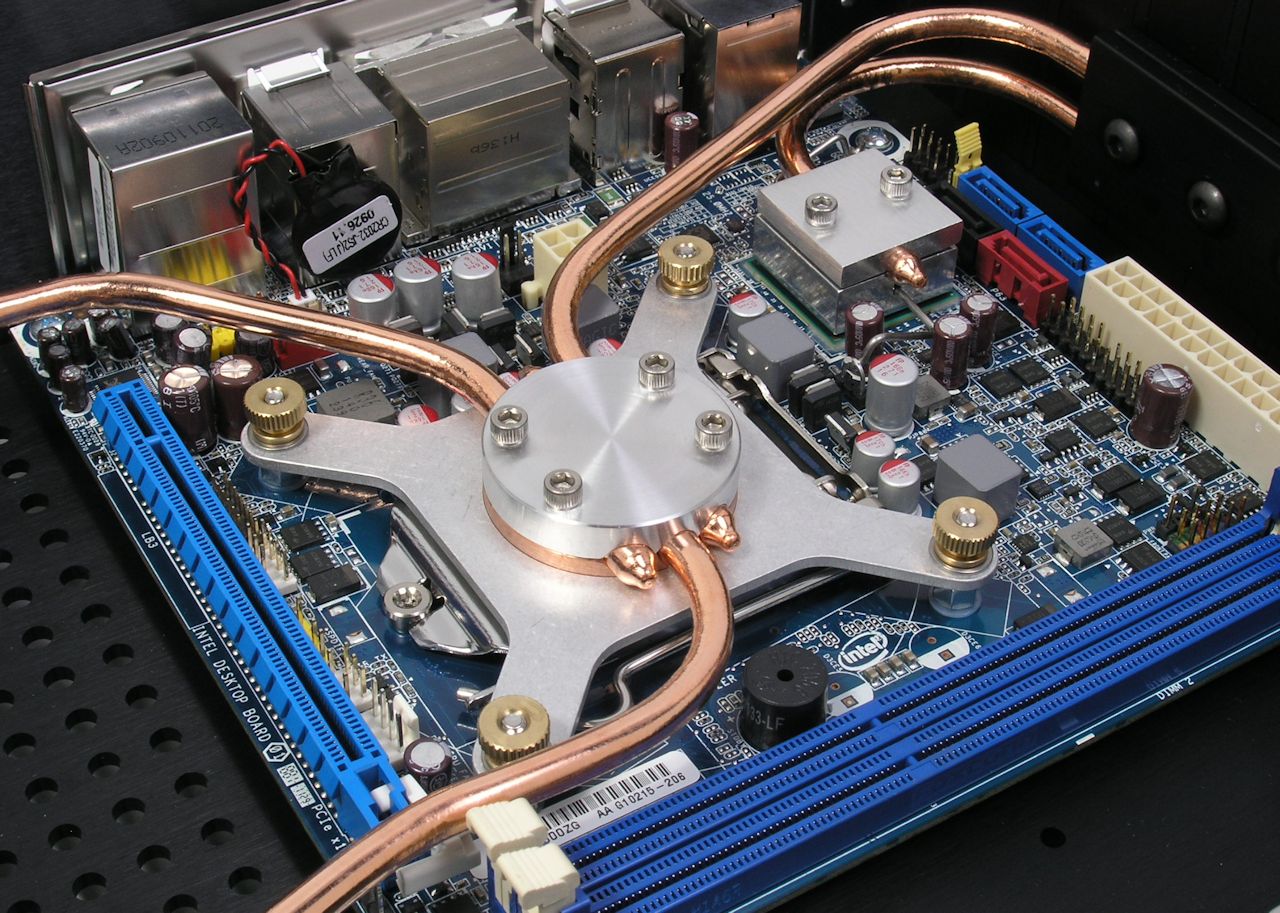

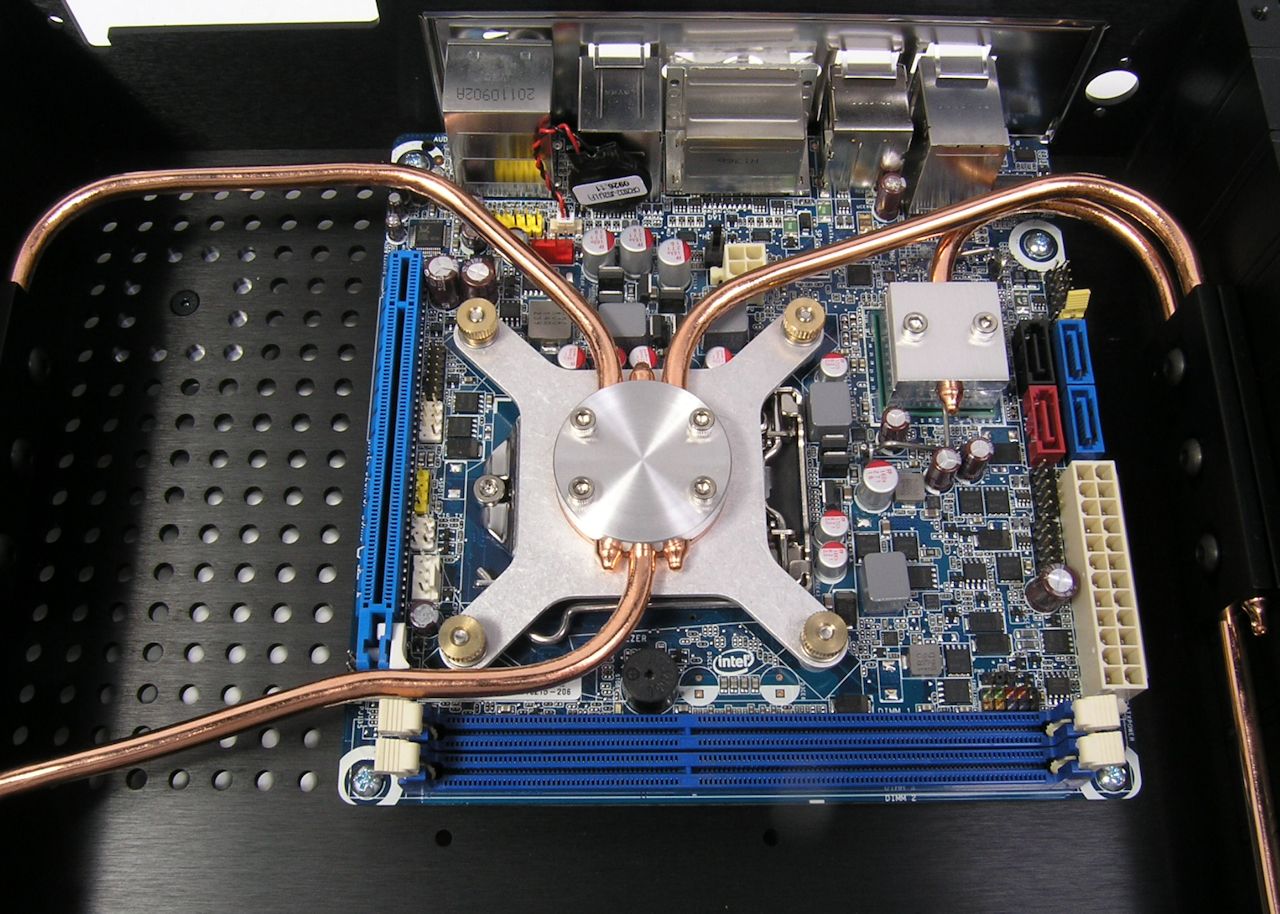

Designed specifically for each application, the highly efficient HeatSync CPU cooling system transfers heat directly into chassis. With no fans required to cool the processor or chipset, there are no moving parts or air-flow dust build-up issues. The solid-state system will be extremely reliable for years of unattended use requiring no maintenance.



Optional motherboard chipset HeatSync cooling system reduces chipset temperatures 20-30C compared to stock heatsink. By routing the heat outside the case, it reduces the motherboard and internal case temperatures resulting in a cooler running system overall.



See the Case Order Form for more pictures and ordering information

NOTE: The HeatSync 2800 Mini-Client is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!
