HeatSync NAS-8x 2.5 Series

HeatSync^® NAS-8x 2.5 Series Features: Low Profile, High Performance Case Design 100% Passively Cooled - No Fans, No Vents, No Noise! Precision CNC machined from heat-treated aircraft quality billet aluminum Heavy-duty aluminum Heatsink Case absorbs and disperses system heat Modular heatsink system increases performance and functionality Large aluminum fins optimize natural convection cooling Highly efficient HeatSync^®CPU cooling system transfers heat directly into chassis Proprietary High-Mass Drive Isolation System eliminates noise from drive vibrations Fanless External AC power adapter (optional) Fanless internal high efficiency DC-DC converter (optional) Holds up to nine 2.5" HDD's Designed for mini-ITX size motherboards only PCI or PCI-E adapter slot for RAID adapter Faceplate available with either black or silver anodized finish Standard black anodized finish on chassis Dimensions - 17.5" wide x 13.5" deep x 2.5" high (+ 3/8" with feet)
Options Include: HeatSync^® Cooling System for processor 2U one-piece rack mount faceplate Billet aluminum case feet
Click each picture for higher resolution!

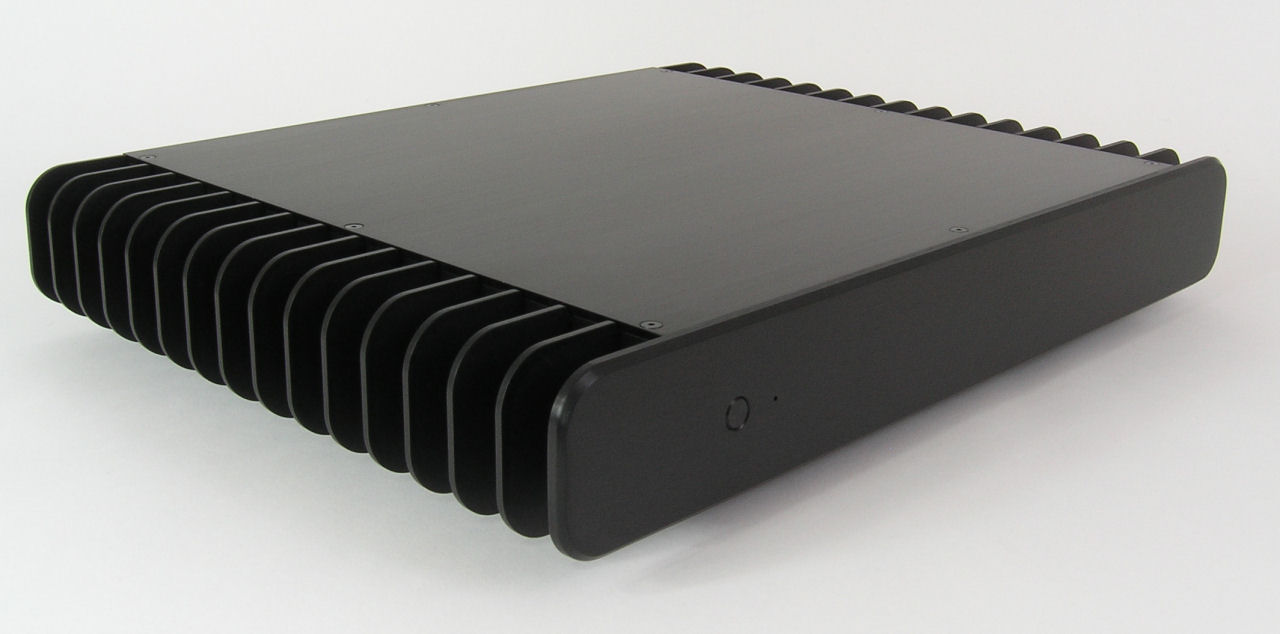

Hand-crafted 100% in the USA from the finest materials and manufacturing processes available. Every part is precision machined from thick aluminum billet for not only outstanding looks, but to increase the cooling capabilities by dispersing heat throughout the entire case.

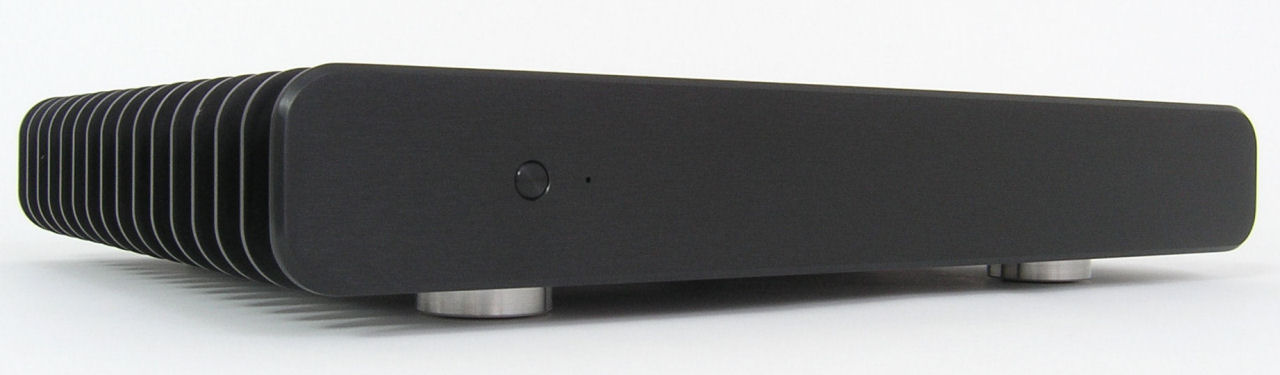

Unsurpassed attention to detail is seen all throughout the case. Each part is carefully designed for form and function, creating a beautiful enclosure that is at home even next to the finest audiophile components.

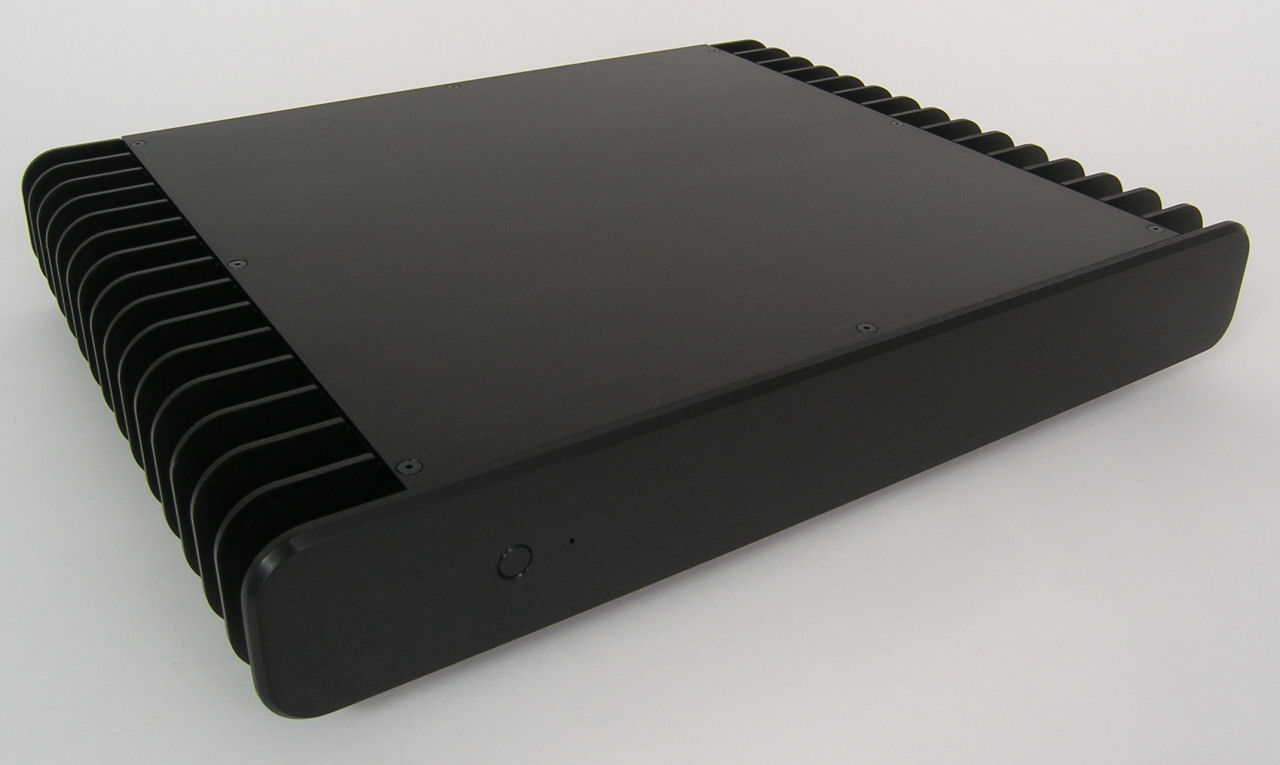

The HeatSync NAS-8x 2.5 Series case allows you to pack lots of storage capacity into a small, low-profile package. By utilizing the newest 500GB 2.5" drives, you can build a 4 Terabyte server that only consumes 48 watts of power for the entire system!

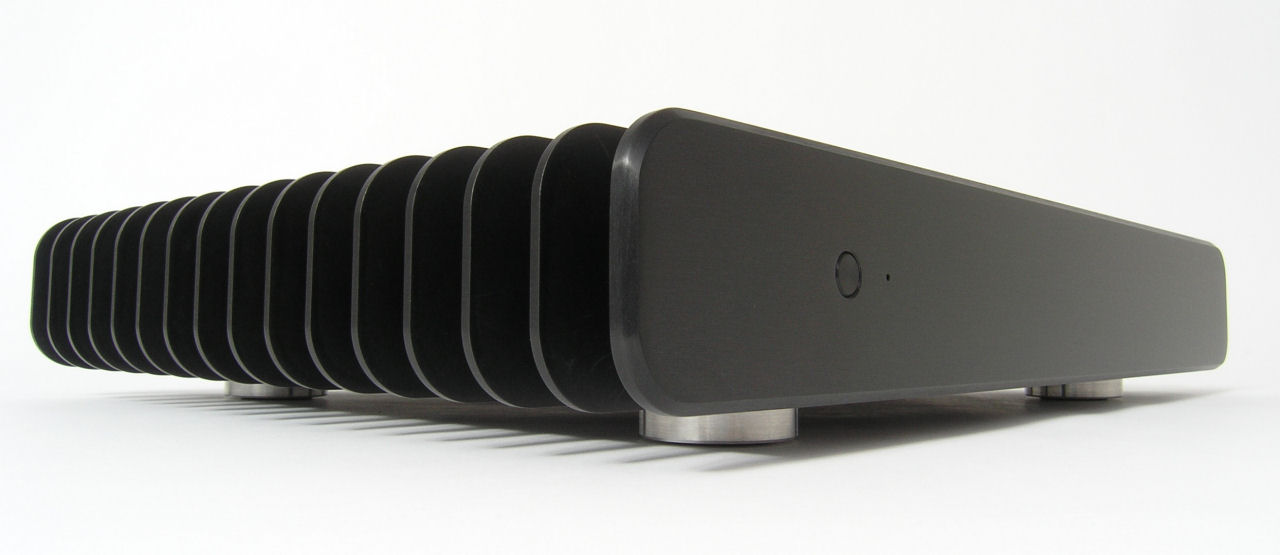

Completely fanless, the massive heatsinks dissipate system heat for a truly silent server.

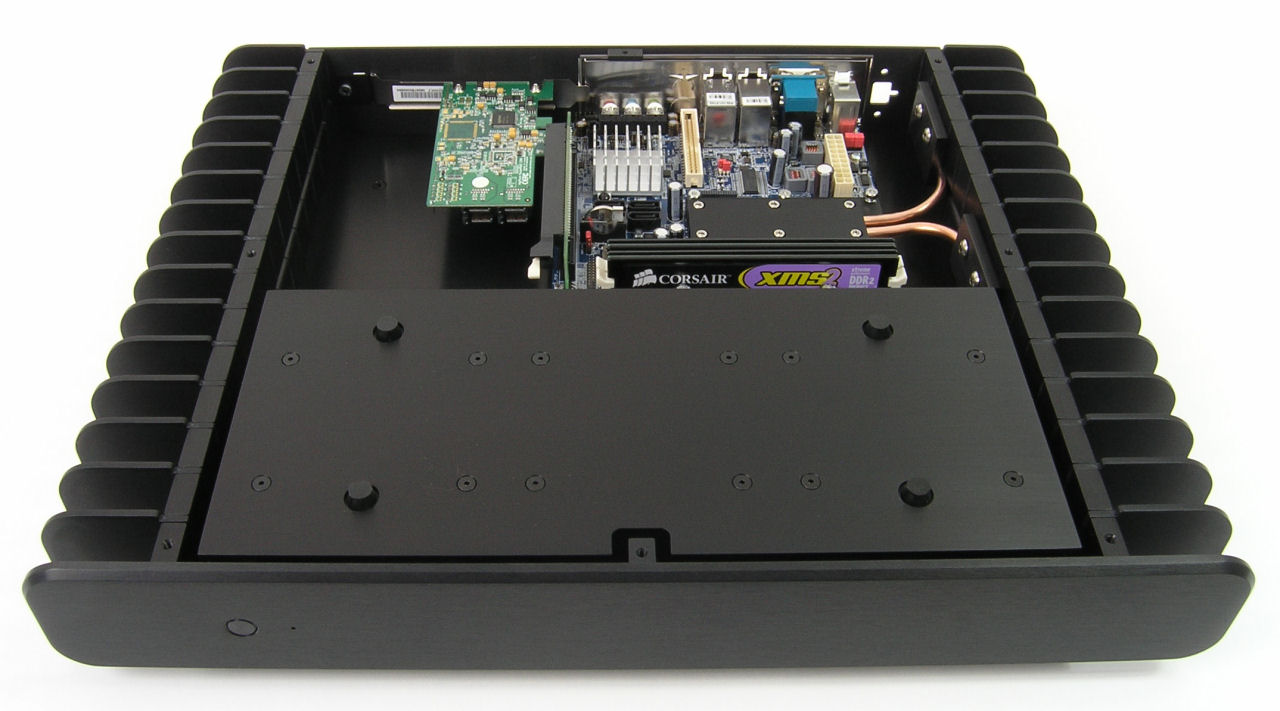

Internally, the computer components are well laid out for equal heat distribution and easy servicing. The HeatSync 2500 Mini-Client will fit a number motherboards and RAID cards allowing you to build a system for your specific needs.

The simple back panel allows for quick and easy connection to your external components. PCI or PCIe slot can hold either full height or half height RAID cards. There are many different 8-port PCIe RAID cards that can be used in the HeatSync NAS-8x 2.5 Series case. One suggestion is the Promise SuperTrak EX8350

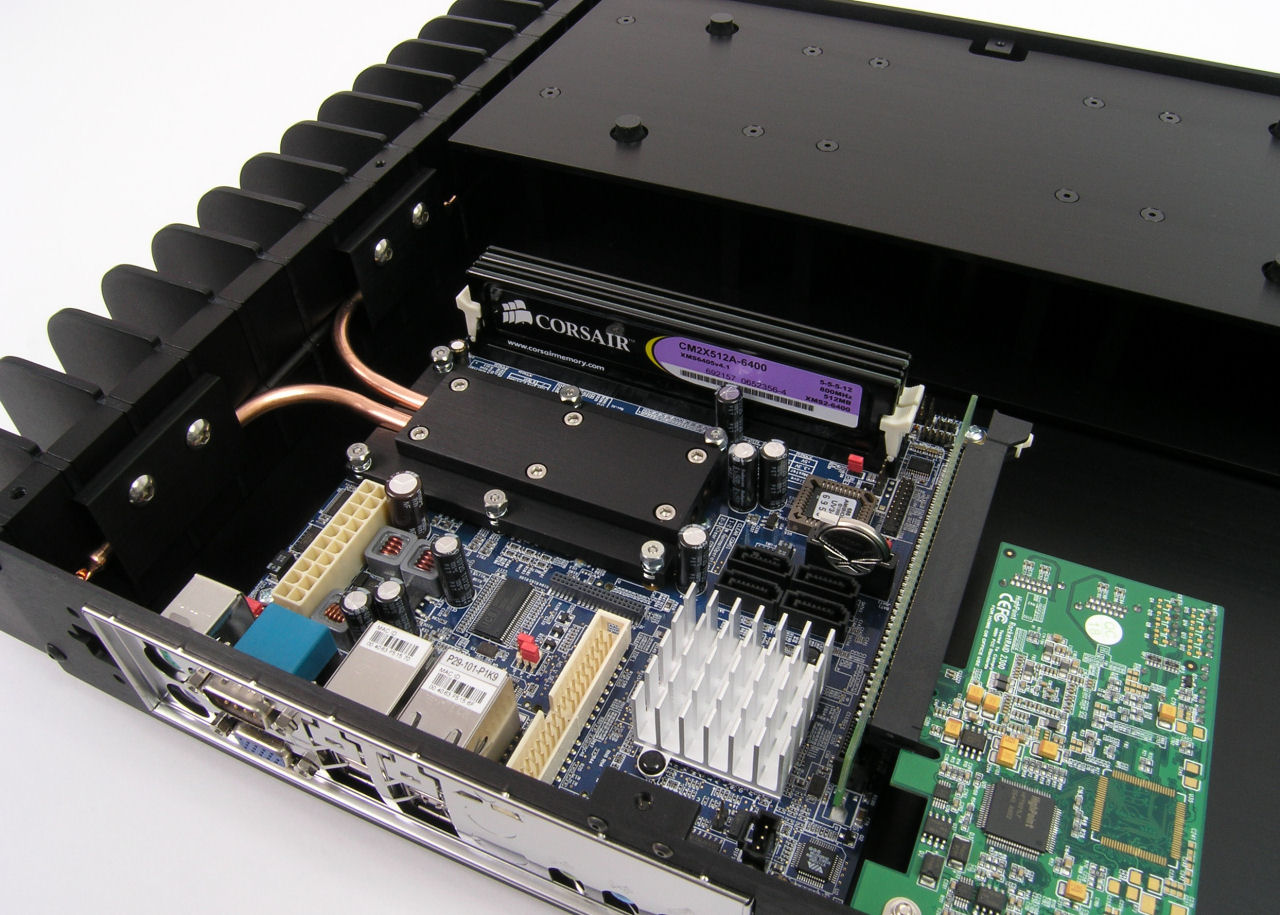

Highly efficient HeatSync^®CPU cooling system transfers heat directly into chassis. No fans are required to cool the processor. The VIA SN1800G motherboard pictured above only draws 28 watts under load, combined with the PCIe RAID card consuming 6 watts, and nine 2.5" HDD's each drawing 1.6 watts, gives a total load of only 48 watts for the entire system!

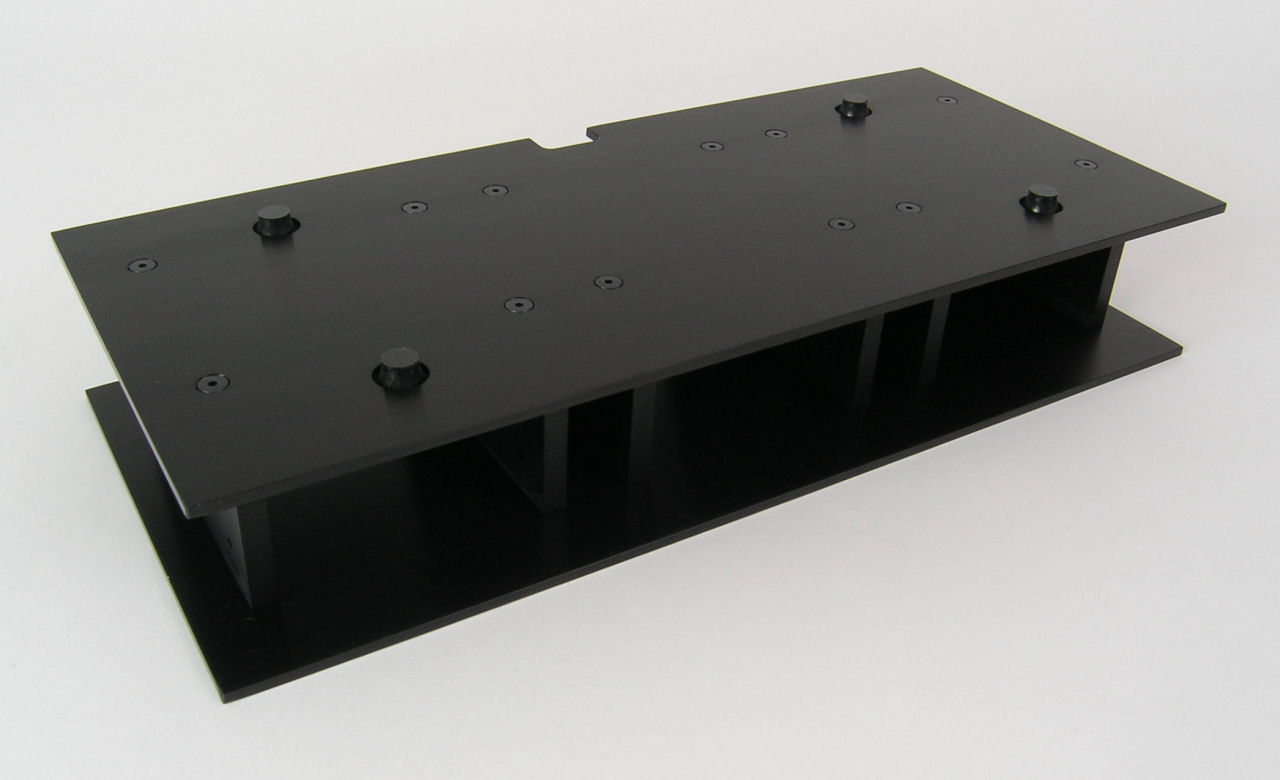

For quiet and cool operation of the hard drive, we designed a smaller version of the same isolation system used in our other Mass Storage cases. The drive module floats on specially designed isolation pads eliminating noise from vibration. The drives attach to the thick, precision-machined aluminum, vertical side plates. The side plates attach to the thick aluminum upper and lower plates which dissipate heat into the heatsink chassis. Holds up to nine 2.5" drives.
The 2.5" Series Advantage Seagate Momentus 2.5" HDD: Average read/write power 1.6 Watts Idle power 0.7 Watts Idle noise 2.3 bels Seek noise 2.6 bels Seagate 7200.1 Desktop 3.5" HDD: Average read/write power 13 Watts Idle power 9.3 Watts Idle noise 2.8 bels Seek noise 3.7 bels Conclusion: As you can see, a typical 3.5" HDD consumes almost ten times the amount of power as a 2.5" HDD. This allows you to pack more storage capacity into a smaller space and create much less heat and noise.

See the HeatSync NAS-8x 2.5 Series Order Form for more pictures and information
