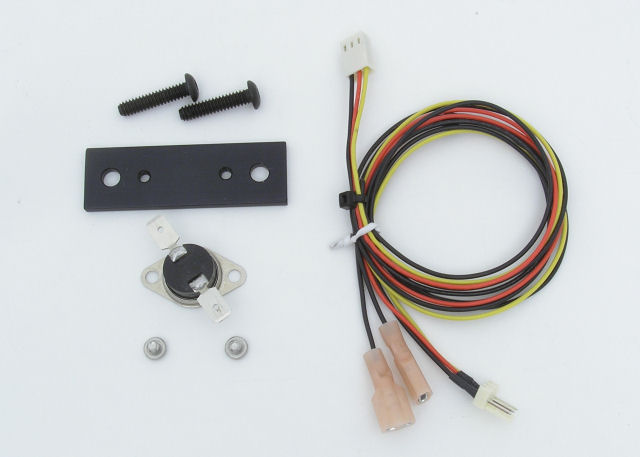

Use this kit in
HeatSync 6000 Case for
ultra-silent fan operation. Allows case fan to remain off when
system is in low demand. After system has been under load, switch
turns the fan on after case temperature reaches 40 deg C. Includes
bracket for mounting switch to heatpipe clamping plates on case.
This switch requires no electricity to operate increasing
reliability. Can be used in conjunction with fan speed controllers
for maximum versatility.
40 deg C. Thermal Switch
Switch Wiring Harness
Bracket for HeatSync 6000 case
Mounting Hardware
$35.00
Thermal Switch
This switch reacts only to thermal
affects and requires no electricity to operate. Normally open switch
closes at rated temperature sending power to fan. Can be used in
conjunction with fan speed controllers for maximum versatility.
Swivel bracket allows switch to be mounted to any flat surface.
Normally open circuit
Switch closes at rated temperature
Max load 8.5A @ 12 volts
35 C. Degree Thermal Switch .... $16.00
Resets (opens circuit) at
28C
40 C. Degree Thermal Switch .... $16.00
Resets (opens circuit) at
32C
50 C. Degree Thermal Switch ....
$14.00
Resets (opens
circuit) at 39C
60 C. Degree Thermal Switch ....
$14.00
Resets (opens
circuit) at 47C
Thermal Switch Wiring Harness
Wiring harness for connecting thermal
switch to 3-pin fan connector. Plugs into motherboard or fan speed
controller. Quick release blade connectors for connection to thermal
switch. 18" long leads reach anywhere inside case.
