Fan Cable Products
|

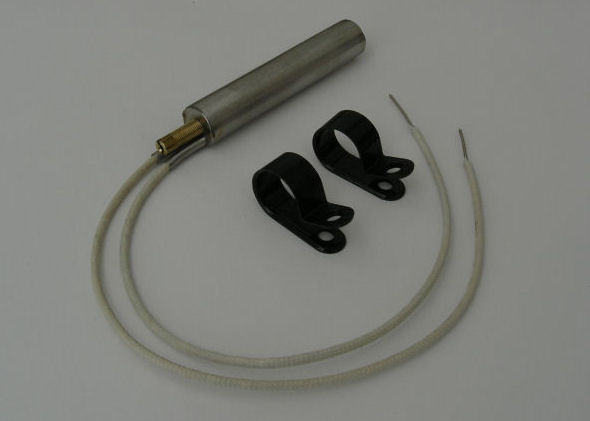

| Temperature Switch Kit |
 Temperature Switch Kit |
Use this kit in the
HeatSync 6000 Case for
ultra-silent fan operation. Allows case fan to remain off when
system is in low demand. After system has been under load, switch
turns the fan on after case temperature reaches 40 deg C. Includes
bracket for mounting switch to heatpipe clamping plates on case.
This switch requires no electricity to operate increasing
reliability. Can be used in conjunction with fan speed controllers
for maximum versatility.
- 40 deg C. Temperature Switch
- Switch Harness for fan
- Bracket for HeatSync 6000 case
- Mounting Hardware
$35.00
|
|
| Thermal Switch |
Thermal Switch |
This switch reacts only to thermal
affects and requires no electricity to operate. Normally open switch
closes at rated temperature sending power to fan. Can be used in
conjunction with fan speed controllers for maximum versatility.
Swivel bracket allows switch to be mounted to any flat surface.
- Normally open circuit
- Switch closes at rated temperature
- Max load 8.5A @ 12 VDC
- Voltage Rating 250 VAC
40 C. Degree Thermal Switch .... $15.00
Resets (opens circuit) at
32C
|
| 50 C. Degree Thermal Switch ....
$15.00 Resets (opens
circuit) at 39C
|
|
| Thermal Switch Wiring Harness |
 |
| Wiring harness for connecting thermal
switch to 3-pin fan connector. Plugs into motherboard or fan speed
controller. Quick release blade connectors for connection to thermal
switch. 18" long leads reach anywhere inside case. $15.00
|
|
| Automatic Fan Speed Controller |
Automatic Fan Speed Controller |
| This Fan
Speed Controller is compact in size for easy mounting in any location. Linear response curve for smooth
ramp up. Load stabilized output for consistent speed. 12 volt
start-up circuit spins fan at full speed during start up to ensure reliable
operation. One controller can be used with two case fans using a
fan splitter cable. Most motherboards can handle the current of two small
fans per connector. Typical speed range is around 1700---2500
RPM. If you want to constantly run your fan at a precise RPM- get
the fan
speed cable instead. |
|
$15.00 |
|
| Fan Speed Control Cable |
|
| The fans used in this case are the slowest speed
available in a 70mm size. However, I prefer to run them even slower
for reduced noise. Stock fan speed is 3300 RPM, this speed is fine for
remote installations where noise is not a concern or where maximum
cooling is desired. Advanced users can easily make/modify their own
cables. Cable is just a standard fan extension cable with a resistor
installed inline to reduce the current to the fan.
Note: There are many variables to optimum fan speed. You may want to run the fans faster with a hot video card.
A cool running system can run the fans at slower speeds. For quiet cooling of your Radeon, see the
Mass-Air
Heatsink System. |
|
|
Recommended fan speeds:
-
00 ohm = 3300 RPM (>3 GHz)
-
33 ohm = 2500 RPM (2.8 - 3 GHz)
-
47 ohm = 2300 RPM (2.5 - 2.8 GHz)
-
68 ohm = 2000 RPM (2.0 - 2.5 GHz)
-
82 ohm = 1600 RPM (1.8 - 2.0 GHz)
-
100 ohm = 1300 RPM (<1.8 GHz)
For lower noise, slower speeds can be used. Get a
few sizes to see what works best in your system. |
|
| Fan Extension Cable |
 |
|
18" long 3-pin fan
extension cable. Use this cable to extend the reach of your fan cable
or to build your own fan speed cable.
|
|
| Fan Splitter Cable |
|
|
Use this cable to connect
two case fans to a single three pin header. Allows two fans to be
used with one fan speed controller. 3-pin connectors for fans with
tach signal. |
|
$3.00 |
|
