Detailed Information - Case Order Form - Complete Systems


Mass-Storage 2500 Features:
  • 100% Made in the USA

  • Low Profile, High Performance, Direct Attach Storage Case
  • Proprietary High-Mass Drive Isolation System eliminates noise from drive vibrations
  • Passively Cooled Design - No Fans!
  • Large aluminum fins optimize natural convection cooling
  • Heavy-duty aluminum Heatsink Case absorbs and disperses heat
  • Precision CNC machined from thick heat-treated aircraft quality aluminum plate
  • Fanless internal high efficiency DC-DC converter
  • Fanless External AC power adapter
  • Holds up to four 3.5" or eight 2.5" HDD's
  • Faceplate available with either black or silver anodized finish

  • Standard black anodized finish on chassis

  • Outstanding workmanship and finish quality

  • Dimensions - 17-1/2" wide x 13" deep x 2-1/2" high (+ 3/8" with feet)

Options Include:

  • Mounting plates for four 3.5" or eight 2.5" HDD's
  • USB 3.0 adapter with built-in hardware RAID 0,1,5

  • eSATA adapter with built-in hardware RAID 0,1,5

  • Multilane to SATA adapter for direct connection to host

  • 2U one-piece rack mount faceplate

  • Billet aluminum case feet

 Click each picture for higher resolution!  (turn off image resizing for best quality)

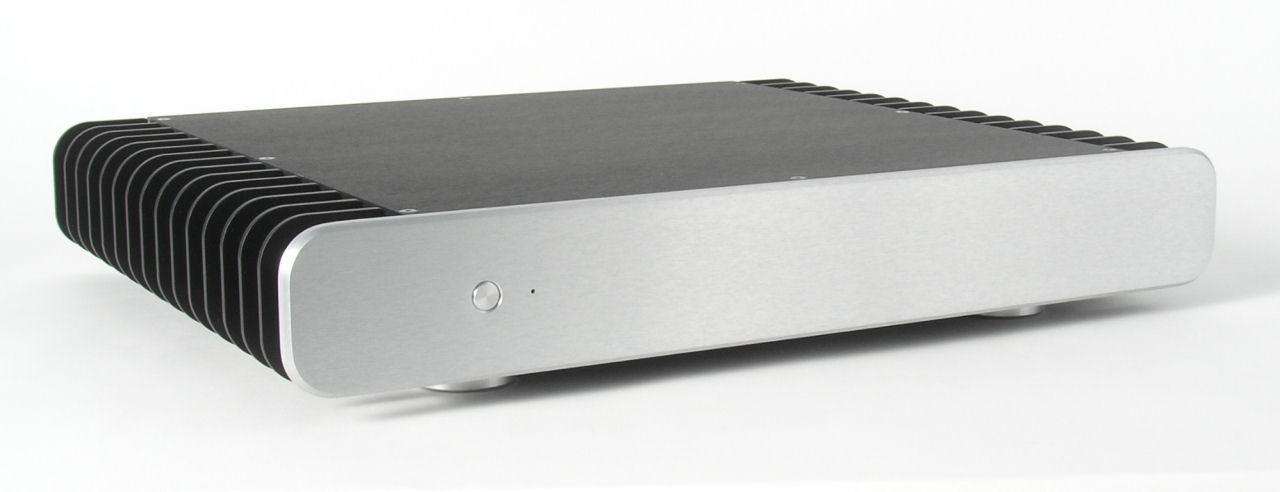

Hand-crafted 100% in the USA from the finest materials and manufacturing processes available. Every part is precision machined from thick aluminum billet for not only outstanding looks, but to increase the cooling capabilities by dispersing heat throughout the entire case.

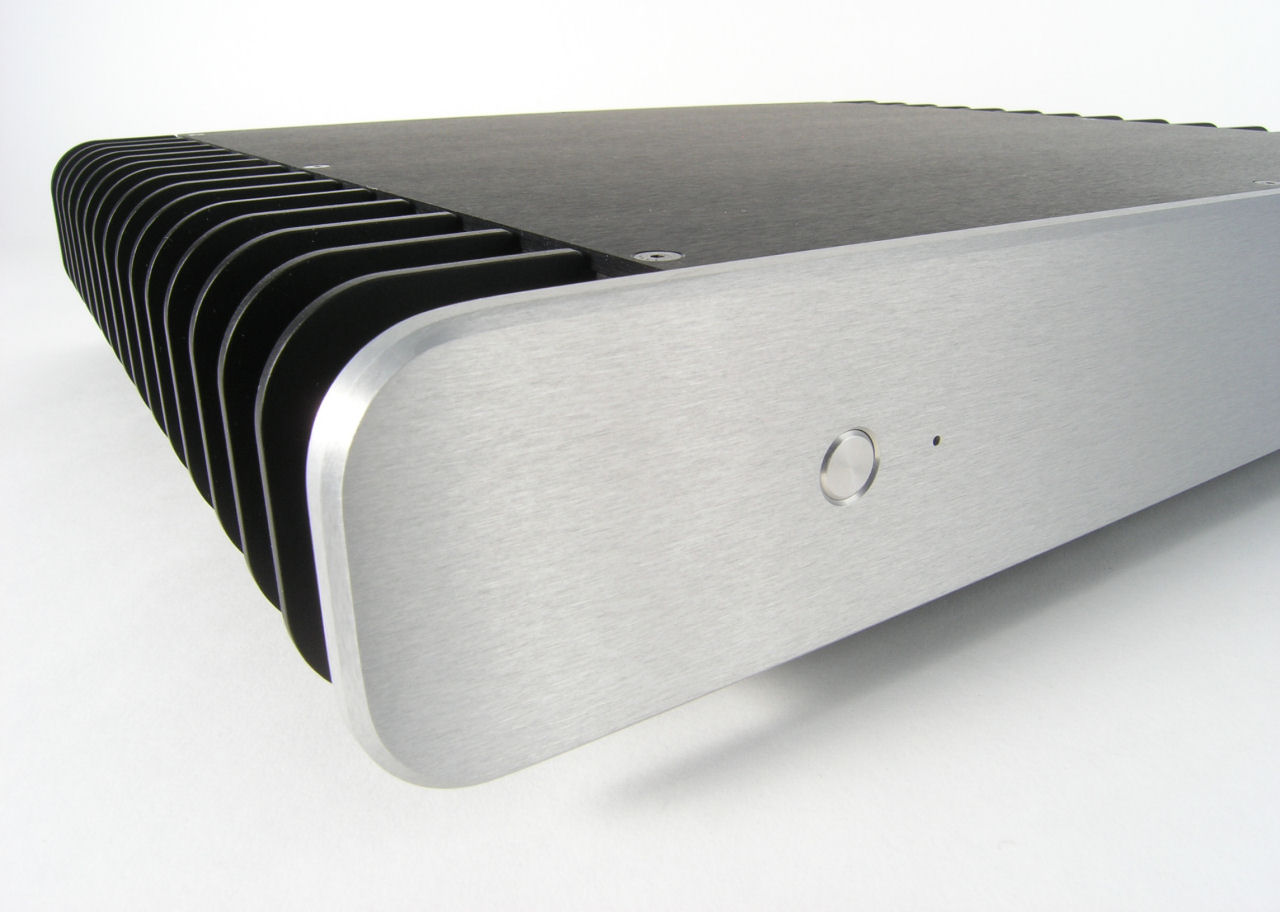

Unsurpassed attention to detail is seen all throughout the case. Each part is carefully designed for form and function, creating a beautiful storage enclosure that is at home even next to the finest audiophile components.

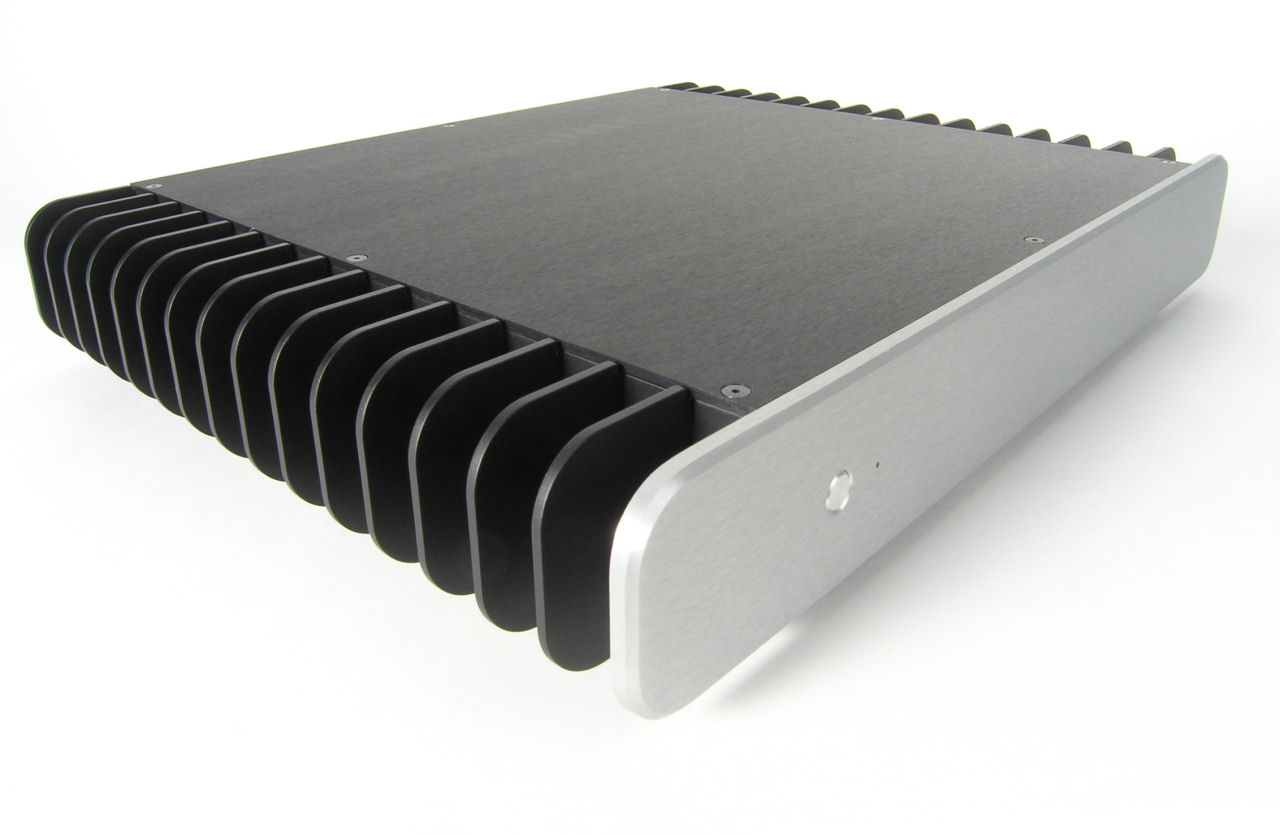

Completely fanless, the massive heatsinks and thick plate construction dissipate heat and provide a solid foundation for suppressing drive vibrations and internal sound waves

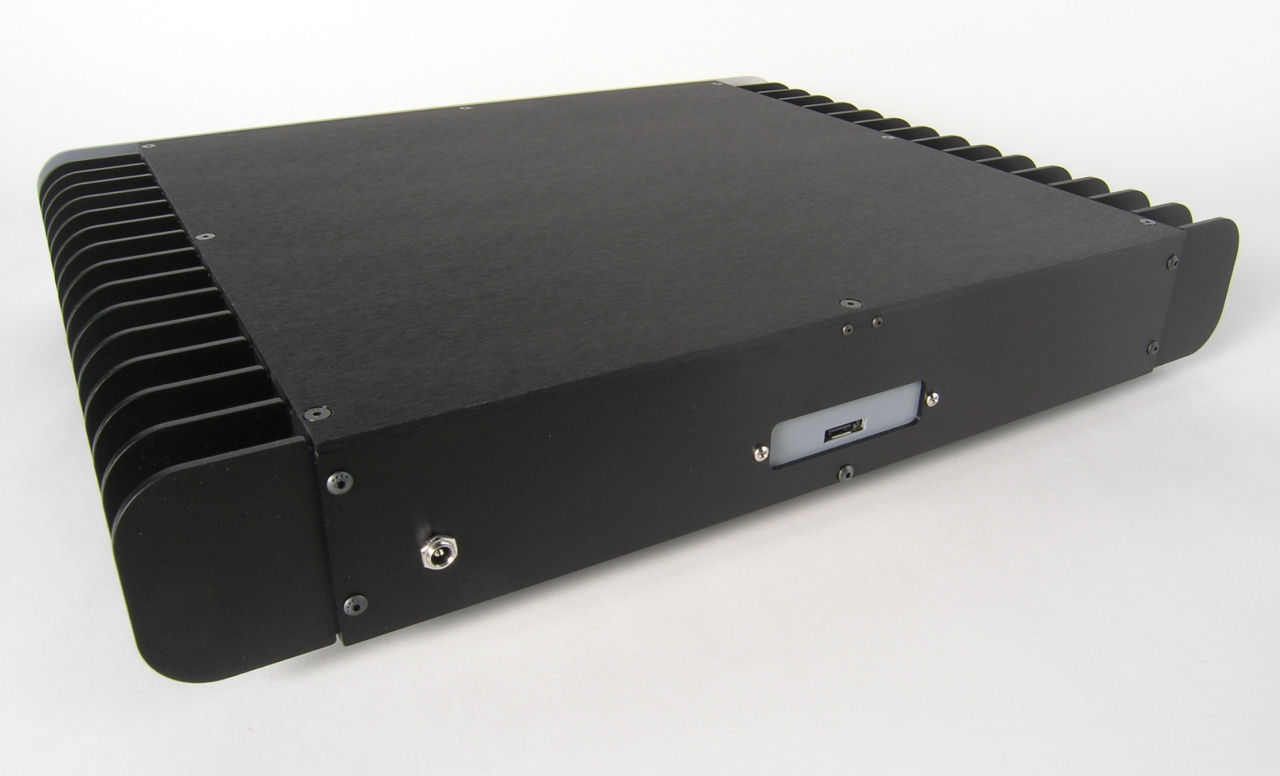

The simple back panel allows for quick and easy connection. The rear panel utilizes a standard Centronics style cut-out opening with a choice of eSATA or Multilane adapter. The optional new USB 3.0 and eSATA adapter features built-in hardware RAID giving you the full advantage RAID without the need for adding a RAID card to the host PC. This is a great option for our Micro-Client 300 and Mini-Client 2500 systems.

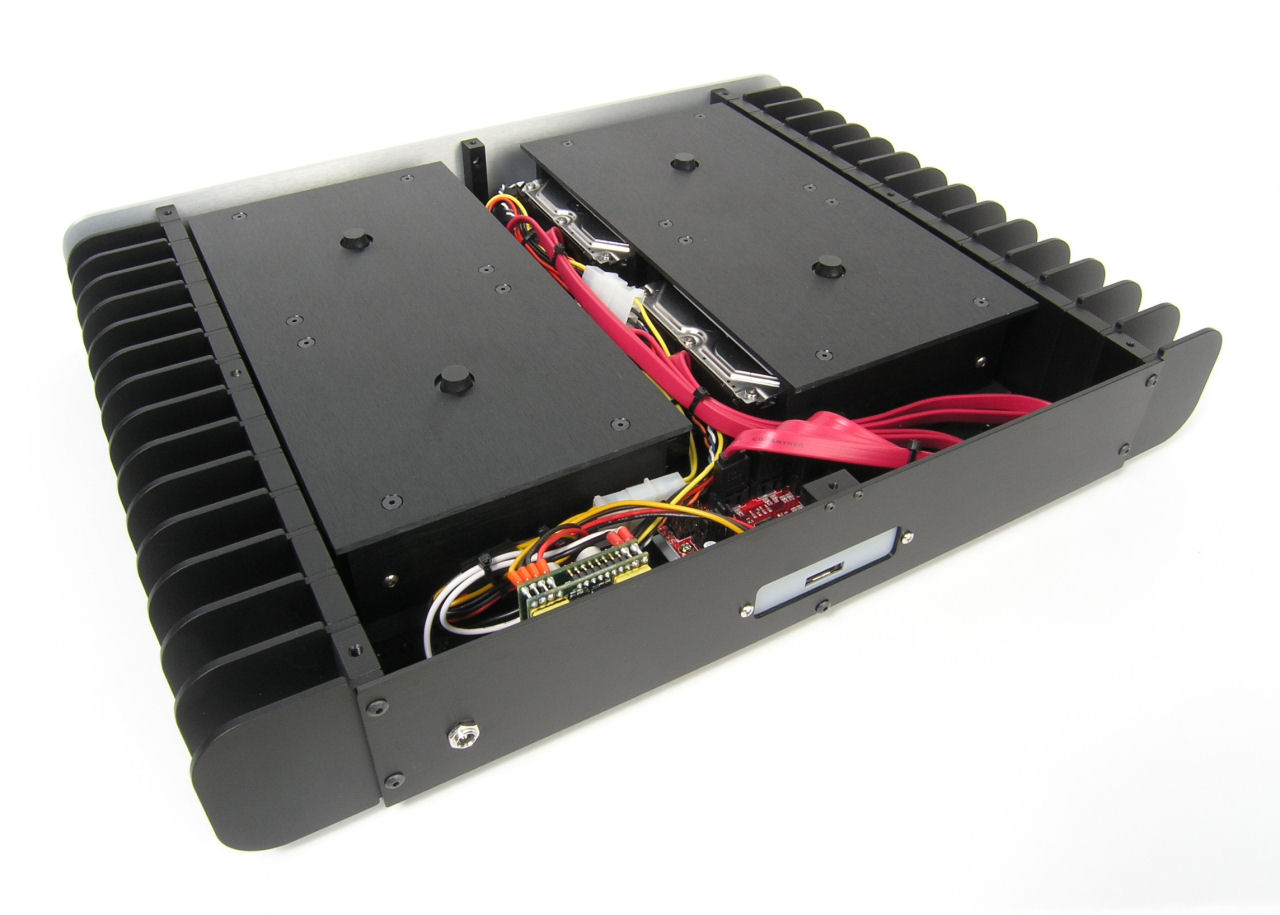

Internally, the components are well laid out for equal heat distribution and easy servicing. Inside the outer case shell is the isolated inner chassis which holds the hard drives. Two different inner chassis's are available, one for holding four 3.5" HDD's and one for holding eight 2.5" HDD's.

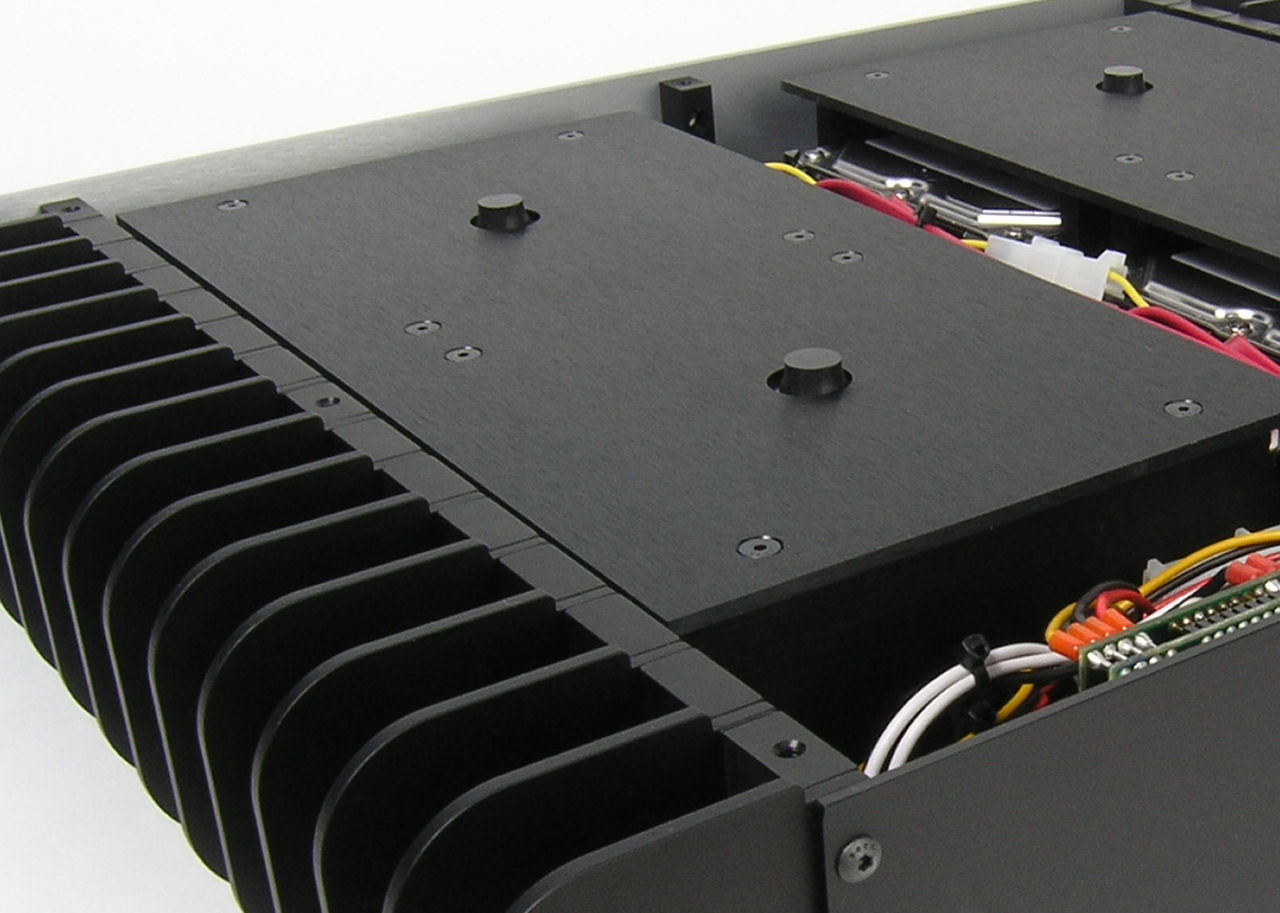

The heavy inner chassis floats on small isolation pads to dampen vibrations from the drives. With just a thin gap between the opposing inner and outer plates, heat is transmitted by radiation to the outer shell without any mechanical contact. This allows the outer case shell to dissipate the heat while preventing noise from drive vibrations.



See the Case Order Form for more pictures and ordering information

NOTE: The Mass-Storage 2500 is also available fully assembled with hard drives and ready to run, see Complete Systems for details.
