Detailed Information - Case Order Form - Complete Systems


Detailed Information
  • 100% Made in the USA

  • Heavy-duty chassis constructed from heat-treated aircraft quality aluminum

  • Modular heatsink system increases performance and functionality

  • Large aluminum fins optimize natural convection cooling
  • Highly efficient HeatSync CPU cooling system transfers heat directly into chassis
  • Integrated HeatSync GPU video card cooling system
  • HDD Isolation System to eliminate noise from vibrations

  • Machined billet aluminum power and eject button

  • Designed for ATX or mATX size motherboard

  • Fits ATX power supply up to 170mm in length

  • Holds expansion cards up to 11.50" long

  • Low profile, slim-line, slot-loading DVD drive mounting

  • Mounting for one 3.5" hard drive or two 2.5" hard drives

  • Faceplate available with either black or silver anodized finish

  • Standard black anodized finish on chassis

  • Outstanding workmanship and finish quality

  • Dimensions - 17-1/2" wide x 12.50" deep x 6-1/2" high (+ 3/8" with feet)

Options Include:

  • HeatSync Cooling System for processor
  • HeatSync Cooling System for video card
  • Touch-screen display

  • VFD display

  • DVD control buttons

  • PowerMate control knob

  • IR receiver

  • USB port

  • Blue or green power status LED

  • 4U one-piece rack mount faceplate

  • Billet aluminum case feet

   Click each picture for higher resolution!  (turn off image resizing for best quality)

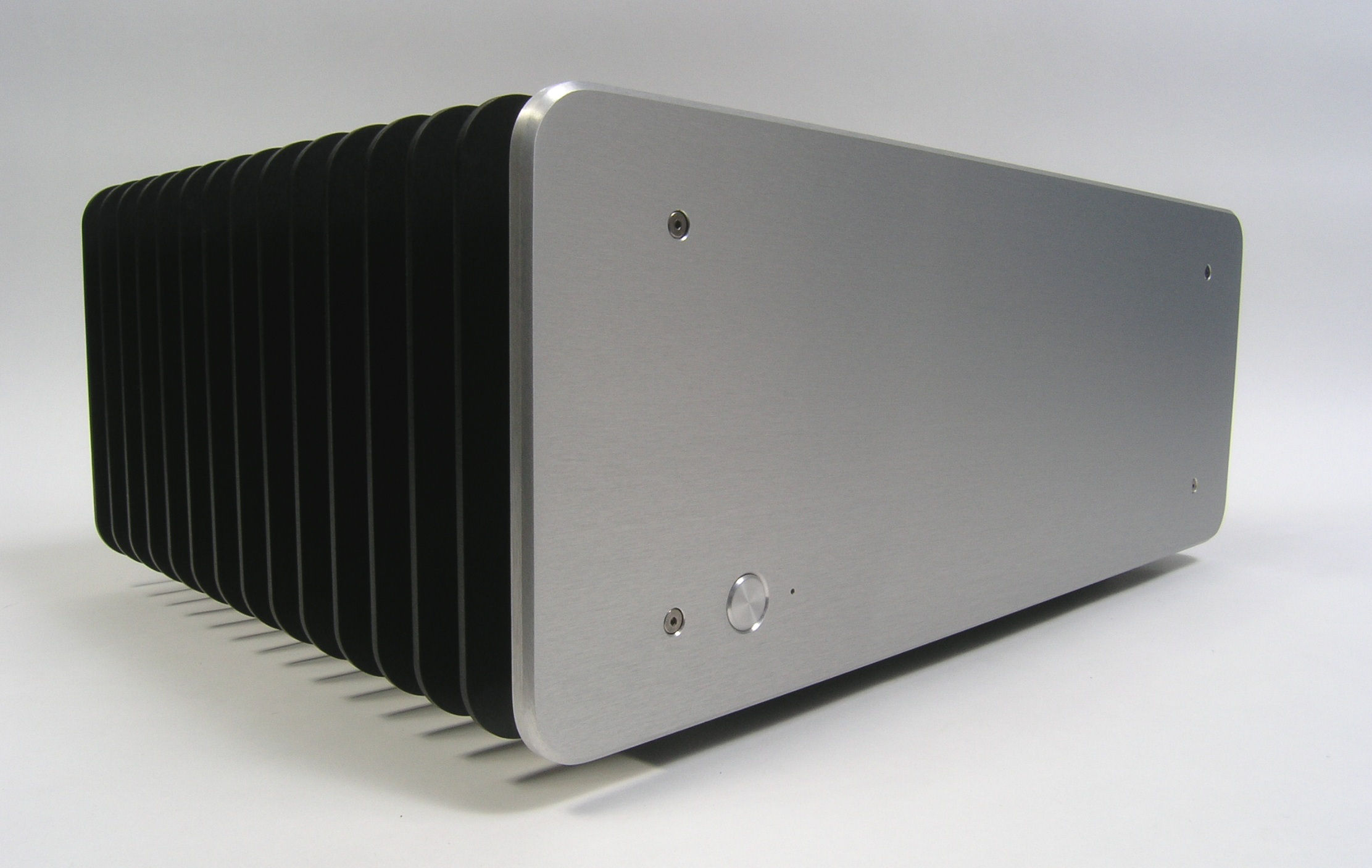

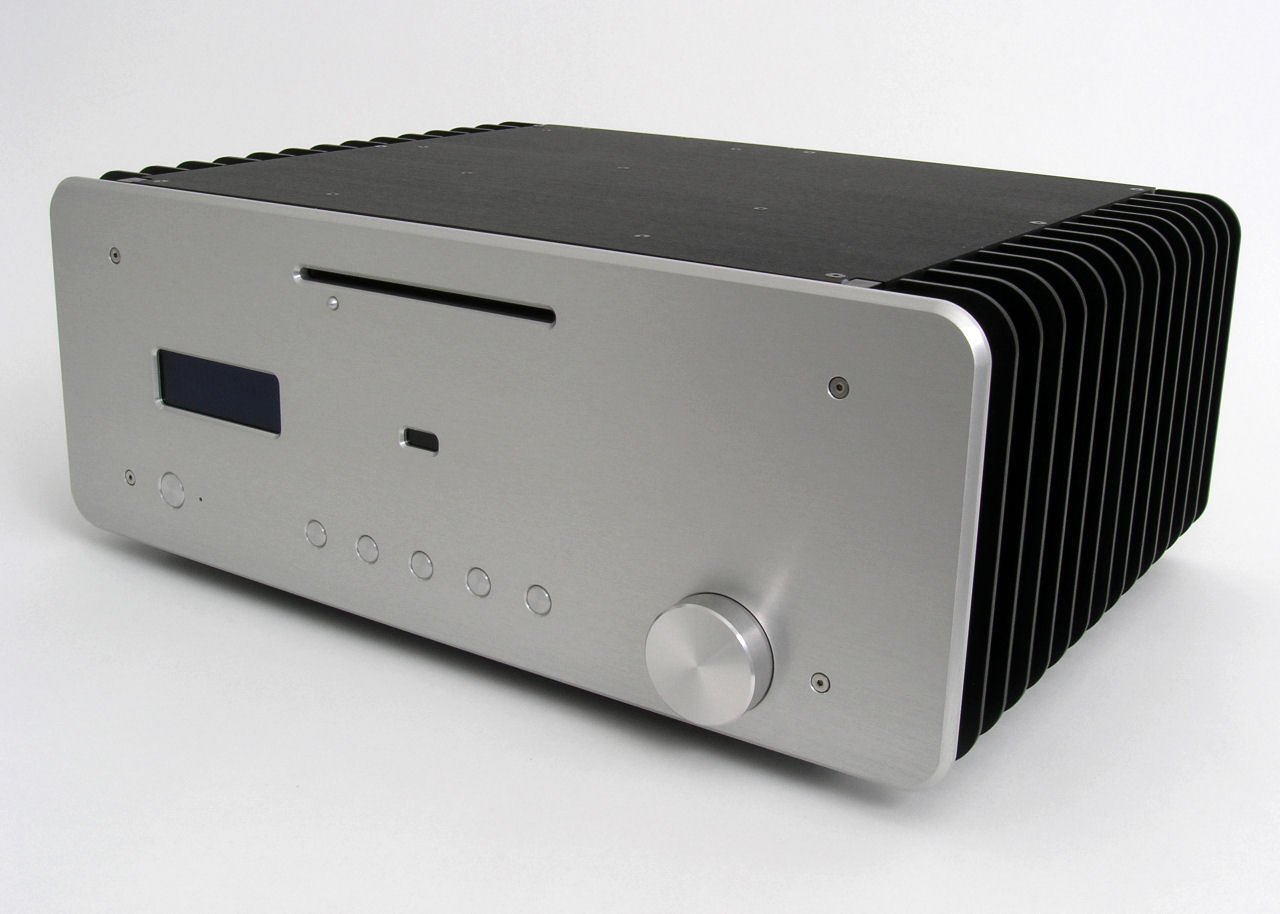

The HeatSync 7000 Case is our highest-performance, silent entertainment PC enclosure featuring state-of-the-art HeatSync cooling technology.

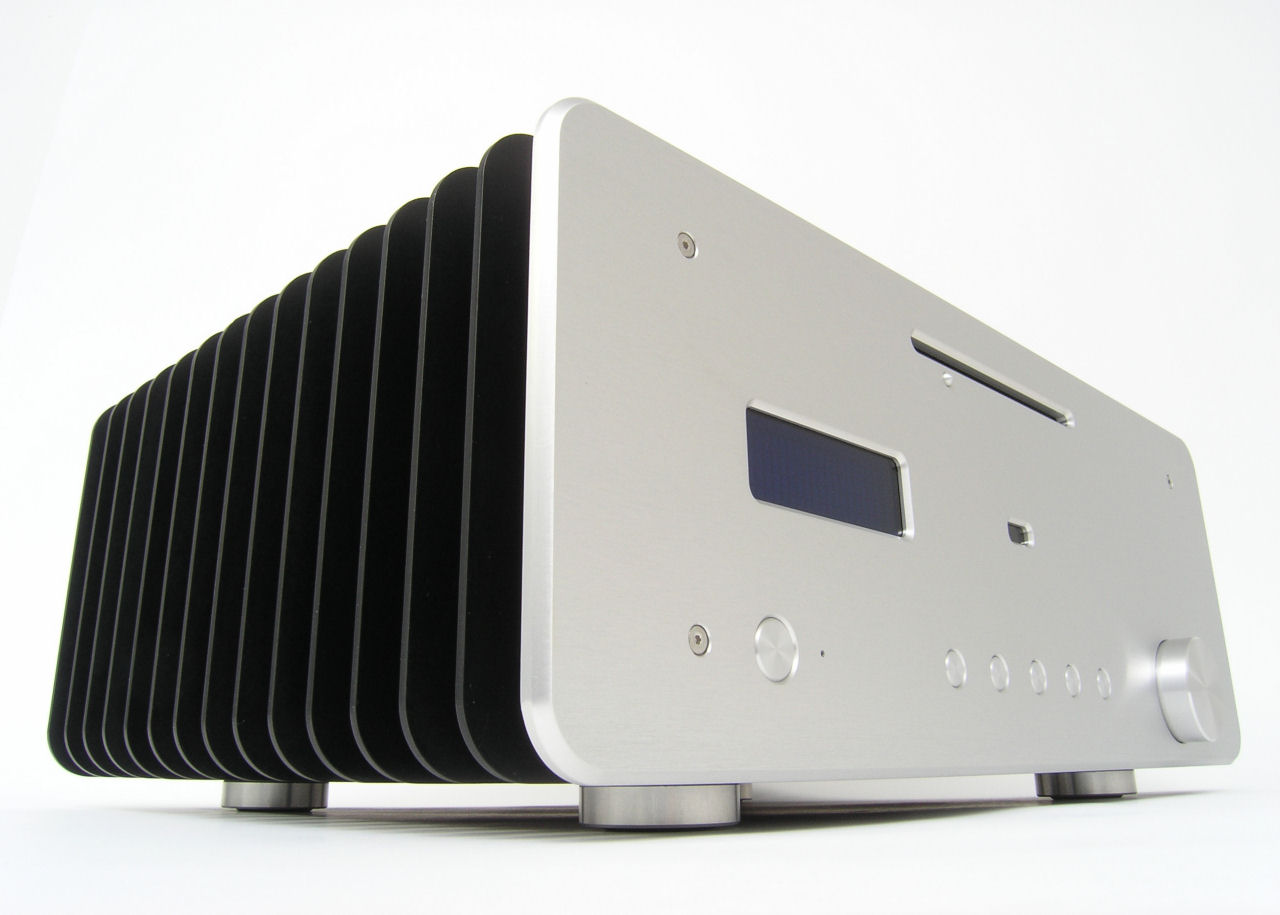

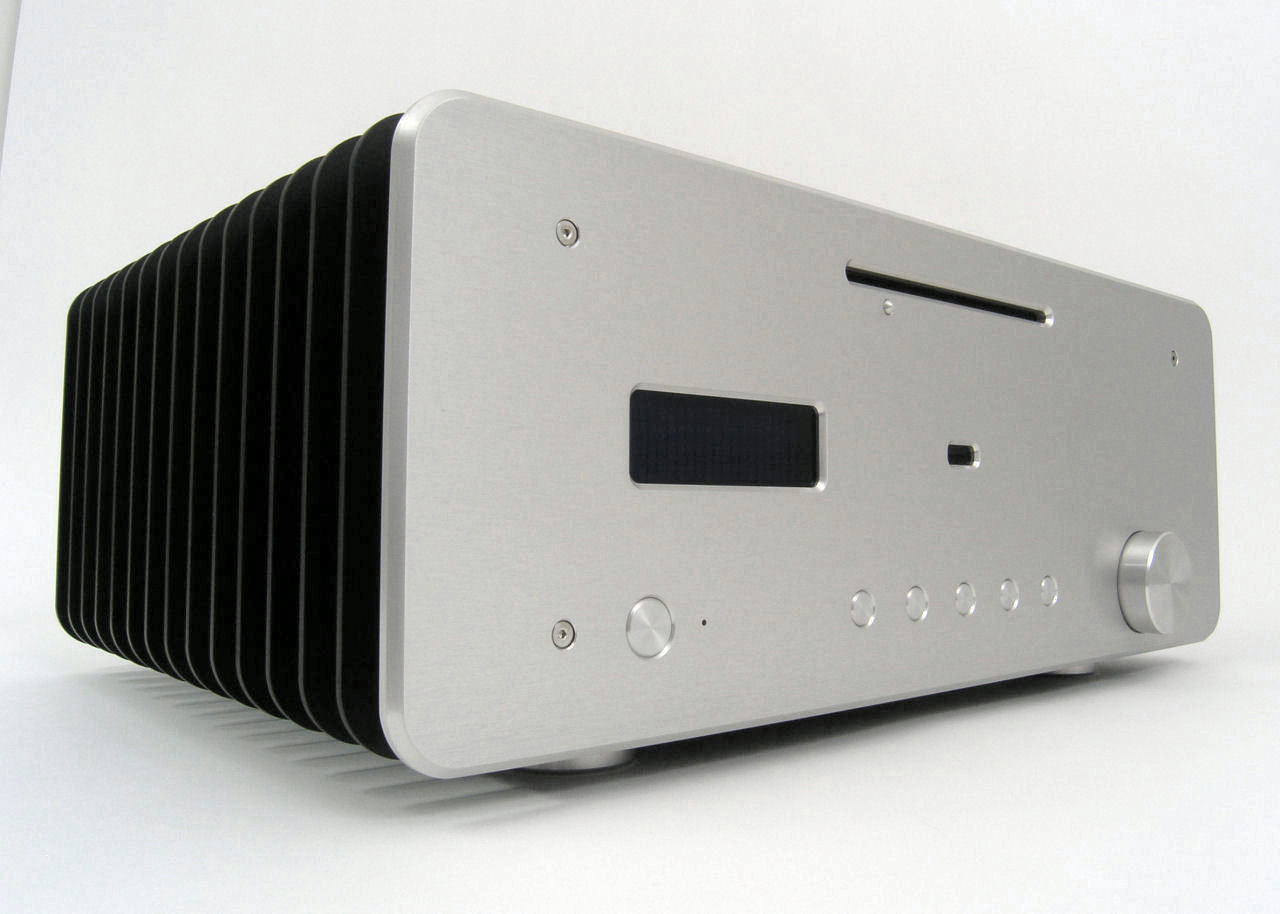

Each case is hand-crafted 100% in the USA from the finest materials and manufacturing processes available.  Carefully designed for form and function, the result is a beautiful enclosure that is at home even next to the finest audiophile components.

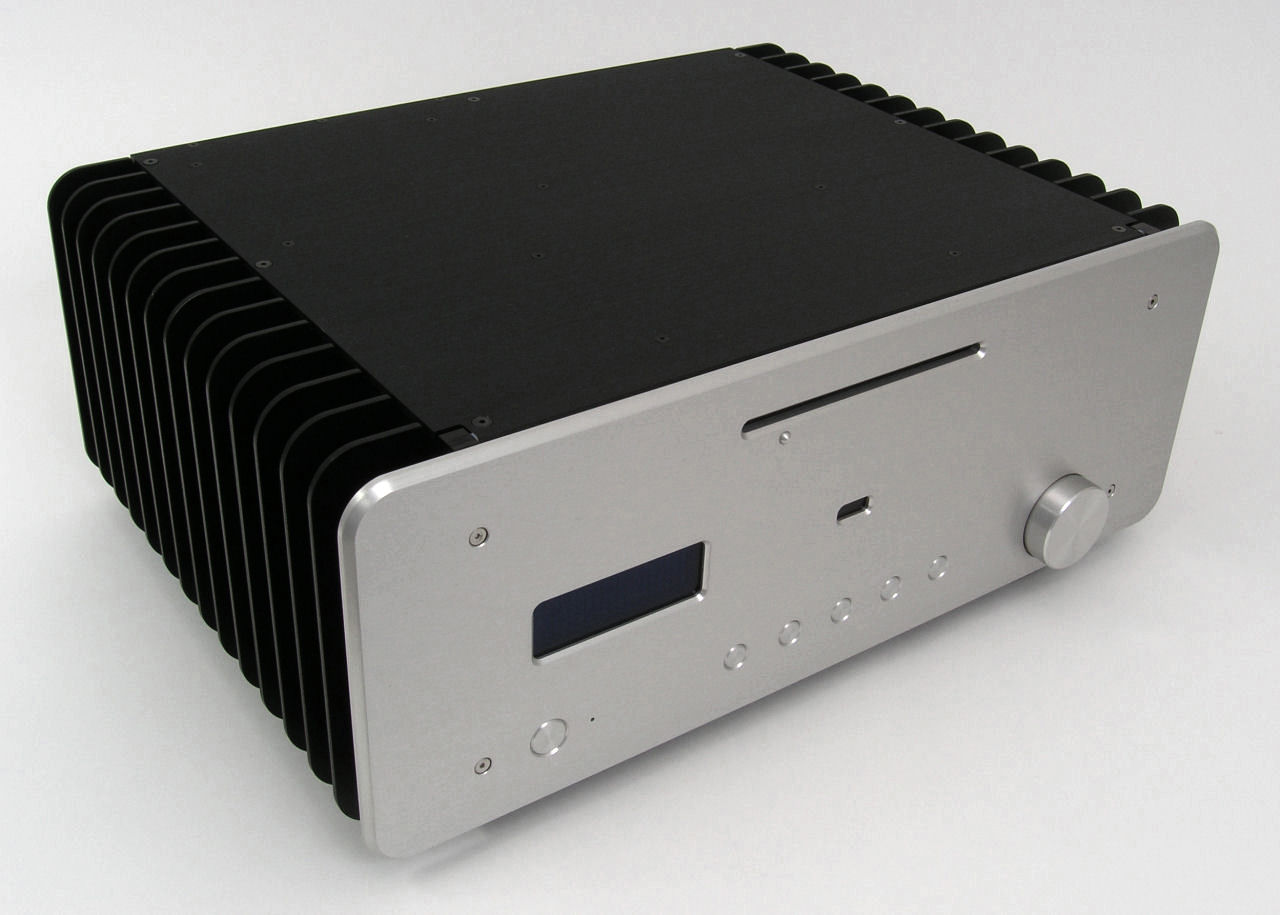

Every part on the case is carved from thick aluminum for extreme durability and outstanding looks.

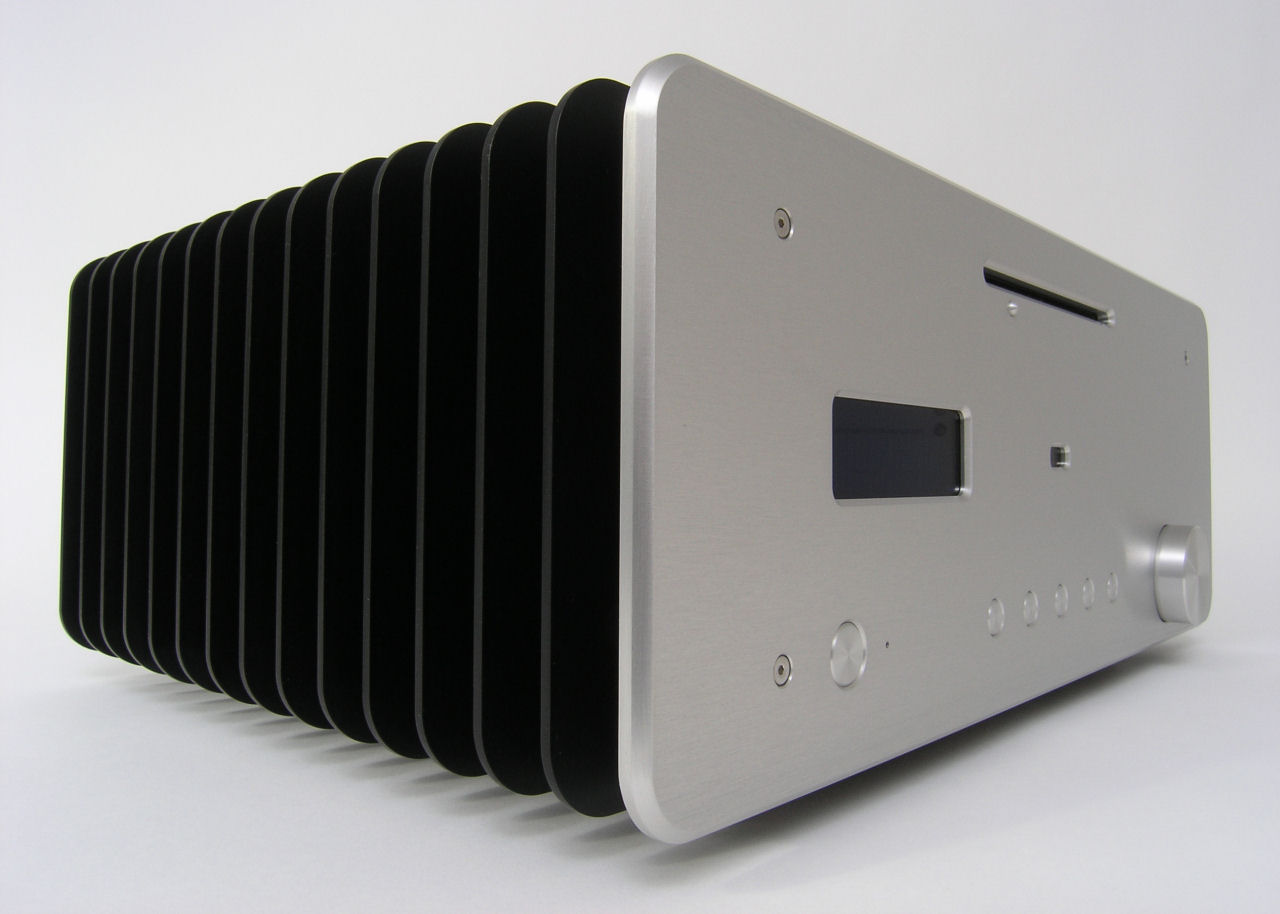

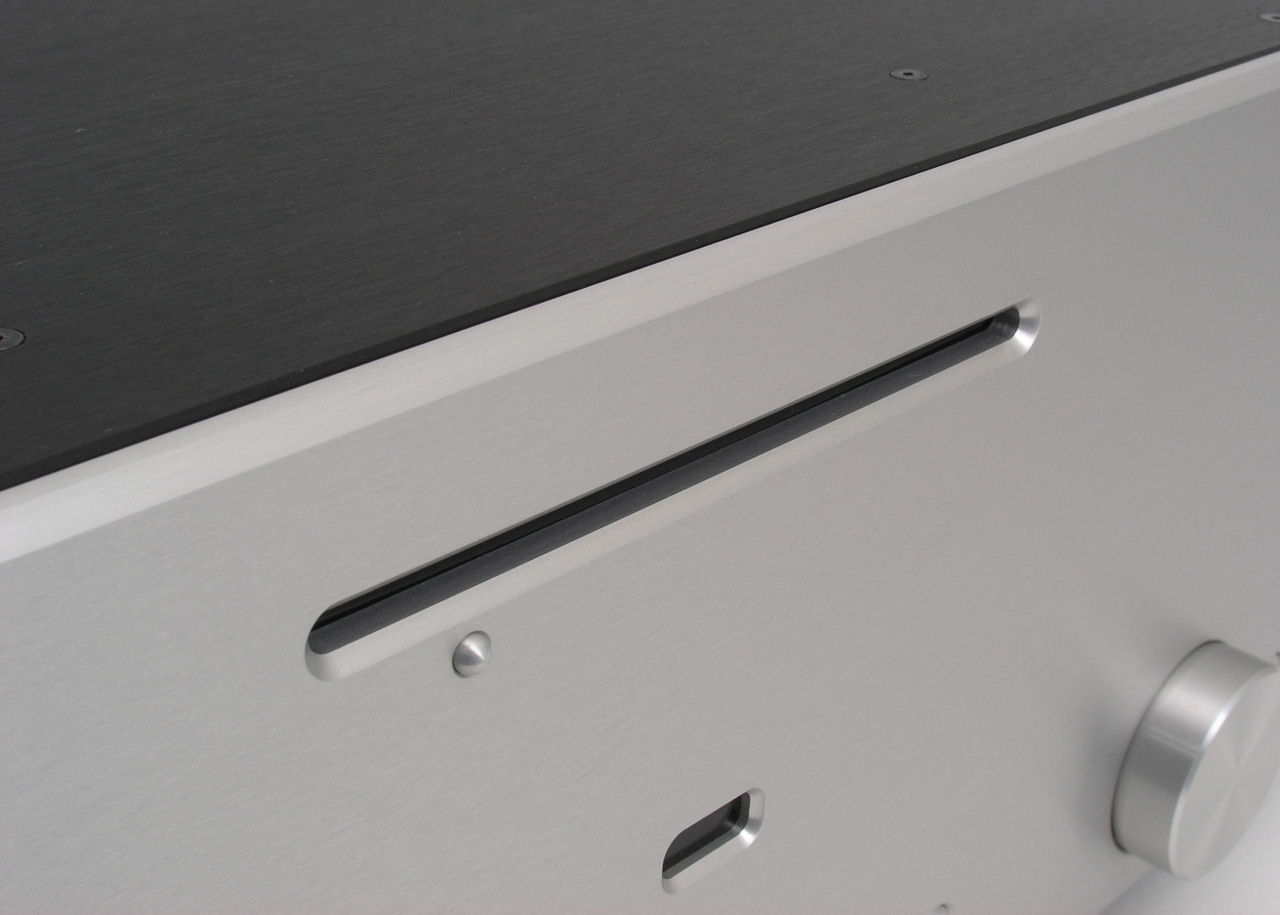

Unsurpassed attention to detail is seen all throughout the case. The workmanship and finish is second to none.

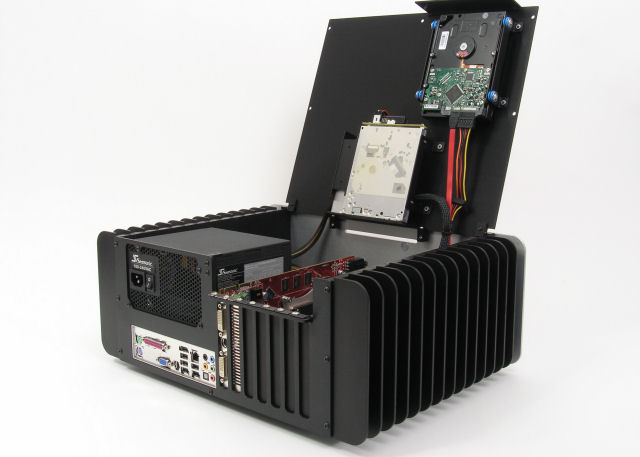

The silent design requires no case fans. The heavy-duty case forms one large heatsink. Heat produced inside the case is conducted into the large finned aluminum side panels and dissipated into the surrounding air. Hinged top panel allows for fast and easy access to inside of case. Just lift the cover and all major components are within easy reach.

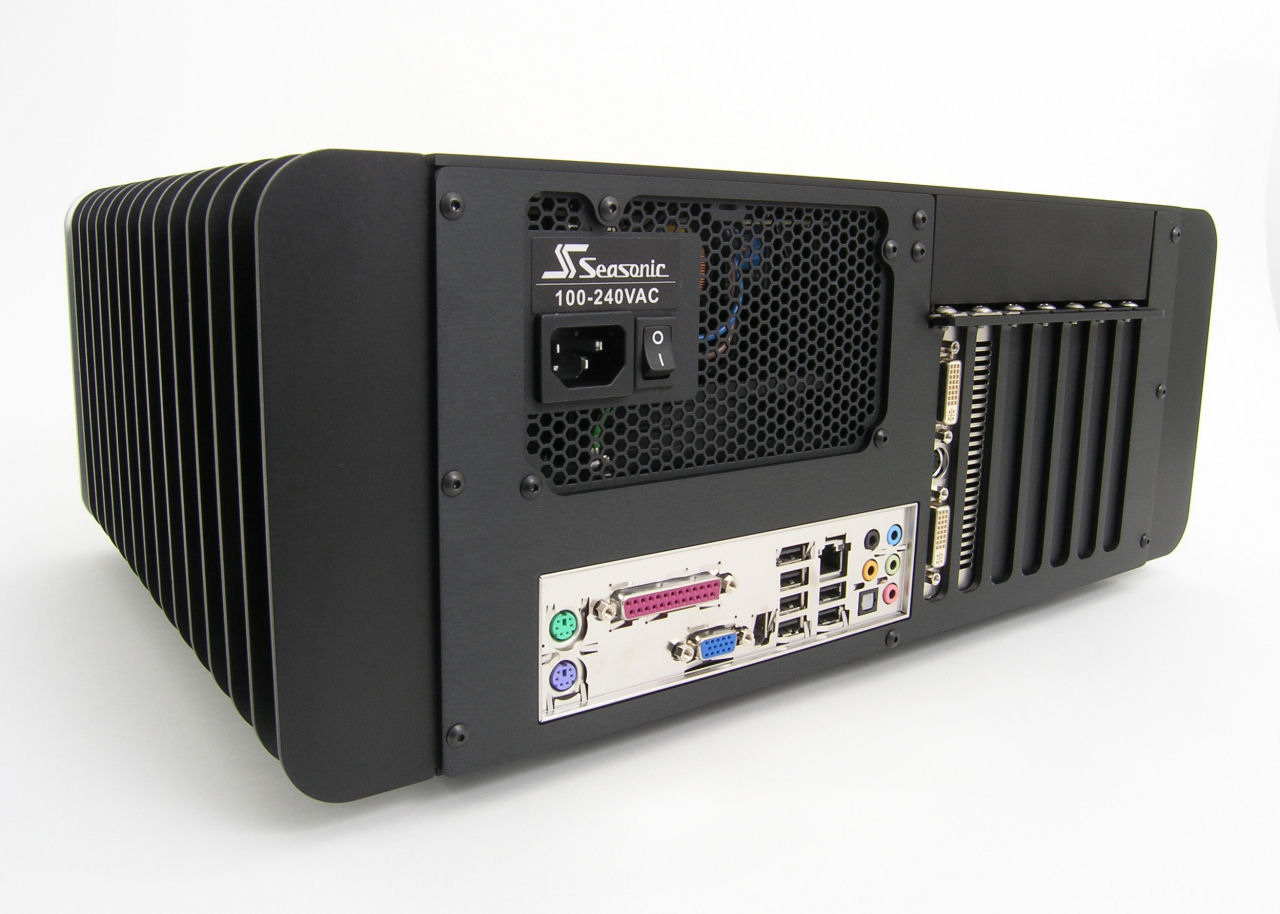

Internally, the computer components are well laid out for equal heat distribution and easy servicing. Designed to fit a standard ATX power supply, ATX motherboard, and PCIe video card.

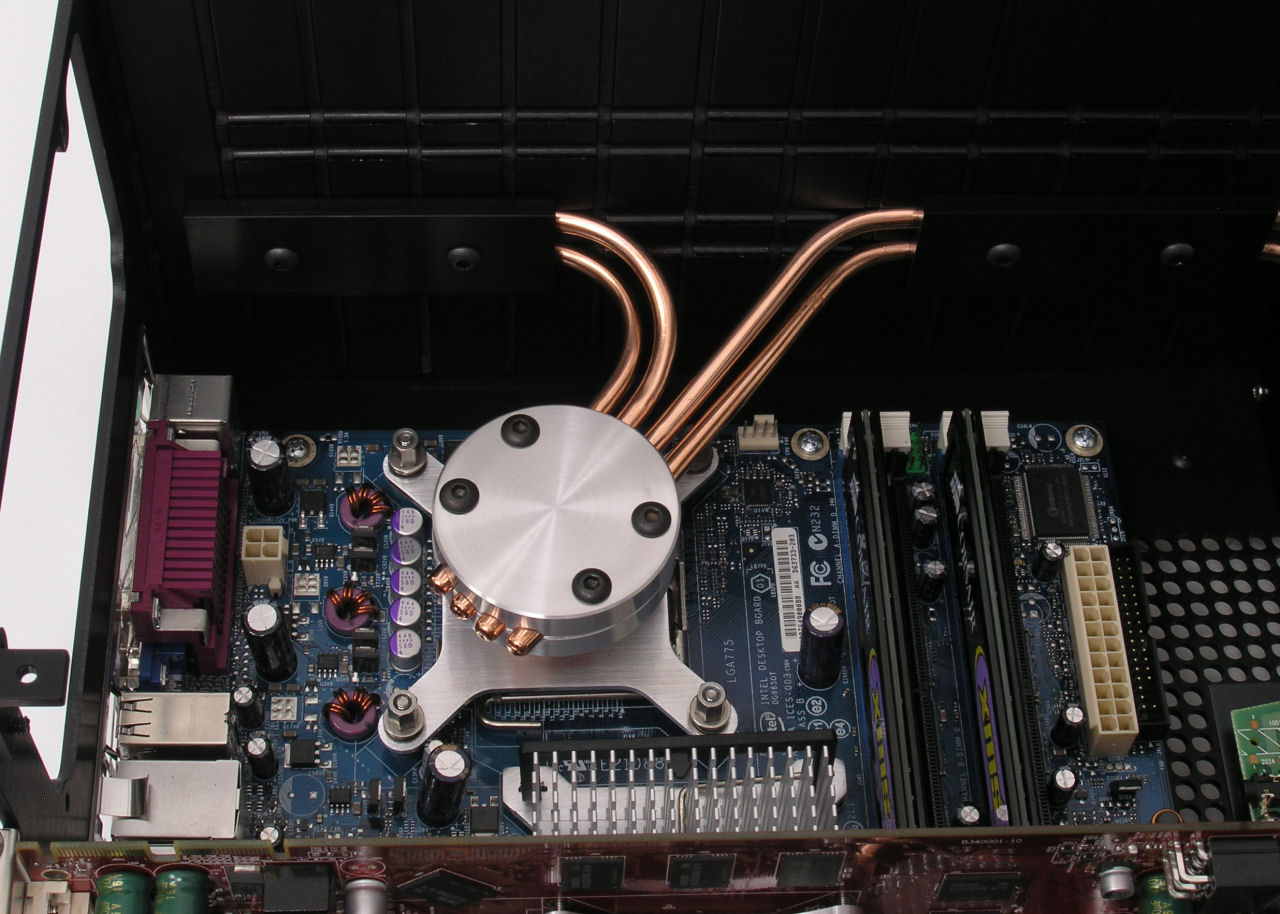

Highly efficient HeatSync CPU cooling system transfers heat directly into chassis. No fans are required to cool the processor.

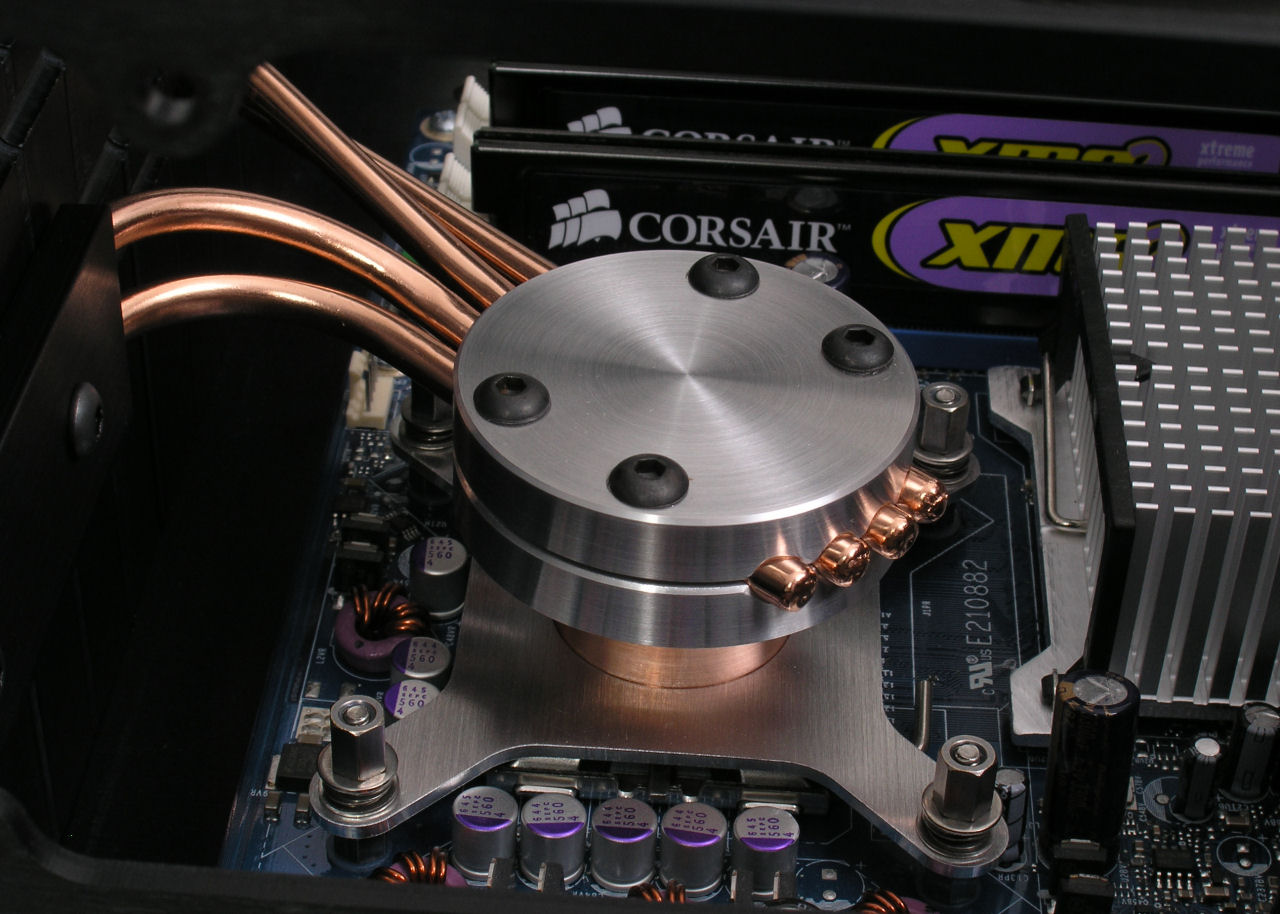

The HeatSync base is precision machined from solid copper for super-efficient heat transfer. Four large copper heatpipes conduct heat away from the processor.



A HeatSync cooling system is also used to cool the video card processor.



Extreme version of our HeatSync cooling system is available with our "Complete System" packages.

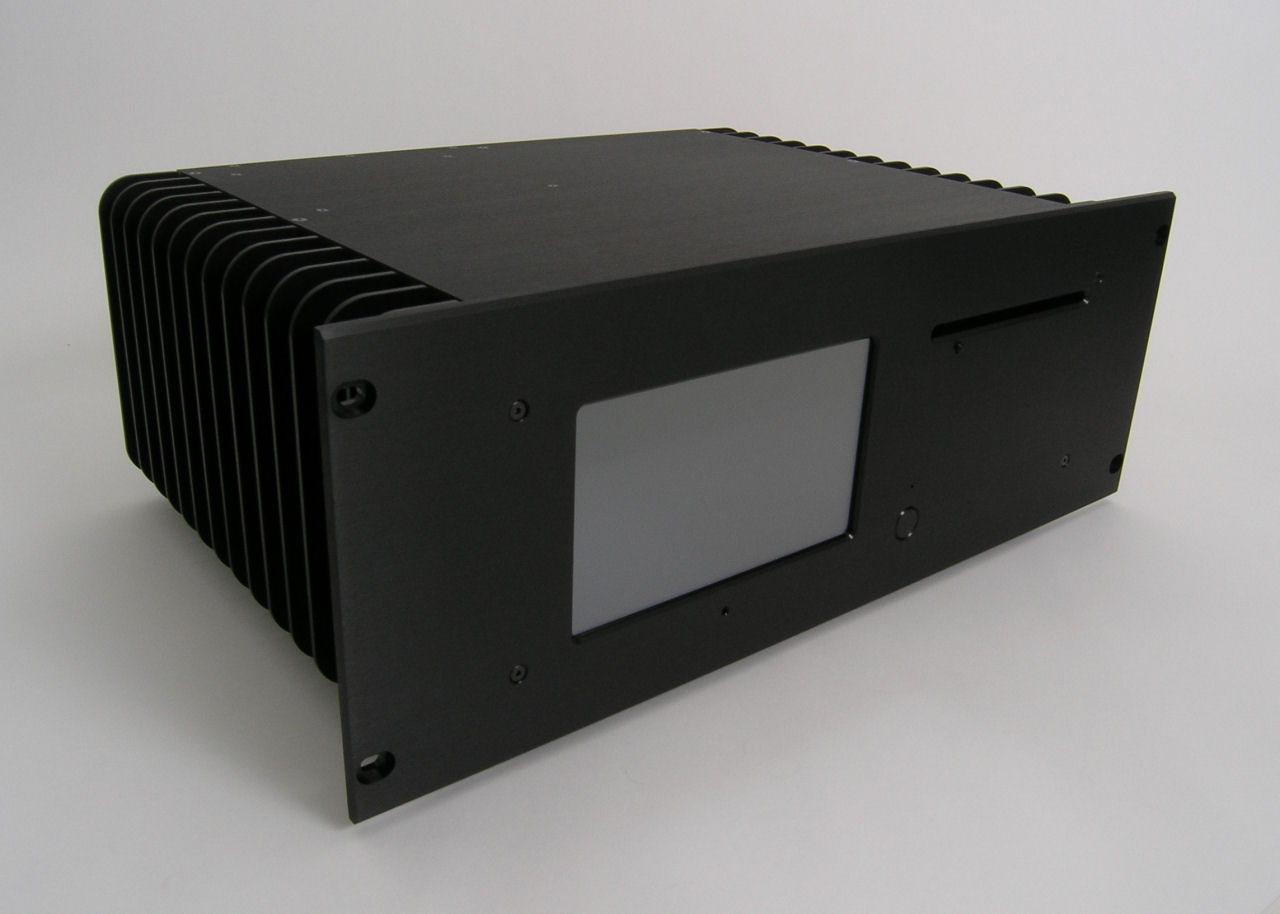

A HeatSync 7000 case has many options to choose from. Shown above is our 4U rack mount faceplate with touch screen in black for that elegant industrial look.

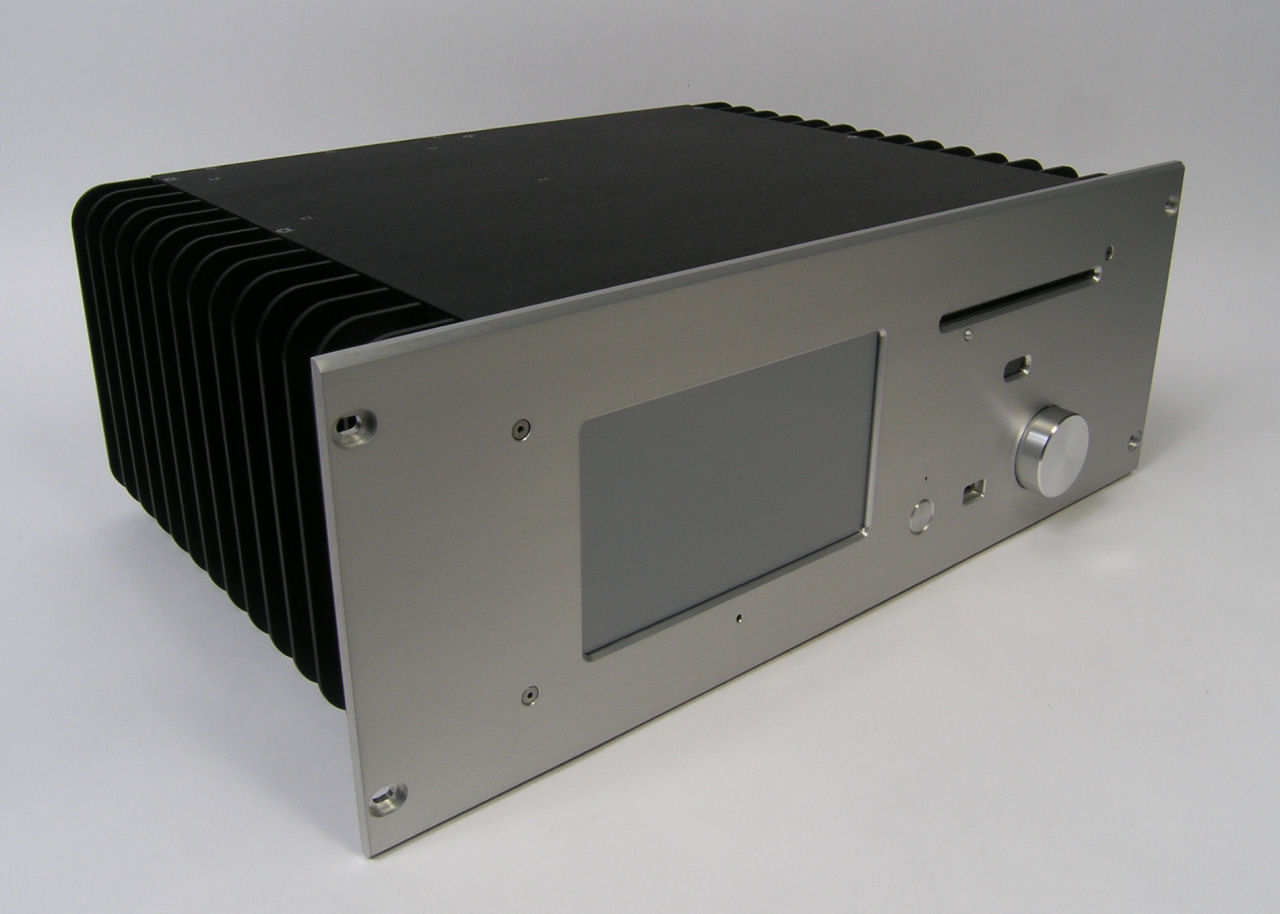

Custom design your own case selecting from a long list of standard options. Shown above is our 4U rack mount faceplate in silver with Touch Screen, PowerMate knob, Infrared receiver, and USB port. You can combine any option to create a case designed especially for your needs.



See the Case Order Form for more pictures and information

NOTE: The HeatSync 7000 is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!
