Detailed Information
  • 100% Made in the USA

  • Low Profile High Performance Computer Case
  • Passively Cooled Design - No Noise!
  • Precision CNC machined from heat-treated aircraft quality billet aluminum
  • Heavy-duty aluminum Heatsink Case absorbs and disperses system heat
  • Modular heatsink system increases performance and functionality

  • Large aluminum fins optimize natural convection cooling
  • Highly efficient HeatSync CPU cooling system transfers heat directly into chassis
  • Integrated HeatSync GPU video card cooling system (optional)
  • Proprietary High-Mass Drive Isolation System eliminates noise from drive vibrations
  • Fanless External AC power adapter (optional)
  • Fanless internal high efficiency DC-DC converter (optional)
  • Holds up to one 3.5" or three 2.5" HDD's
  • Standard slim-line slot-loading optical drive mounting
  • Designed for mini-ITX motherboards only
  • PCI or PCI-E adapter slot for tuner card or RAID adapter
  • Faceplate available with either black or silver anodized finish

  • Standard black anodized finish on chassis

  • Outstanding workmanship and finish quality

  • Dimensions - 17-1/2" wide x 13" deep x 2-1/2" high (+ 3/8" with feet)

Options Include:

  • HeatSync Cooling System for processor
  • HeatSync Cooling System for motherboard chipset
  • HeatSync Cooling System for video card
  • VFD display on front panel

  • IR receiver and remote

  • USB 2.0 front panel port

  • Secondary 2.5" HDD mounting for system SSD

  • 2U one-piece rack mount faceplate

  • Billet aluminum case feet

 Click each picture for higher resolution!  (turn off image resizing for best quality)

Hand-crafted 100% in the USA from the finest materials and manufacturing processes available. Every part is precision machined from thick aluminum billet for not only outstanding looks, but to increase the cooling capabilities by dispersing heat throughout the entire case.



Unsurpassed attention to detail is seen all throughout the case. Each part is carefully designed for form and function, creating a beautiful entertainment PC enclosure that is at home even next to the finest audiophile components.

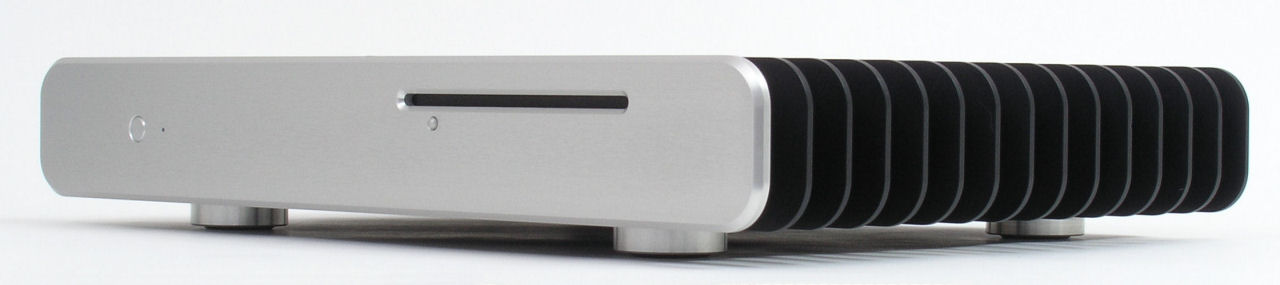

The HeatSync 2500 Mini-Client allows you to pack a powerful system into a small, low-profile package.

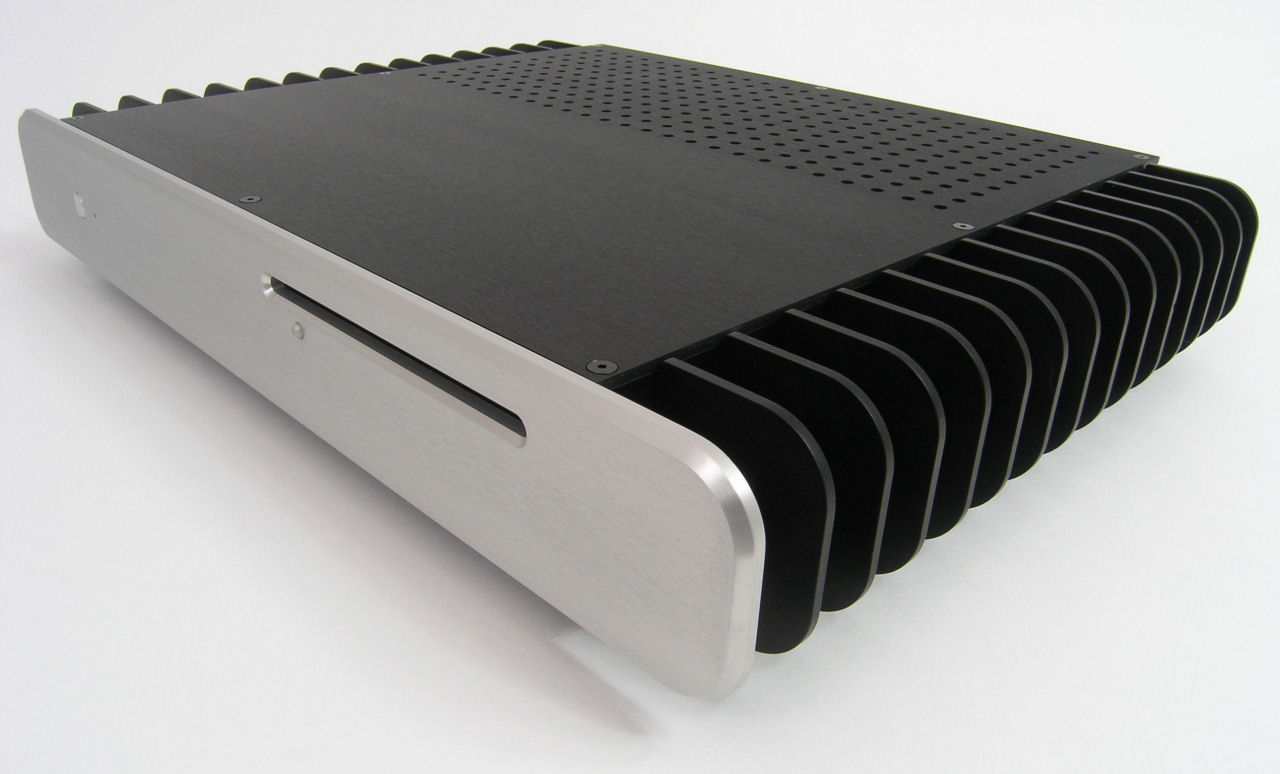

Completely fanless, the massive heatsinks dissipate system heat and provide a foundation for a truly silent computer system.

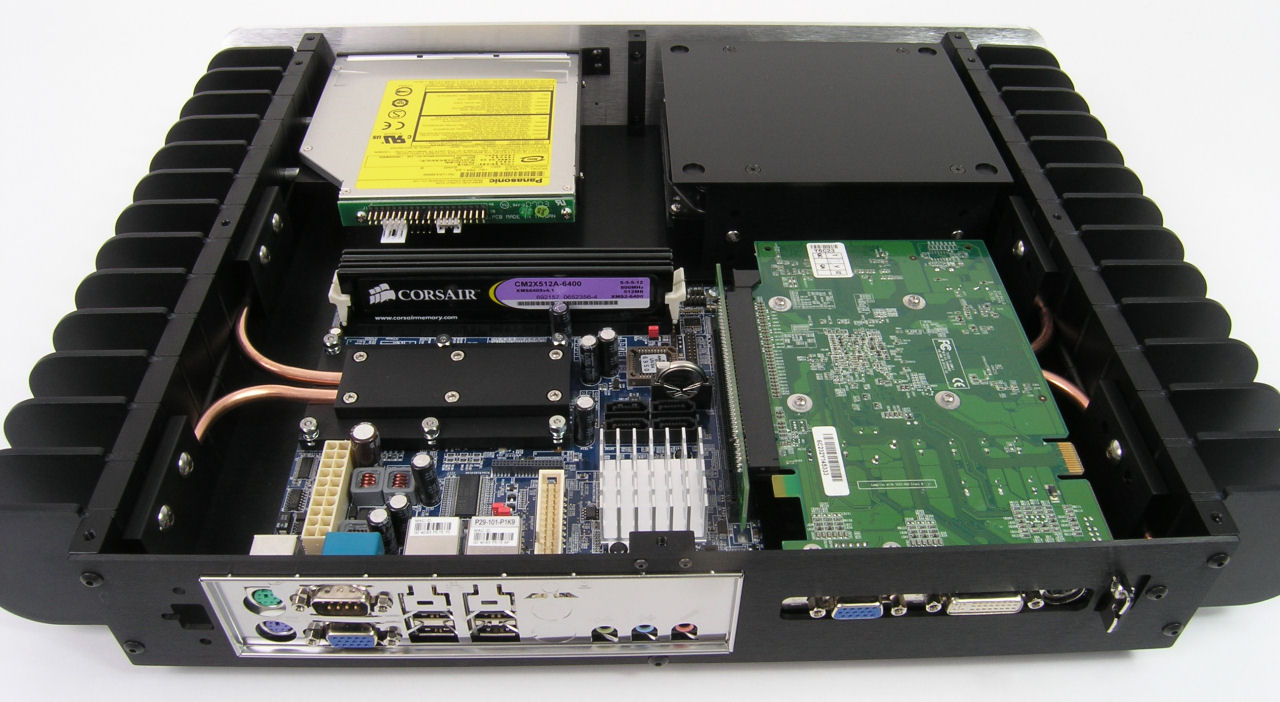

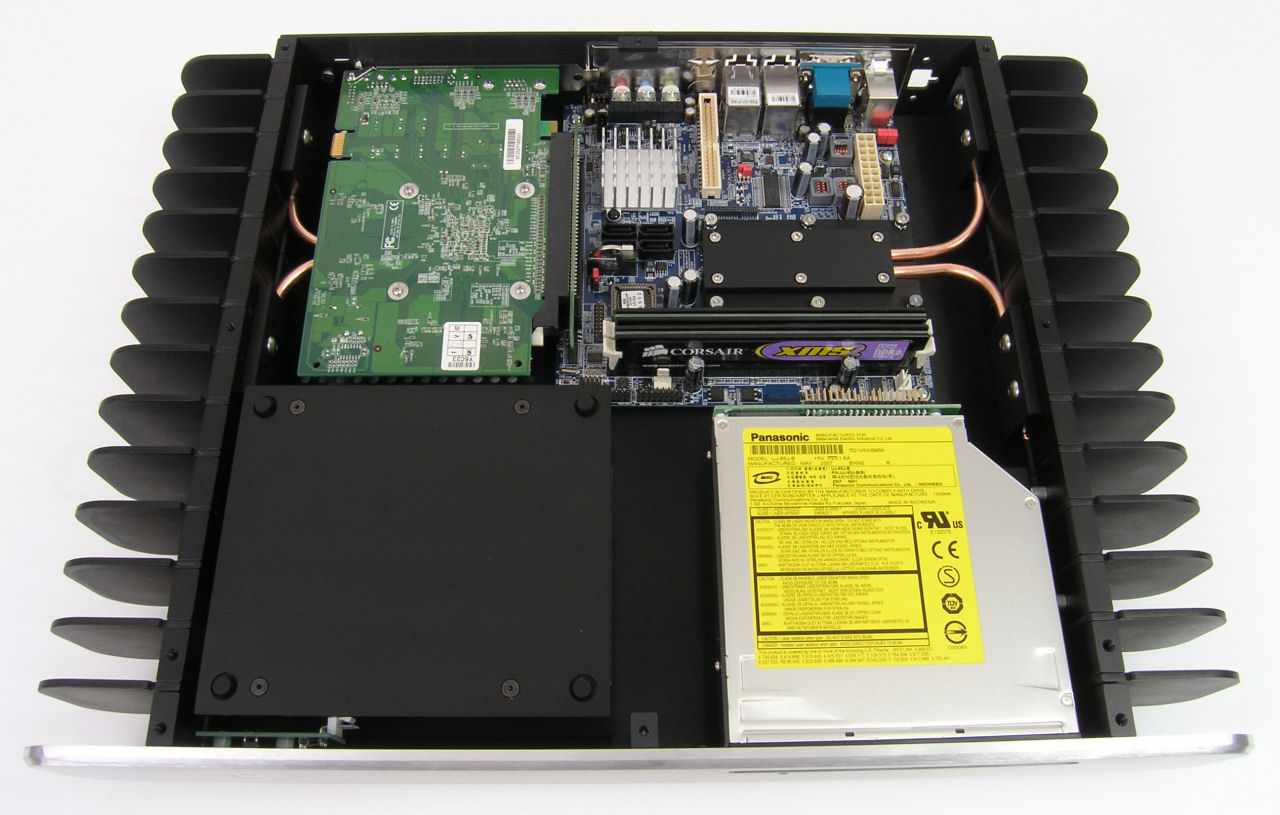

Internally, the computer components are well laid out for equal heat distribution and easy servicing. The HeatSync 2500 Mini-Client will fit a number motherboards and video cards allowing you to build a system that is just right for your specific needs.



The simple back panel allows for quick and easy connection to your external components. An optional Multilane port can also be added for expanding your storage capacity.



For quiet and cool operation of the hard drive, we designed a mini version of the same isolation system used in our other Mass Storage cases. The drive module floats on specially designed isolation pads eliminating noise from vibration. Holds one 3.5" or three 2.5" drives.

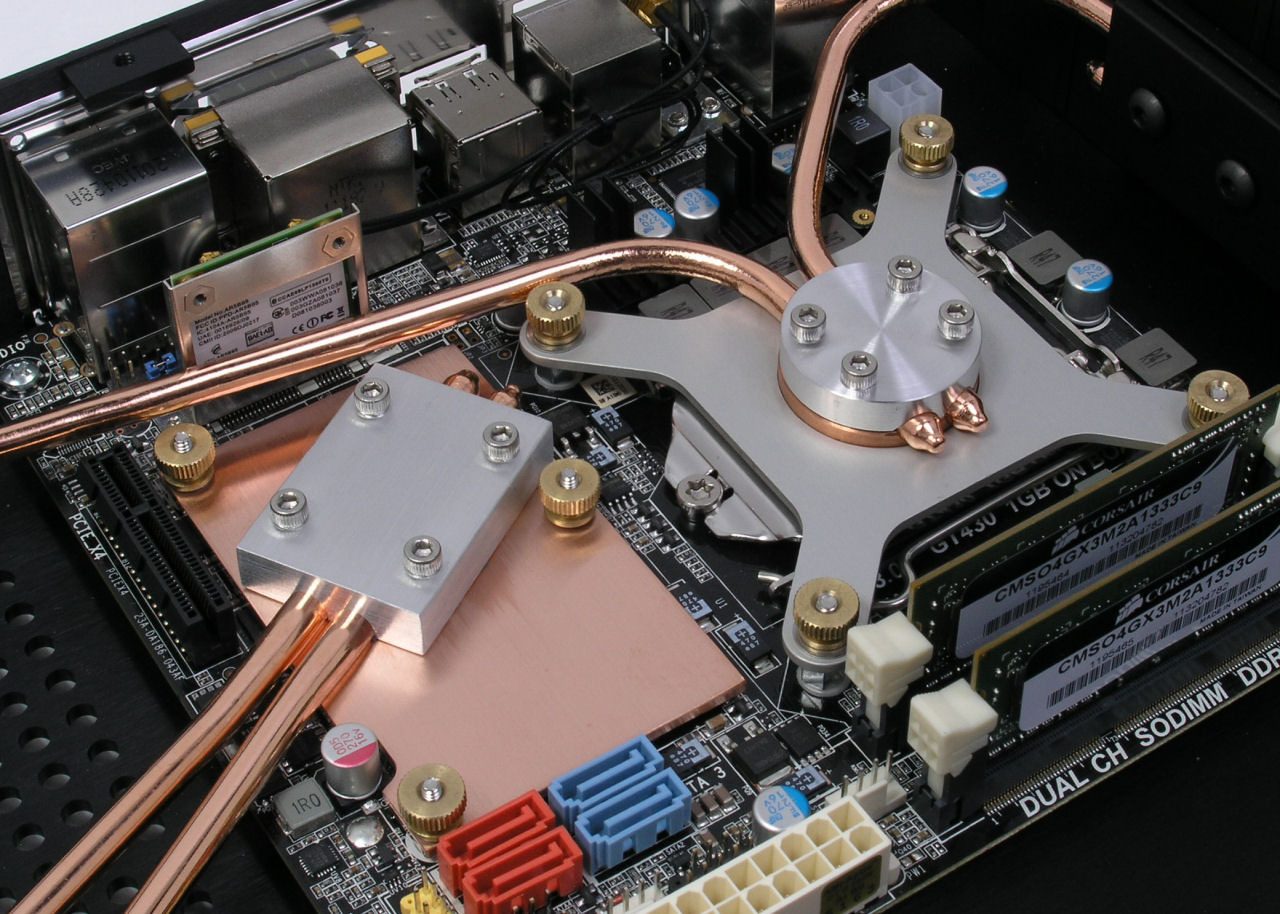

Highly efficient HeatSync CPU cooling system transfers heat directly into chassis. No fans are required to cool the processor or chipset.

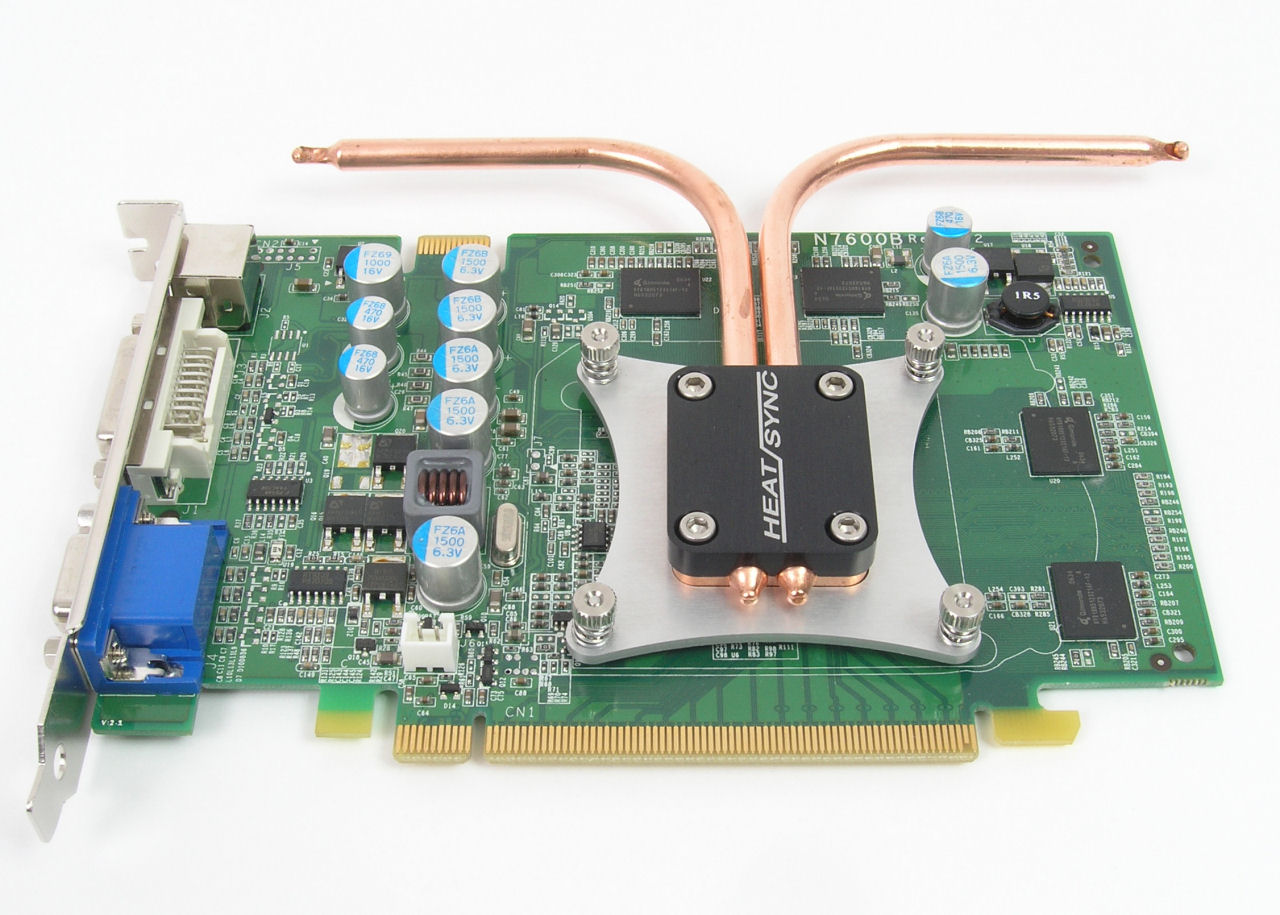

Optional graphics processor and motherboard chipset HeatSync cooling systems.



See the Case Order Form for more pictures and ordering information

NOTE: The HeatSync 2500 Mini-Client is also available as a complete, fully assembled and ready to run system, see Complete Systems for details. If you feel assembling this case looks more difficult than you care to handle, save time and let the experts at A-Tech Fabrication assemble it for you!
