Power Supply Products

150 Watt DC-DC Power Converter

150 Watt DC-DC Power Converter

The picoPSU-150-XT is a compact high efficiency DC-DC converter that plugs directly into a 24-pin ATX MB connector. It features a built-in P4 power cable for the motherboard and a 4-pin Molex and SATA power connector for drives and accessories.
  • Over 96% efficiency
  • 24 pin ATX connector
  • 12 volts DC input
  • 150 watts output
  • 8A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V
  • MTBF = 100,000 hours at 55C deg.
$49.50 each

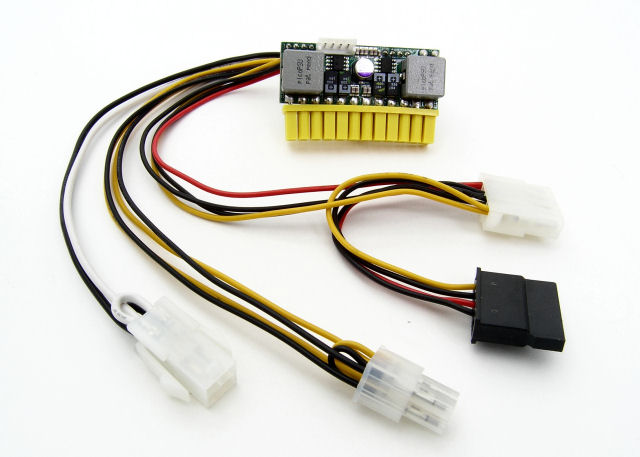

160 Watt DC-DC Power Converter

160 Watt DC-DC Power Converter

The picoPSU-160-XT is a compact high efficiency DC-DC converter that plugs directly into a 24-pin ATX MB connector. It features a built-in P4 power cable for the motherboard and a 4-pin Molex and SATA power connector for drives and accessories.
  • Over 96% efficiency
  • 24 pin ATX connector
  • 12 volts DC input
  • 160 watts output
  • 8A @ 12V
  • 8A @ 3.3V
  • 8A @ 5V
  • MTBF = 200,000 hours at 75C deg.
$54.50 each
150 Watt 12 Volt AC Power Adapter

150 Watt 12 Volt AC Power Adapter

Adapter Cable for DC converter

Fanless AC-DC power adapter. No overload fan or vent slots in sealed housing. 150 Watts output is the perfect match for the 150 watt DC-DC converter.
  • 100-240 VAC input
  • 12 Volts Output
  • 12.5 Amps, 150 watts output
  • 160 watt peak
  • 4 pin mini-din jack connector
  • Adapter cable for DC converter included







$49.50 each

PS XT Extension Cable

PS with Extension Cable installed

This cable is used to add extra drive power connectors to the DC-DC Power Converter above. One end has a special connector to fit the extra header on the power supply, the other end has a standard SATA power connector and 4-pin Molex power connector.















$3.00

200 Watt 6-pin P4 DC-DC Power Converter

200 Watt 6-pin P4 DC-DC Power Converter



Internal 200 watt DC-DC power converter provides power to the system. Use this power converter when installing the DG45FC motherboard or other MB's with a P4 connector. Features extended four wire 6-pin power input cable and 12 volt 4-pin P4 power output cable. Limited to 120w output when using the High Performance 12 Volt AC Power Adapter below.

The benefits of using this power converter is that the power supply mounted on the side of the MB instead of right next to the memory chips where heat can build up. It also runs cooler and has a built-in P4 cable.

Note: Power input cable is modified for a 6-pin connector to use with our heavy-duty AC power adapter below.

  • 12 volts input
  • 200 watts output rating
  • 12A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V

$79.95 each

High Performance 12 Volt AC Power Adapter

High Performance 12 Volt AC Power Adapter

High Performance AC power adapter. Totally fanless with no overload fan or vent slots, completely sealed housing. High efficiency design allows adapter to remain cool under load. 15 Amp peak load rating starts up power hungry hard drives.
  • 90 to 264 VAC input
  • 12 Volts Output
  • 120 Watts (rated)
  • 9 Amps Continuous, 15 Amp Peak
  • 6-pin Connector

$115.00 each

120 Watt DC-DC Power Converter

120 Watt DC-DC Power Supply

The picoPSU-120 is the smallest snap-in 12V ATX dc-dc power supply. Plugs directly into a 20-pin ATX MB connector. 120 watts maximum output. 95% efficiency. To operate, an external AC power adapter is required, see below. Use this power supply in the  Mass Storage MS4x Case.
  • 12 volts input
  • 120 watts output
  • 7A @ 12V
  • 6A @ 3.3V
  • 6A @ 5V
  • 5mm x 2.5mm connector

$49.95 each

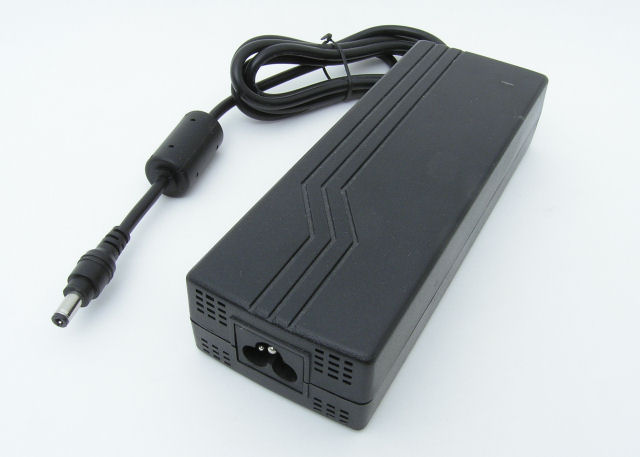

Standard 12 Volt AC Power Adapter

Standard 12 Volt AC Power Adapter

External AC power adapter for use with the 120 watt DC-DC converter above. Use this AC power adapter with the Mass Storage MS4x Case.
  • 100 to 240 VAC input
  • 12 Volts Output
  • 8.5 Amps
  • 5mm x 2.5mm Connector

$44.50 each

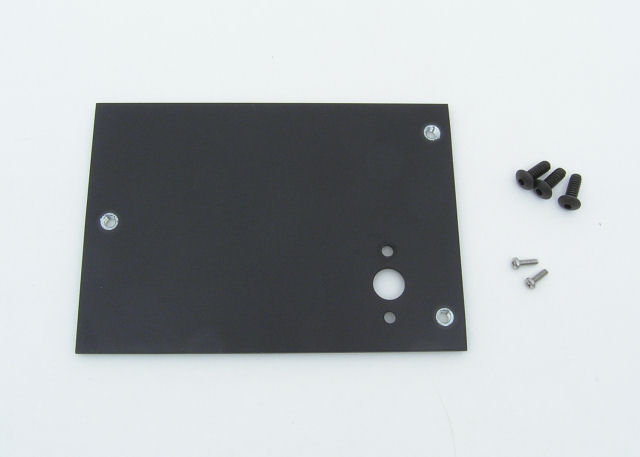

2U External Power Supply Block-off Plate
This block-off plate fits the 2U power supply opening on the rear panel of the 3000 case. It will allow you to run a external low-voltage power supply similar to a notebook computer. The plate features steel threaded inserts and a power socket cut-out.

$15.00
